Spalding 89231CA - Manual (Page 5)

5 11/06 ID# M890031
1.
A

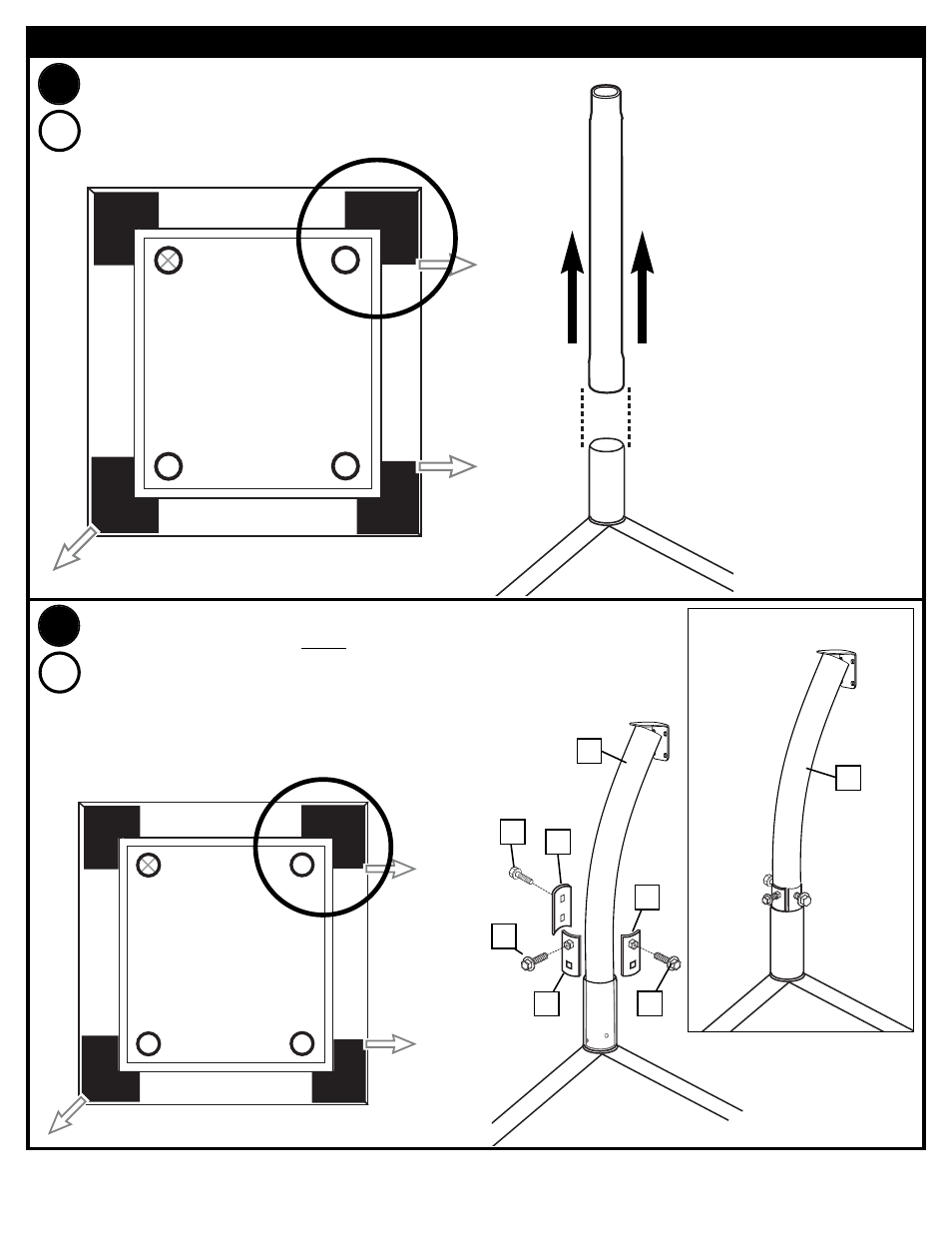

At corner location 3: remove the current 3"
display pole from the mounting stub.
Then, still at corner location 3, slide the 2.75” diameter pole
end of the display pole (24) inside the moiunting stub.
Secure the display pole by sliding the display wedges (12) into
position as shown. To lock the display pole in place,
tighten the hex-bolts (19).
24
24
12
19
12
12
19
19
CORNER
CORNER
4
1
CORNER
CORNER
2
3
CORNER
CORNER
4
1
CORNER
CORNER
2
3
1.
B
Corner Location 3: REPLACE POLE
