11 Installing to the Rack
g
LINE A connectors
Line input connectors for Y/C separate, composite video and
audio signals and their loop-through output connectors.
Press the LINE A button to monitor the signal input through these
connectors.
If you input signals to both Y/C IN and VIDEO IN, the signal
input to the Y/C IN is selected.
Y/C IN/OUT (4-pin mini-DIN)
These are the input/output connectors for a Y/C separate signal.
Connect them to the Y/C separate input/output connectors on
equipment such as a VCR, video camera, or another monitor.
VIDEO IN/OUT (BNC)
These are the input/output connectors for a composite video
signal. Connect them to the composite video input/output
connectors on equipment such as a VCR, video camera, or
another monitor.
AUDIO IN/OUT (phono jack)
These are the input/output jacks for an audio signal. Connect
them to the audio input/output jacks on equipment such as a
VCR.
h
AC IN socket
Connect the supplied AC power cord.

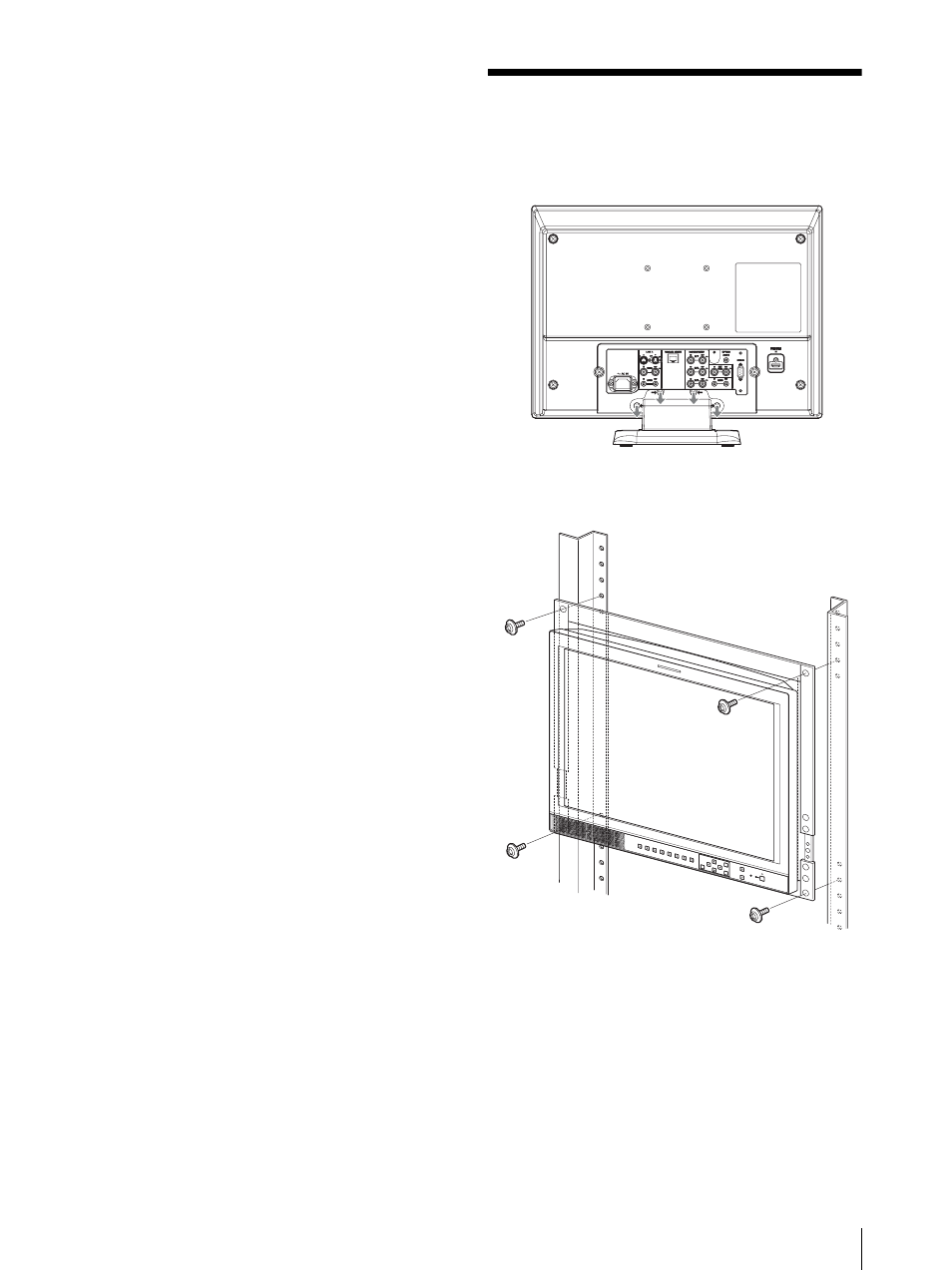

Installing to the Rack
1
Remove the screws (4) to remove the stand.
2
Attach the mounting bracket, then attach the unit to the rack.
LINE A LINE B
SDI
SCAN ASPEC T
RESET MENU
VOLUM E
POWE R KEY INHIBIT
ENTER
RGB/ COMPO NENT EXT SYNC BLUE ONLY
