Step 2: Antenna Hookups
Joining the tuner

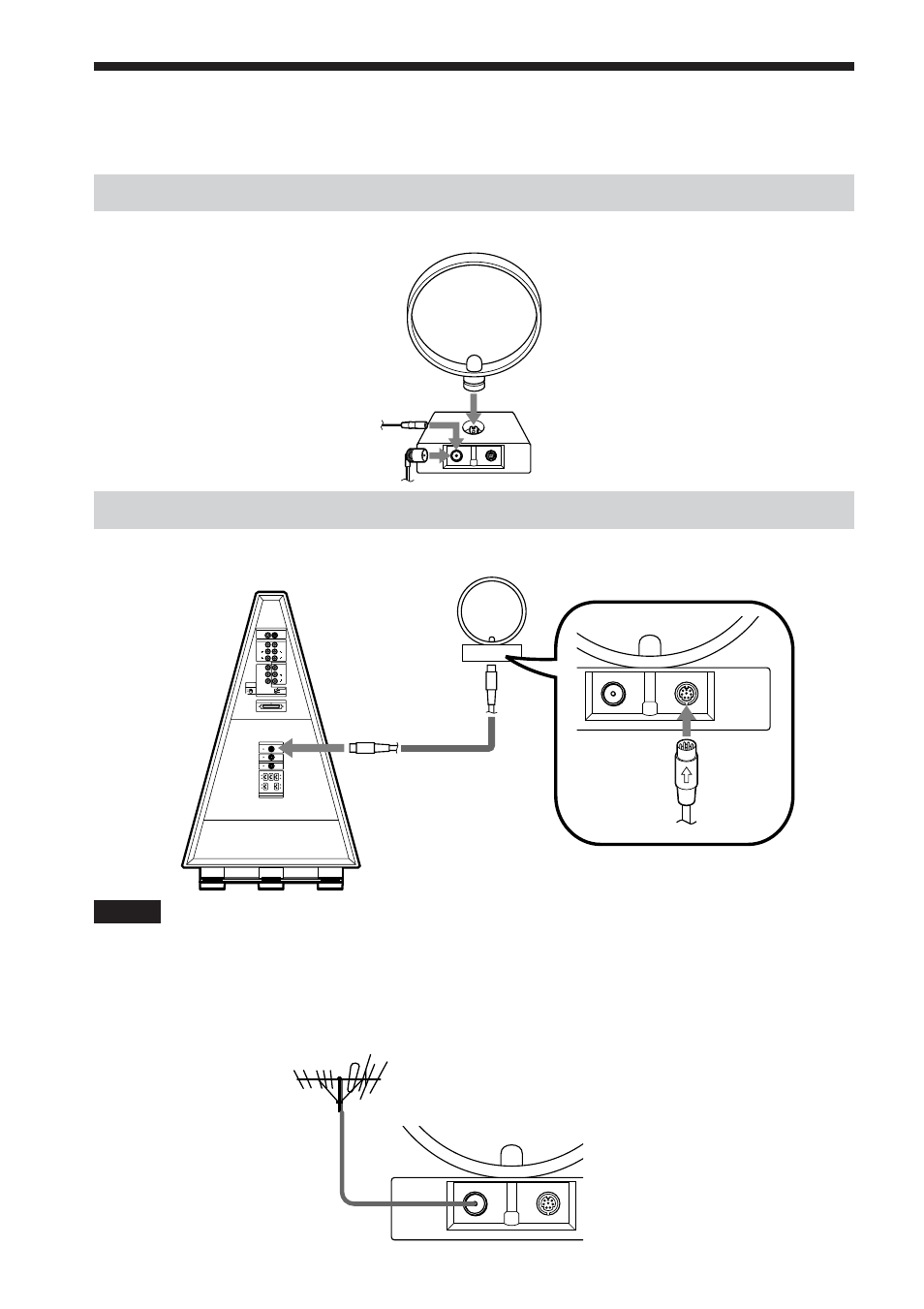

Attach the AM loop antenna and the FM wire antenna to the tuner box.
Connecting the tuner
Connect the tuner to the subwoofer using the supplied tuner cord.
Notes
• To prevent noise pickup, keep the tuner away from the subwoofer and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
z If you have poor FM reception
Use a 75-ohms coaxial cable (not supplied) to connect the system to an outdoor FM antenna as shown below.
Tuner
Tuner cord
Outdoor FM antenna
Tuner
AM loop
antenna
FM wire antenna
North American
model
Other models
