Multi Room Audio Amplifier
Installation Instructions
10

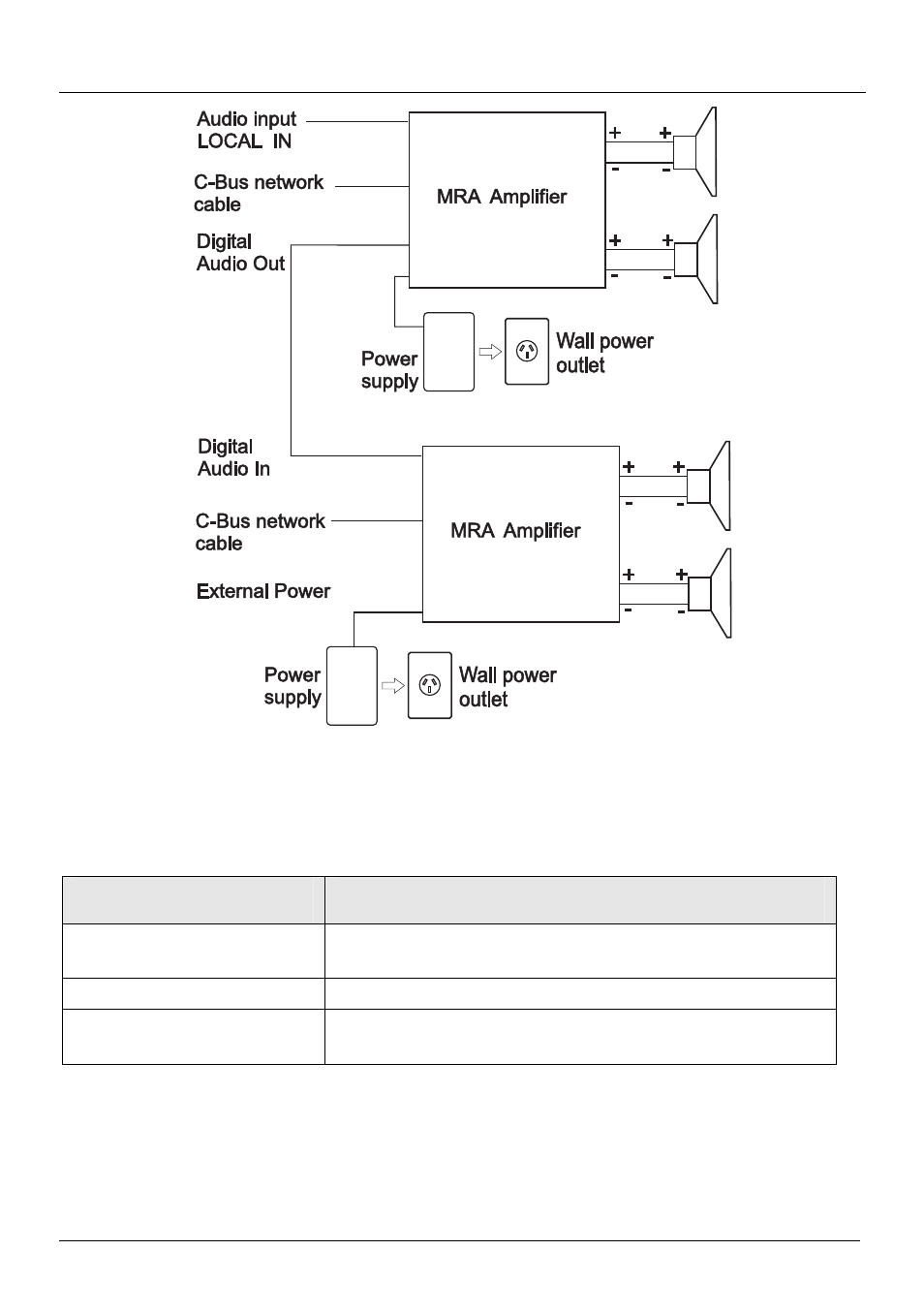

Figure 2. Two amplifiers connected to a single audio source.
Note for Figure 2. You can continue to connect Digital Audio cables to additional amplifiers.
The analogue input, LOCAL IN, is connected to the first amplifier.
Clipsal offers the following cable and connectors:
Catalogue Number
Description
5005C305B (solid)
5005C305BST (stranded)
C-Bus network cable, Cat.5e, 4 pair, UTP cable, colour:
Pink
RJ88P
Modular plug, 8 way, Category 5e
2SPK2C105
2SPK2C259
Speaker cable, 105 strands, equiv to 1.5 mm²
Speaker cable, 259 strands, equiv to 3.0 mm²
Table 4. Cables and connectors
