SUPER MICRO Computer X6QTE+ - Manual (Page 48)

2-26
X6QT8/X6QTE+ User's Manual

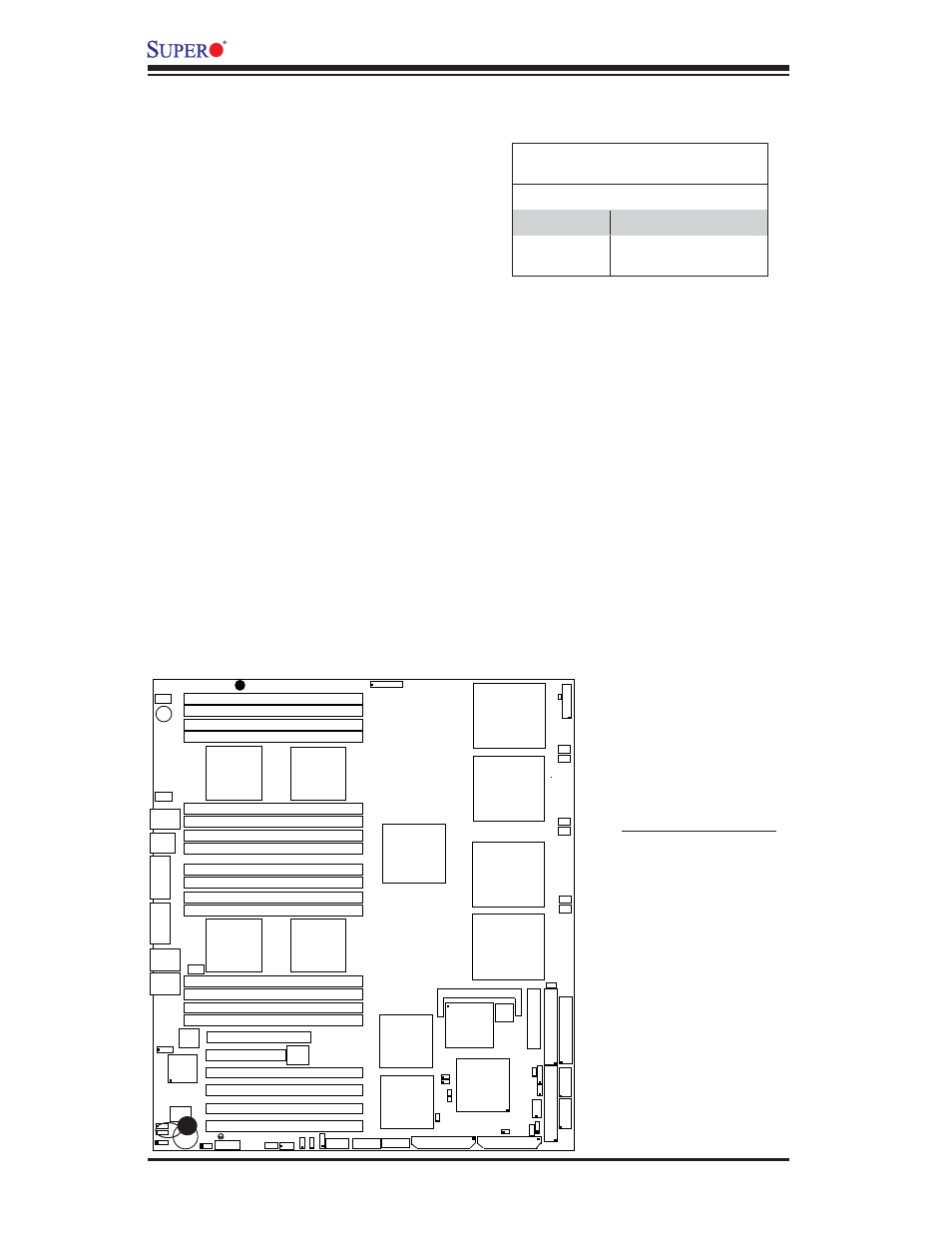

DIMM A6
DIMM B6
DIMM B2
DIMM A2
DIMM B5
DIMM A5
JRB1
24-Pin ATX PW
R
CPU 4
CPU 3
COM2
ICH5R
JPL1
JP13
Slot 5 PCI-Ex4(in x8 Slot)
Battery JPG1 SCSI Channel A I-SATA1
IPMI
IDE #2
Fan1
VGA
CTRL
USB2/3
KB/
Mouse
USB0/1
COM1
VGA
(South Bridge)
DIMM B1
DIMM A1
X6QT8 ® S UPER
WOL1 I-SATA2
Fan2
GLAN2
DIMM B8
DIMM A8
DIMM B7
DIMM A7
Fan7
Fan8
GLAN1
DIMM A3
DIMM B3
DIMM A4
Fan9
GLAN
CTRL
Slot 6 PCI-Ex8(inx16 slot)
BIOS
Slot 4 PCI-X 133MHz
Slot 3 PCI-X 133MHz
Slot 2 PCI-X 133MHz
Slot 1 PCI-X 100MHz (*: ZCR/Green Slot: X6QT8)
S I/O
J3P1
JAR1
SMB JL1 WOR1
SCSI Channel B
IDE #1
PSSMB
WD1
Fan3
Fan4
CPU 2
CPU 1
Fan6
Fan5
LE1
JD1
UXMB1 UXMB2
UXMB3
DA1
DA2
J27
JPA1
8-Pin PW
8-Pin PW
UXMB4
E8501
(North Bridge)
PXH
PXH
SCSI
AIC7902W
DIMM B4
JPA2
JWF1
Floppy
JOH1
JPA3 JBT1
JWF2
SPKR
CPLD
JFSB1
JTAG
FP CTRL
A. 3rd PWR Fail Detect
A
3rd PWR Supply PWR Failure
Detect (JP13)
This function allows the system to no-
tify you in the event of a power supply
failure. This feature assumes that three
power supply units are installed in the
chassis, with one acting as a backup. If
you only have one or two power supply
units installed, you should disable this
jumper to prevent false alarms.
3rd PWR Supply PWR Fault
Jumper Settings
Jumper Setting Defi nition
Closed Enabled
Open
(*Default) Disabled*
