Sterling Plumbing Designer Pivot Shower Doors 1505D-42 - Manual (Page 2)

1-1/4" (3.2 cm)
1-7/8" (4.8 cm)
A
B
C
C
1-13/16"
(4.6 cm)
1-15/16"
(4.9 cm)
5-1/16"
(12.9 cm)
3-7/8" (9.8 cm)
4-15/16"
(12.5 cm)
1505D-42
1505D-48
Model
42" (106.7 cm) / 36" (91.4 cm)
48" (121.9 cm) / 42" (106.7 cm)
A Width (Max / Min)
65-1/2" (166.4 cm)
65-1/2" (166.4 cm)
B (Height)
24-13/16" (63 cm) / 19-1/2" (49.5 cm)
24-13/16" (63 cm) / 19-1/2" (49.5 cm)
C (Walk Through Max / Min)

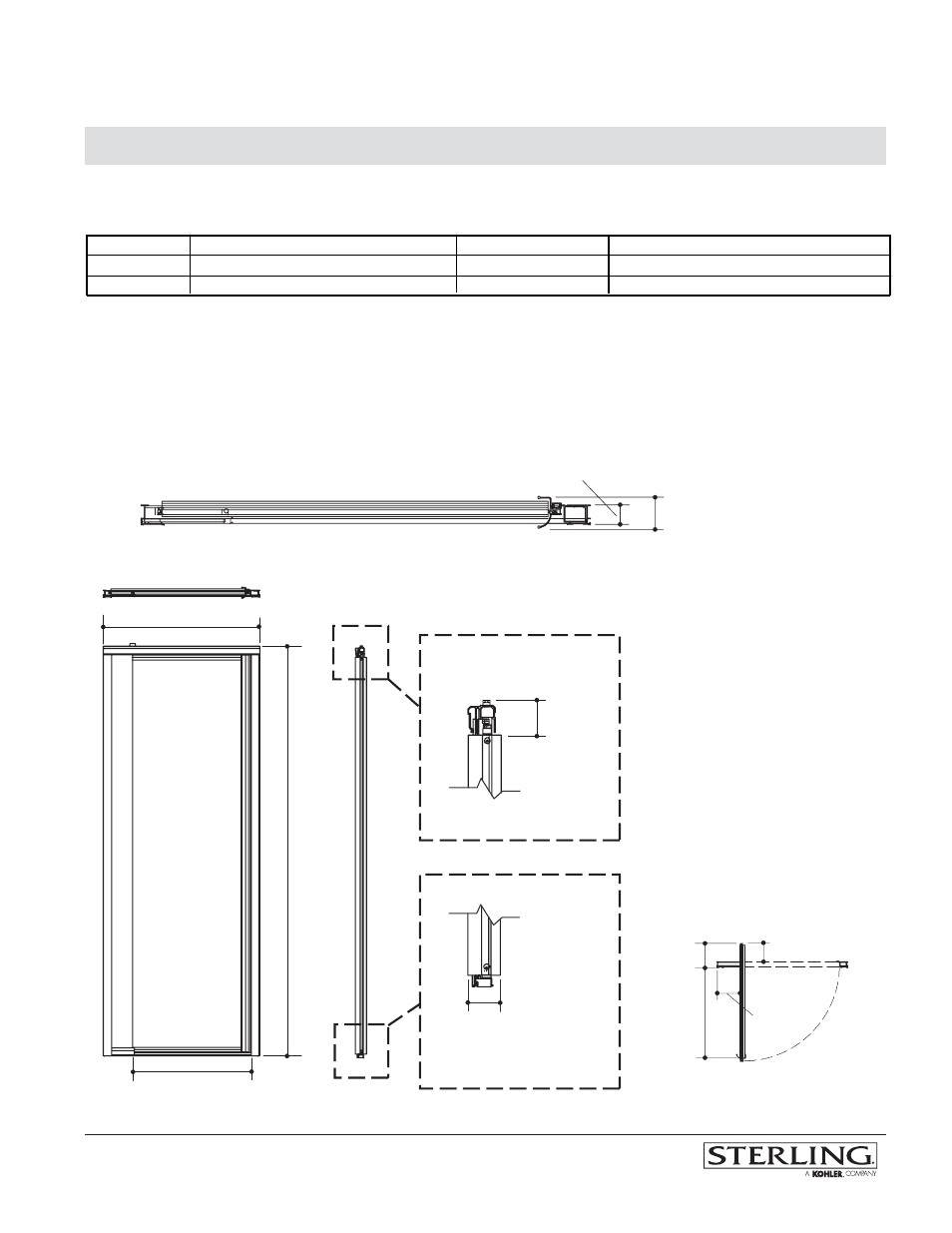

Product Diagram
VISTA PIVOT
TM
II
VISTA PIVOT
TM
II SHOWER DOORS
Page 2 of 2
1060253-4-
C
