1 Serial Number Located in the lower left corner of the bar code. Your cable service
provider may ask for this number if your system requires troubleshooting
in the future. You must know the serial number to join the Explorer eClub
2 IR Connect to optional VCR Commander TM service
3 Video Out Connect to video input of TV or VCR (standard definition)
4 Audio Out Connect to left/right (L/R) audio inputs of a stereo receiver or a TV with
stereo sound
5 Cable Out Connect to cable input of TV or VCR (standard definition)
6 Cable In Connect to coaxial cable coming from the wall
7 Bypass Connect the optional RF Bypass module*
8 AC Switched Connect the AC power cord from another device, such as a TV
Outlet
9 AC Power Input Connect the DHCT to an AC electrical outlet using the cord provided
1 Message Indicator Indicates a message from your cable service provider is waiting when
blinking or illuminated. To access the message, press the Info key.
2 LED Display Displays the selected channel number and time of day
3 Guide Accesses on-screen services, such as the on-screen guide,
video-on-demand, or pay-per-view
4 Info Displays a description of the selected program—available from the
on-screen guide and while viewing a program
5 Bypass Indicator Indicates the optional bypass feature is on when illuminated*
6 Exit Exits menus, on-screen guide, and program information
7 Settings Accesses the Settings menu
8 Smart card slot Allows smart card access*. If you remove the smart card from this slot,
the DHCT will not work correctly
9 (Select) Accesses your on-screen selection
10 CH+ and CH- Scrolls up and down through the channels
11 VOL+ and VOL- Increases and decreases volume
12 Power Provides power to the DHCT. The light above the Power key illuminates
when the power is on. To receive nightly programming updates, keep the
power on
* Contact your cable service provider for more information.

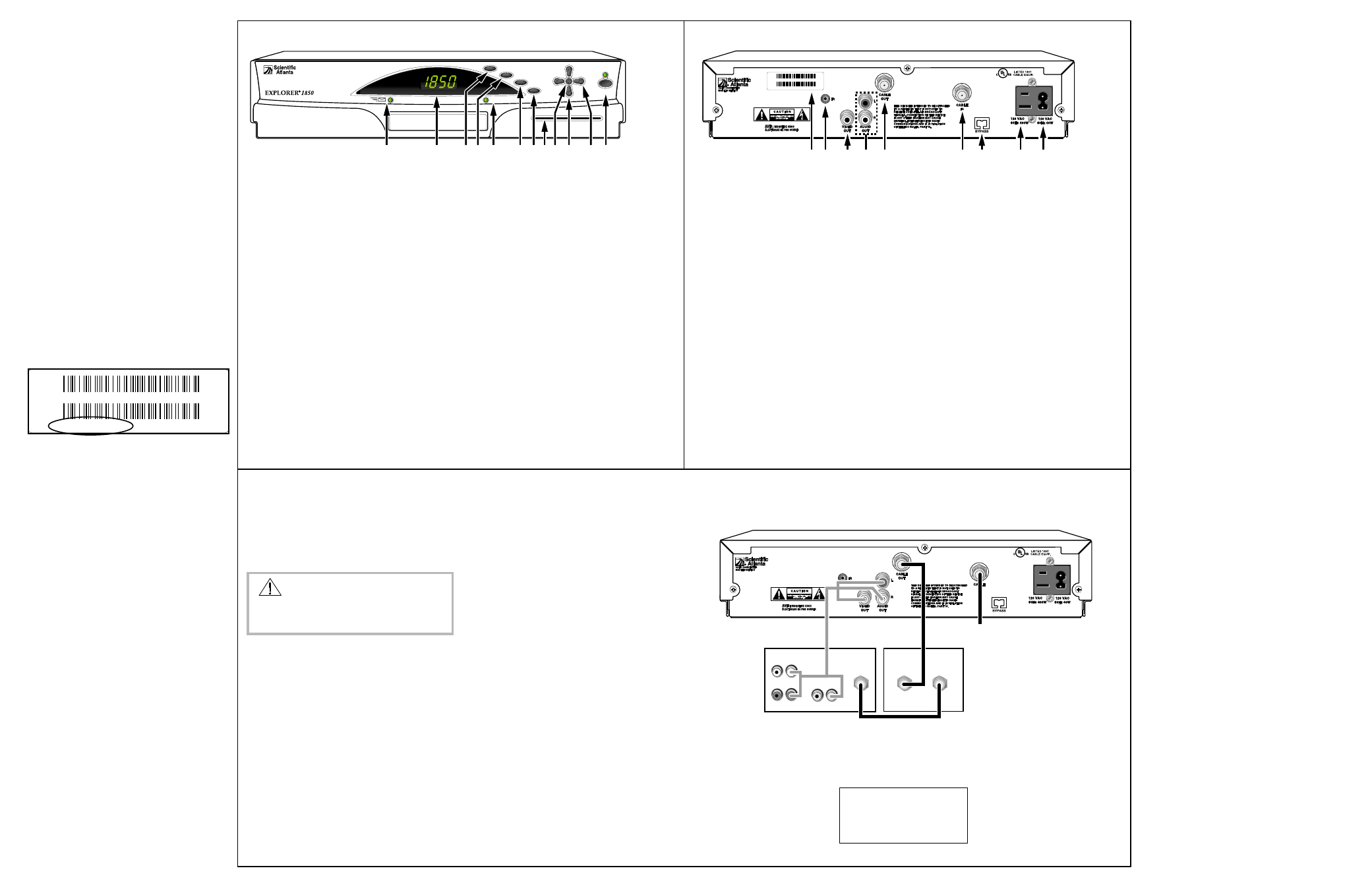

Explorer 1850 DHCT Back Panel
Installing the Explorer 1850 DHCT
Welcome!
Congratulations on adding the Explorer ® 1850
Digital Home Communications Terminal (DHCT)
to your television viewing experience!
The Explorer 1850 DHCT can receive and display
analog and digital signals, as well as provide
exceptional picture quality.
Through the Explorer 1850 DHCT, you can
access interactive services, such as video-on-
demand and pay-per-view programs. Contact
your cable service provider for information about
these and other available services.
Use the instructions in this guide to install the
Explorer 1850 DHCT, to become familiar with the
keys on the front panel, and to access your cable
services. Then, begin enjoying the Explorer 1850
DHCT.
Explorer eClub
To obtain additional information about the
Explorer 1850 DHCT, Scientific-Atlanta invites
you to join the Explorer eClub. This online club
provides news and “what’s up” information about
the Explorer 1850 DHCT and offers you a chance
to win prizes and other premium items.
To join the Explorer eClub, you must know the
serial number of your Explorer 1850 DHCT. The
number is located on the back panel of your
Explorer 1850 DHCT and looks similar to this
example:
Explorer 1850 DHCT Front Panel
Connect the Explorer 1850 DHCT to a Stereo TV and Non-Stereo VCR
1. Unplug all electronic devices before connecting
the DHCT.
2. Connect the DHCT to the TV and VCR as
shown in the diagram.
3. Connect the DHCT to the coaxial cable coming
from the wall.
4. Insert the smart card into the slot provided on
the front panel of the DHCT.
5. Plug the DHCT and the TV into an AC power
source.
Important: Do not press the Power key on the
DHCT yet.
6. Turn on the power to your TV, and set the
input channel assigned by your cable service
provider (channel 3 or 4).
Access Cable Services and Programs
You can access your cable services using the
remote control or the keys on the front panel of
the DHCT. (Refer to your remote control user’s
guide for programming instructions.)
• Press the Guide key to access the on-screen
guide. The on-screen guide displays schedules
of TV programs and other services available
from your cable service provider, such as video-
on-demand and pay-per-view programs.
• Use the arrow keys to highlight a program in
the schedule.
• Press the Info key for a description of a
specific program (either from the on-screen
guide or while viewing a program).
• Press the Select key to view a specific program
in the guide.
For more information, read the user’s guides that
your cable service provider included with the
DHCT installation package. These guides provide
operating instructions for the on-screen guide,
your remote control, and the VCR Commander
TM
service (if available).
Check and Correct
If your DHCT does not perform as expected,
check the following conditions:
• Verify that the power to your TV is turned on.
• Verify that the SmartCard is inserted in the
front slot of the DHCT (if required by your
cable service provider.
• If plugged into a wall switch, verify the switch
is in the ON position.
• Verify that all cables are properly connected.
• Verify that the TV is tuned to the proper
output channel (3 or 4).
If your DHCT does not perform as expected after
checking the power, the cables, and the output
channel, check the following conditions:
No picture
• If your system includes a VCR and/or stereo,
verify that you have properly connected them
to the DHCT.
• Verify that the DHCT power light is on and the
Bypass light is off.
No color
• Verify that the current TV program is broadcast
in color.
• Adjust the TV color controls.
No sound
• If your setup includes a VCR and/or stereo,
verify that you have properly connected them
to the DHCT.
• Verify that the volume is turned up.
• Verify that the Bypass feature is disabled.
The LED on the front panel displays question
marks instead of the channel number.
You may have pressed the Power key before all of
the latest programming updates were received by
the DHCT. Press the INFO key on the remote
control or the front panel of the DHCT to correct
this situation.
The TV screen displays a message indicating
that the DHCT is automatically updating its
software.
Wait for the time to display on the LED before
continuing with the installation process. When the
front panel displays the time, the update is
complete.
Note: If you need further assistance, contact your
cable service provider.
Accessing Programs
Audio Output
Audio output from the CABLE OUT is monaural
(non-stereo).
Audio output from the AUDIO OUT LEFT and
RIGHT is stereo.
Other Types of Connections
If you are connecting the DHCT to a different
type of TV or VCR, or to additional devices,
contact your cable system operator, or access the
Explorer eClub Web site:
www.scientificatlanta.com/explorerclub
The serial number is located in the lower left
corner of the bar code. Write the serial number
here: _______________ .
To access the Explorer eClub Web site type:
www.scientificatlanta.com/explorerclub
Before Installing the Explorer 1850 DHCT
Before you begin to install the Explorer 1850
DHCT:
• Read the IMPORTANT RULES FOR SAFE
OPERATION section of this guide.
• Locate the Explorer 1850 DHCT serial
number, which is on a bar code on the back
panel of the Explorer 1850 DHCT. You will
need this serial number to join the Explorer
Club. Also, if your system requires trouble-
shooting in the future, your cable service
provider may ask for the serial number.
• If you plug the Explorer 1850 DHCT into an
outlet that is controlled by a wall switch,
keep the switch in the ON position. The on-
screen guide is updated nightly. If the wall
switch is in the OFF position, your Explorer
1850 DHCT will not receive the latest
programming updates.
• Keep the top of the Explorer 1850 DHCT free
of all objects and electronic devices, including
your TV.
• It is recommended that you use a surge
protector with your cable equipment and
electronic devices.
WARNING:
Electric shock hazard! Unplug all
electronic devices before connecting or
disconnecting any device cables.
0003B4287797
SABDQXTL N0006246618
Use the connection diagram and follow these
steps to connect the Explorer 1850 DHCT to a
stereo TV and a non-stereo VCR.
POWER
BYPASS
SETTINGS
EXIT
GUIDE
INFO
CHÐ
CH+
VOLÐ VOL+
T10308
1 5 7 8 12 10 2 3 4 11 9 6
7. Wait for the time to appear on the LED
display of the DHCT.
Important: It takes 2 to 3 minutes for the
DHCT to be updated with the latest program-
ming and service information. When the front
panel displays the time, the update is
complete.
8. Press the Power key on the DHCT.
Required Cables
1 Set of Video/Audio Cables
2 (75 ohm) Coaxial Cables
T10580
9 8 7 2 3 4 6 5 1
0003B4287797
SABDQXTL N0006246618
Cable Input
T10579
OUT TO TV IN FROM ANT.
Back
of VCR
CABLE/
ANTENNA
RIGHT
IN OUT
LEFT
AUDIO
IN OUT
VIDEO
IN OUT
Back
of TV
