System Specifications
Digital Video Recorder
Compression Format Standard H.264 Baseline
Video Output Composite 1.0V p-p/75 Ohms,
BNC x 2 S-Video x 1, VGA x 1
Video Input Composite 1.0V p-p/75 Ohms, BNC x 8
Display Resolution 720 x 480 (NTSC)
Record Resolution 352 x 240, 704 x 480 (NTSC)
Display Frame rate 240fps (NTSC)
Global Record Frame rate 120fps, 60fps (NTSC)
Audio Input
-8dB~22k, RCA x 4
Audio Output -8dB~92dB, RCA x 1
Record Mode Manual / Sensor / Timer /
Motion detection
Operation Pentaplex
Network Interface
RJ45 (LAN, Internet)
PTZ Control Yes
Communication Interface RS485, USB2.0 x 2
(front USB for back-up, back
USB for mouse), PS/2 x 1
Hard Disk Pre-installed Seagate 250GB
Remote Control Yes
Power Supply 12 Volts
All trademarks remain properties of their respective owners.

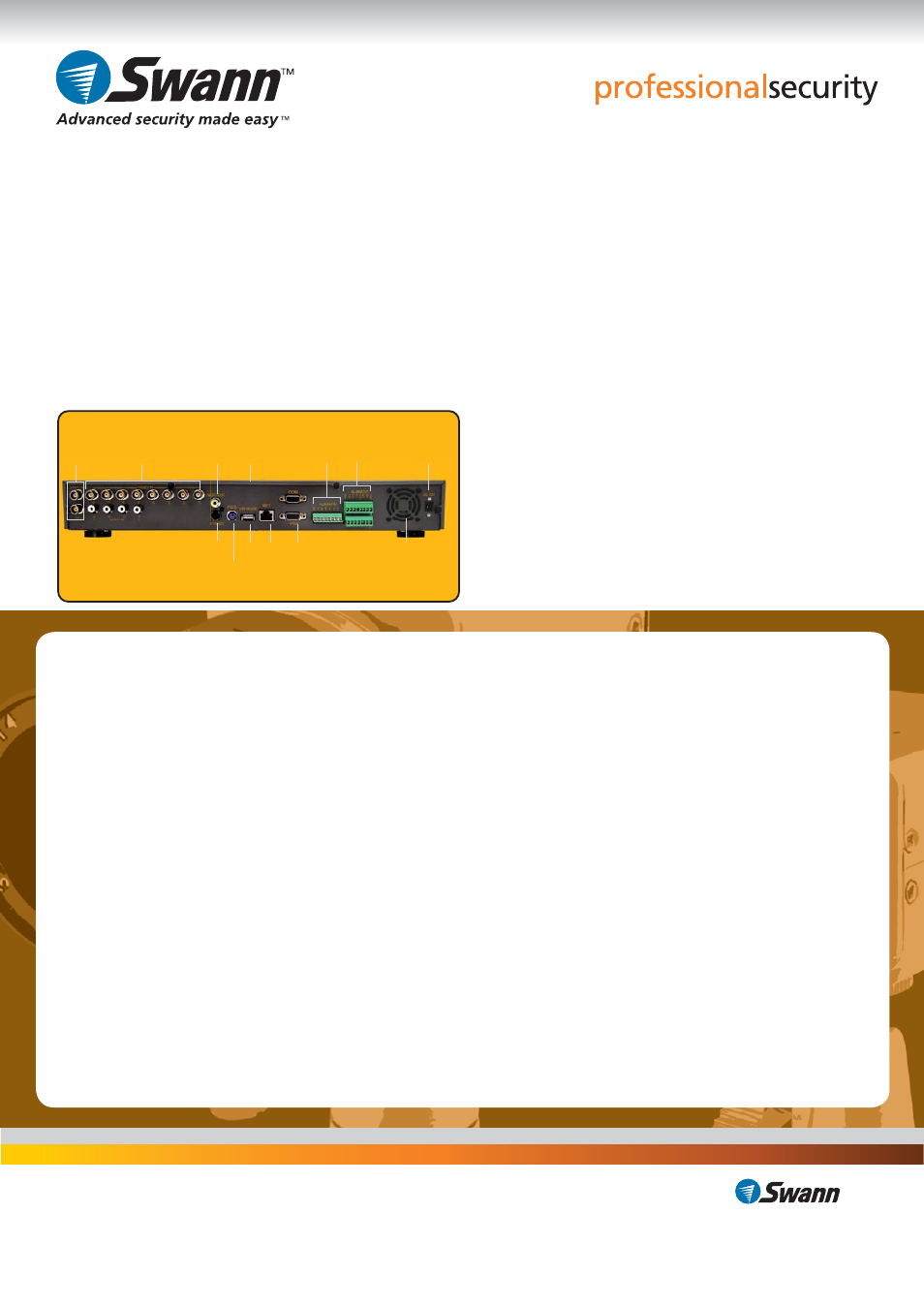

8 Channel
Digital Video Recorder
H.264 Compression
DVR8-8600™
The latest H.264 video compression combined with networking, pentaplex
operation and an array of powerful features for monitoring & recording
DVR8-8600 ™
Video
Output
1-8 Channel
Camera / Video Input
Audio
Output
S Video
Audio
Input
Alarm
Input
Alarm
Output
Power Supply
Input
USB
Mouse
Network
Input
VGA
Output
Cooling Fan
PS/2
Input
Package Contents
all installation hardware included
• DVR8-8600™ 8 Channel Digital Video Recorder
• 250GB Seagate Hard Drive (5 Year Warranty)
• BNC to RCA Adapters x 9
• BNC to RCA Video Cable 3ft (1m)
• Power Adapter
• Remote Control
• Mouse
• User Manual
*Must use Windows Mobile 5, 6, Symbian OS.
Does not support i-Phone & Blackberry.
