Assembly – Smooth Fitness FX60HRO User Manual
Page 12
FX60HRO MOTORIZED TREADMILL
Visit us at: www.evofitness.com
12
ASSEMBLY
STEP 2:
NOTE: YOU WILL NEED THE HELP OF ANOTHER PERSON IN ORDER TO COMPLETE STEP 2 OF THE
ASSEMBLY PROCEDURE.
First remove the M6 x 55 Bolt (132) and 6 x 13mm Washer (133) from Base Frame (34).

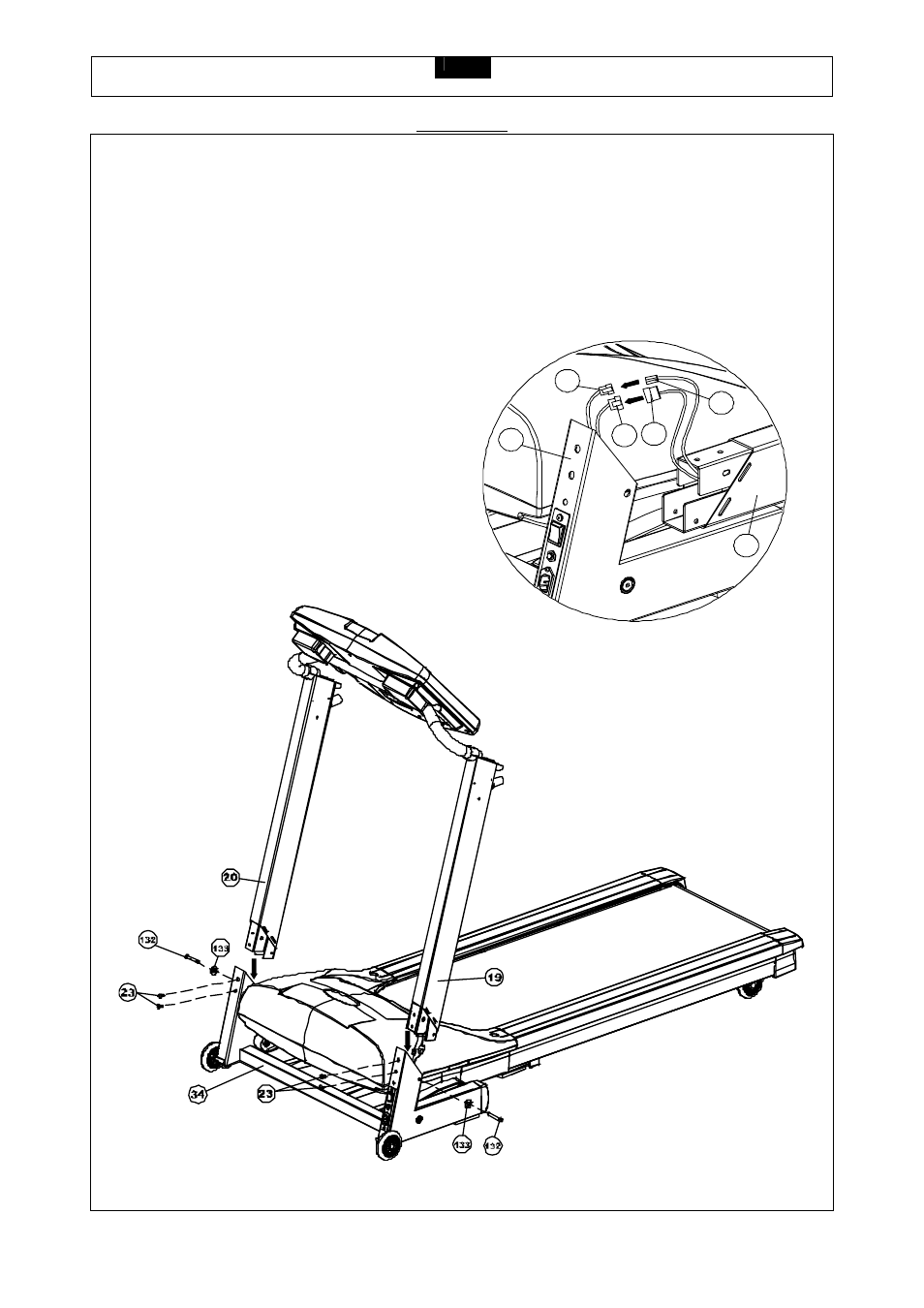

Connect the wires from the Left Upright (19) and Base Frame (34) as FIG.2 shown. Attach the Left Upright (19) and
Right Upright (20) to the Base Frame (34) and secure in place using four M8 x 15 Bolt (23), two M6 x 55mm Bolt
(132) and two 6 x 13mm Washer (133).
FIG.2
34
19
129
128
130
131
