Swisher T1360 - Manual (Page 11)

11
08
01
02
03 05 06 07
08
10
09 11
12

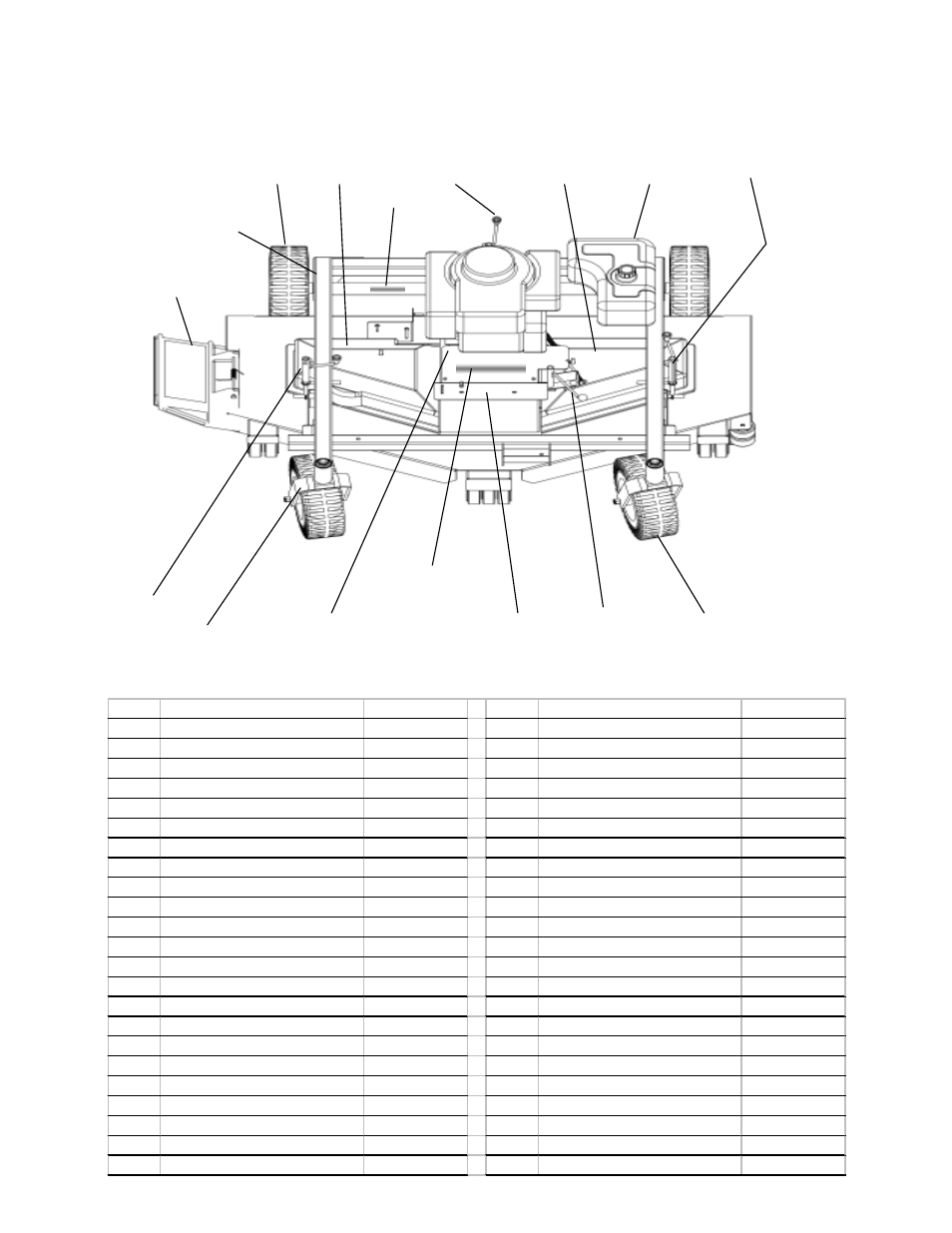

Figure 05
02
04
SERIAL
NUMBER
13
Item # Description Part # Item # Description Part #
1 Grass Chute 6031TK 8 Height Adjust Assembly H7N
Bolt/Nut NB136/NB181 Eye Bolt 6599
Spring CH5S Stabilizer Arm 6696
2 Tire/Wheel/Bearing F4157W Plastic Bushing T2PB
3 Right Belt Guard 6155RN Ruler Decal OD41
Acorn Nut NB120 Knob H7K
4 No Step Decal OD11 5/16 Pal Nut NB276
5 Height Adjust Assembly H7N 9 Engine Plate 6155NFC
Plastic Bushing T2PB 10 Front Caster Assembly 6774C
Ruler Decal OD41 Tire/Wheel/Bearing F4157W
Eye Bolt 6599 Bolt/Nut NB624/NB595
Knob H7K Spacer (Exterior) 663L
5/16 Pal Nut NB276 Washer NB178
6 Left Belt Guard 6155LN Caster Fork 665C
Acorn Nut NB120 Caster Nut NB122
7 Gas Tank 6102T Washer NB195
Gas Cap 6102NC 11 Throttle Plate 6155THC
Gas Tank Mount 6102NTK 12 Engage Lever 6720C
Rubber Bushing AS119 13 Swisher Decal OD99116
Fuel Shutoff Valve AS120
Fuel Line Hose Clamp 6FLC
Fuel Line AS140
