6
Controls
& Operation
Auger
Control
Chute
Direction
Control
Chute
Deflector
A
B
C
Engages auger when pulled
back, and disengages auger
when released.
Rotates discharge chute to
desired direction
Controls vertical angle snow is
thrown.

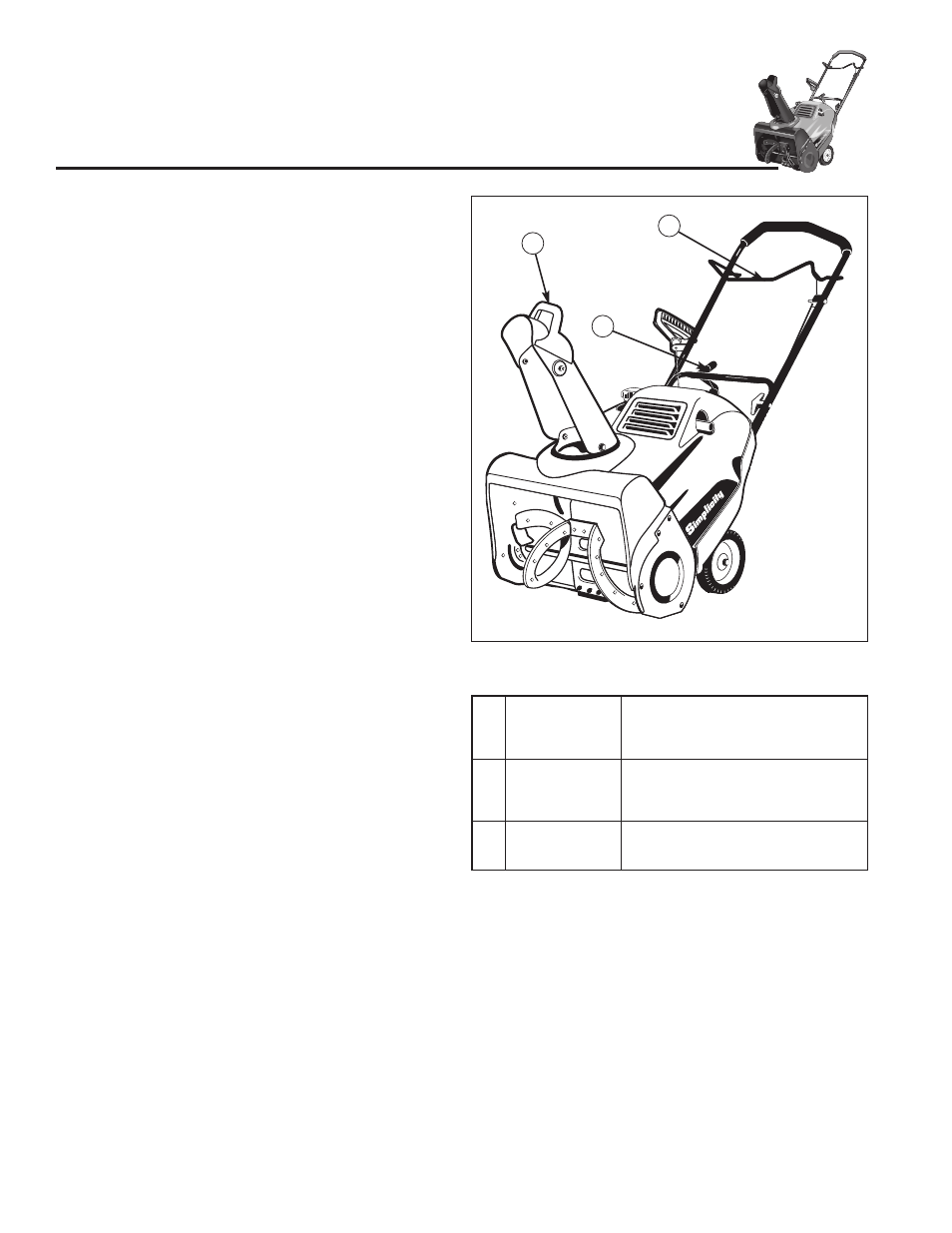

Figure 4. Snowthrower Controls
A
B
C
SNOWTHROWER CONTROLS
Auger Control
A. Auger Control - This control engages and disen-
gages the auger. Pull the control back against handle
to engage the auger, (this will pull snowthrower for-
ward if auger is in contact with the ground). Release
the Auger Control to stop rotation of auger.
Deflector Controls
B. Chute Direction Control - The Chute Direction
Control (B, Figure 4) allows the discharge chute to be
rotated to throw snow in the desired direction. Snow
may be thrown at any angle from straight left to
straight forward, to straight right.
C. Chute Deflector - Controls the distance snow is
thrown. Tilting the Chute Deflector (C, Figure 4) UP
provides a higher stream and greater distance, while
tilting the deflector DOWN provides a lower stream
and less distance.
