Model #
CLEARVU5
www.svat.com
SVAT ELECTRONICS
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
8
7

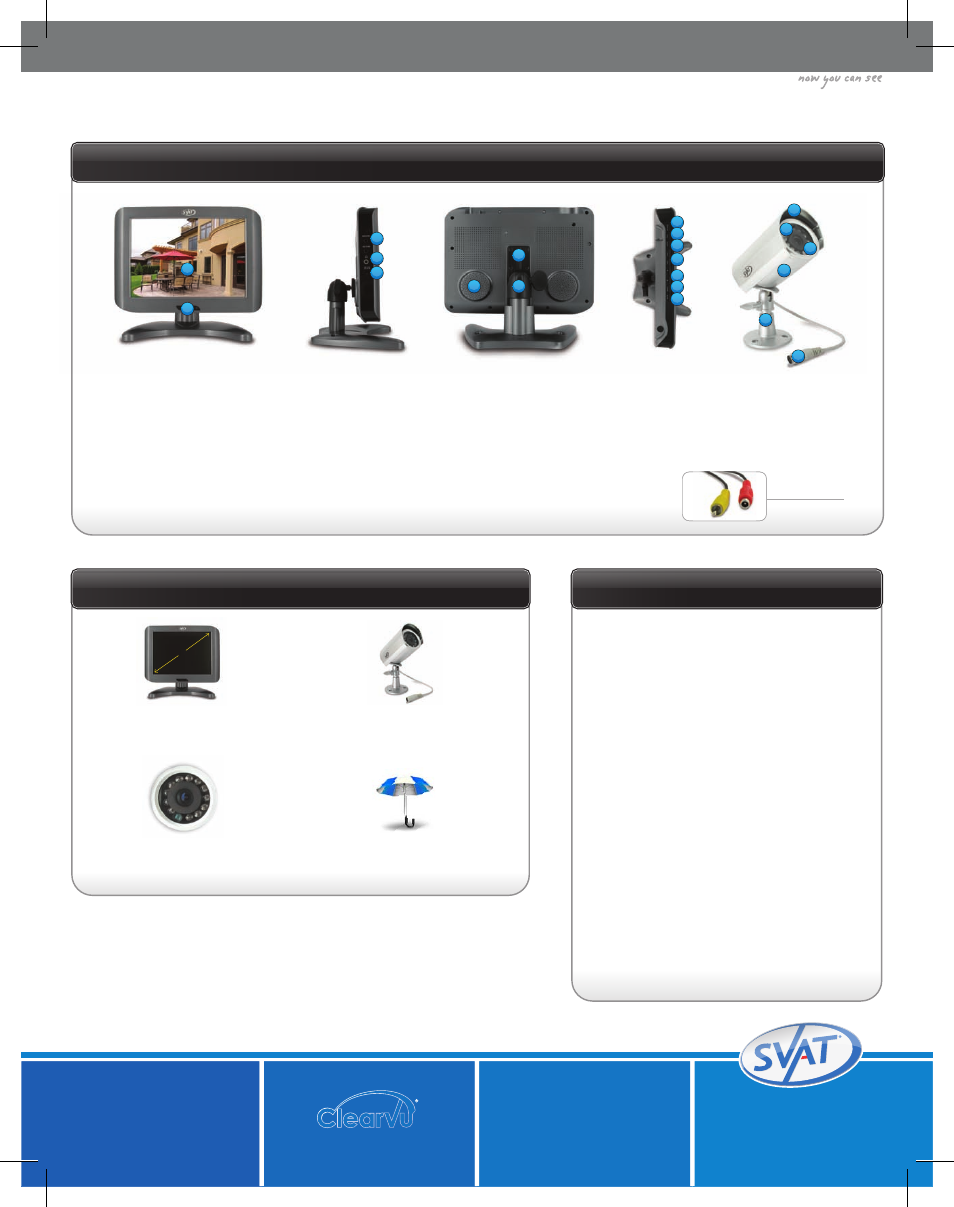

CLEARVU5 HOT SPOTS
SPECIFICATIONS
8" Ultra Slim LCD
View your camera live on the included monitor. This
monitor allows you to connect an additional camera
and automatically cycle between both cameras
(extra camera sold separately - CV67).
8"
Hi-Res Indoor/Outdoor CCD Camera
The high quality CCD image sensor in this camera
provides a clear, crisp and consistent picture at 420
TV lines of resolution. It also allows you to better
distinguish facial features, which can help in the
positive identification of individuals.
IR Night Vision
The camera comes equipped with 12 infrared LEDs
that allow you to see in the dark, up to 15 feet away!
(1)
They activate automatically when it gets dark, and
deactivate during the day to save energy (CDS sensor).
Weatherproof Camera
The camera in this system is built for the outdoors
with professional grade weatherproof housing
(2)
and
a sunshade.
FEATURES OF THE CLEARVU5
Compact Security System
w/ 8" LCD Monitor and Hi-Res Indoor/Outdoor Night Vision CCD Camera
(For complete specifications visit www.svat.com)
SVAT Electronics
Toll Free: 1.866.946.7828
SVAT, CLEARVU and “now you can see”
are trademarks of SVAT Electronics.
©2008 SVAT Electronics
All Rights Reserved
8" LCD Monitor
1. LCD Screen
Watch your footage.
2. Power Button
Turn LCD Monitor ON/ OFF.
3. AV1/AV2 In Ports
Connection to video input sources.
4. 3.5mm Headphone Jack
Connects to stereo headphones.
5. Power Input
DC power input (12V)
6. Speakers
7. Mounting Rails
8 . Mounting Hole
9. AV1/AV2 Button
Switch between input channels.
10. Pics Button
Changes picture set.
11. Auto Button
Automatically cycles through both
input channels.
12. Volume Increase/Decrease Buttons
13. Up/Down Arrow Buttons
Navigate the on-screen menu.
14. Menu Button
Enters the on-screen menu.
15. Mute Button
CCD Color Camera
16. Sun Shield
Helps prevent glare from bright lights.
17. Infrared (IR) LEDs
Allows the camera to see in the dark
up to 15ft away.
18. CDS Sensor
Turns on the infrared LEDs when it
gets dark out.
19. Camera Housing
Made of anodized aluminum to
prevent rust.
20. Camera Mount
Allows the camera to be desk
or wall mountable.
21. Connection to Audio/Video Wire
Converts to RCA.
WHAT IS INCLUDED
• 1 Indoor/Outdoor Night Vision CCD Color Camera
• 1x 8" Ultra Slim LCD Monitor
• 1 Remote Control for LCD Monitor
• 1 60ft 4 PIN DIN
(female)
to RCA
(male)
Video/Power Wire
• 2x RCA (female) to 3.5mm (male) A/V wires
• Power Adapter for LCD Monitor
• Power Adapter for Camera
• Mounting Hardware
• 4 Window Warning Stickers
• Online/Toll Free Support
• Instruction Manuals
• Mounting Hardware
• 1 Year Warranty
• Online/Toll Free Support
UPC#
CLEARVU8 ~ 871363006776
LCD MONITOR
Display....................................8" Color LCD
Resolution .............................480 x 468
Source of Light ....................CCFL
Video Inputs......................... 2x 3.5mm jack (RCA to 3.5mm
wire provided)
Auto Video Sequence .......Yes, Adjustable Interval Time
Video Outputs .....................No
Audio Input...........................2x 3.5mm jack (RCA to 3.5mm
wire provided)
Audio Output.......................1x 3.5mm headphone jack
LCD Profile Ratio .................4.3
Contrast Ratio......................150:1
Brightness .............................300cd/m2
Sleep Timer...........................Yes
OUTDOOR CAMERA (CV67)
Camera Type.........................Bullet
Image Sensor.......................1/4" Color CCD
Resolution .............................420 TV Lines
Outdoor Use.........................Yes
IP Rating.................................IP65
Focal Length.........................3.6mm
Night Vision ..........................Yes
DIMENSIONS
LCD Monitor: 8.375" x 6.5" x 1.25" ~ 1.6lbs
Camera: 5.5" x 5" x 2.44" ~ 0.85lbs
(1)
IR illumination range up to 15ft
(4.5M) under ideal conditions.
Objects at or beyond this range
may be partially or completely
obscured, depending on the
camera application.
(2)
Not for use in direct exposure to
water, rain or snow
60ft Extension Wire
Ends on the 60ft extension wire.
Power (red), & Video (yellow)
