Once you have determined a possible mounting location, it is recommended that
you hold the antenna in place temporarily and connect the antenna cable to your
SIRIUS receiver. Using the Antenna Aiming or Signal Indicator feature of your
receiver, verify that your antenna is receiving a good SIRIUS signal. (Consult the
User Guide of the receiver for specific instructions.) Once you have found a
suitable mounting location for the antenna, you can proceed with the actual
installation.
Antenna Installation
There are three possible mounting options for the Outdoor Antenna:
Wall Mount Mounting the antenna directly on the side of a home or building.
Roof Mount Mounting the antenna on the roof of a home or building.
Mast Mount Mounting the antenna on a mast or pole, such as an existing satellite
TV dish mast, an existing TV antenna mast, or other mast or pole.
Each of these mounting options are described in the following sections.
Wall Mount

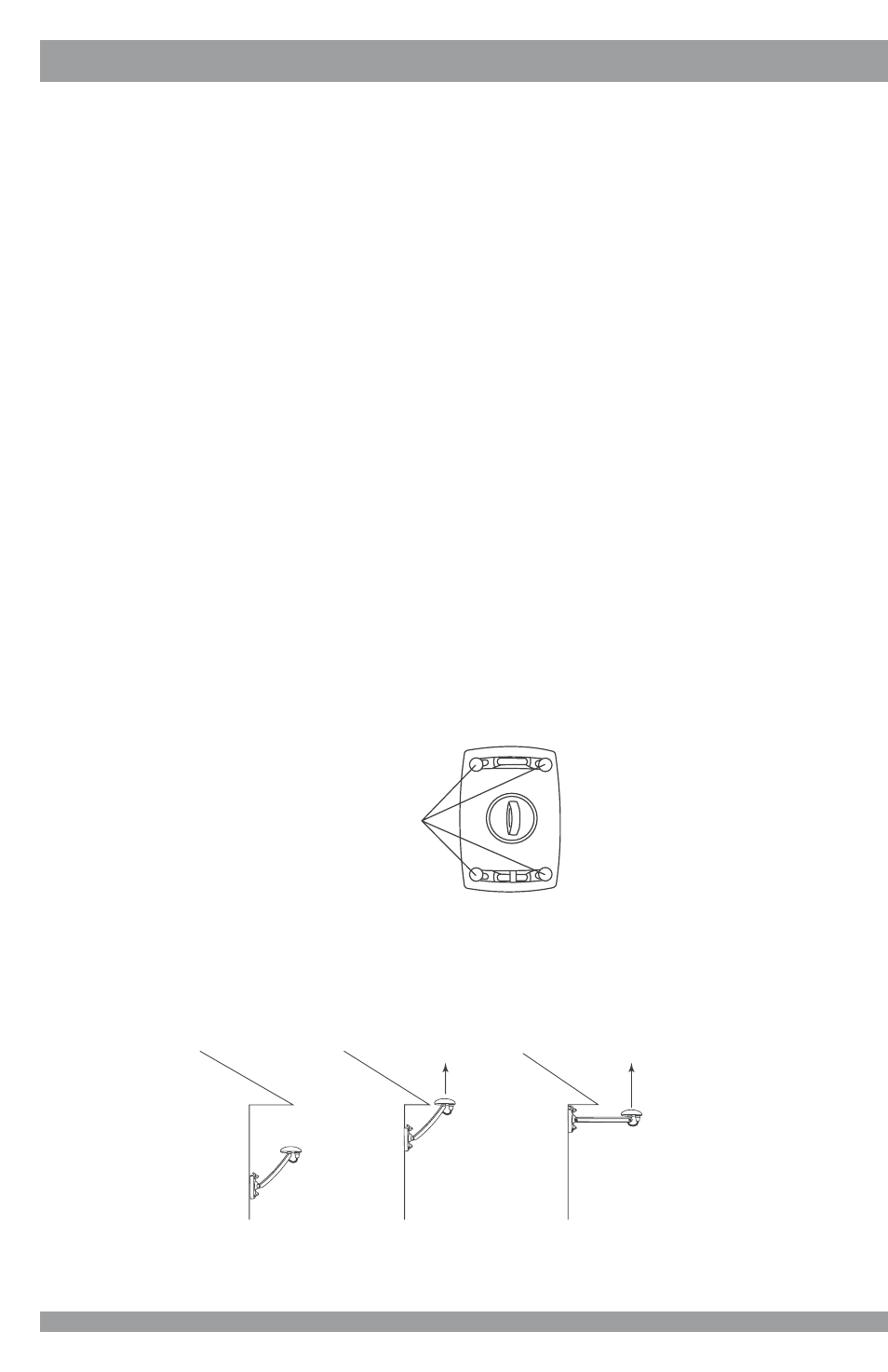

The antenna mounting bracket may be oriented in a vertical position as shown,
and mounted directly to the wall of the building or home using the #10 screws
supplied with the antenna.
MOUNTING
HOLES
Remember to avoid blocking the antenna’s view of the sky by locating the antenna
too high under the eaves of the home or building.
UNOBSTRUCTED
VIEW OF THE SKY
INCORRECT CORRECT
UNOBSTRUCTED
VIEW OF THE SKY
CORRECT
