Series 730 Instruction Manual
IM-73-D 7
Wiring Connections - NEMA 2 CE Enclosures
NEMA 2 enclosures are supplied with a 6-pin connector for direct
connection to the supplied mating connector. The pin designations
are given in Figure 3 below. Connect 15 VDC input power (300 mA
load, maximum) to pin 1 and power ground to pin 5. See “Output Sig-
nal Wiring” for signal wiring instructions.

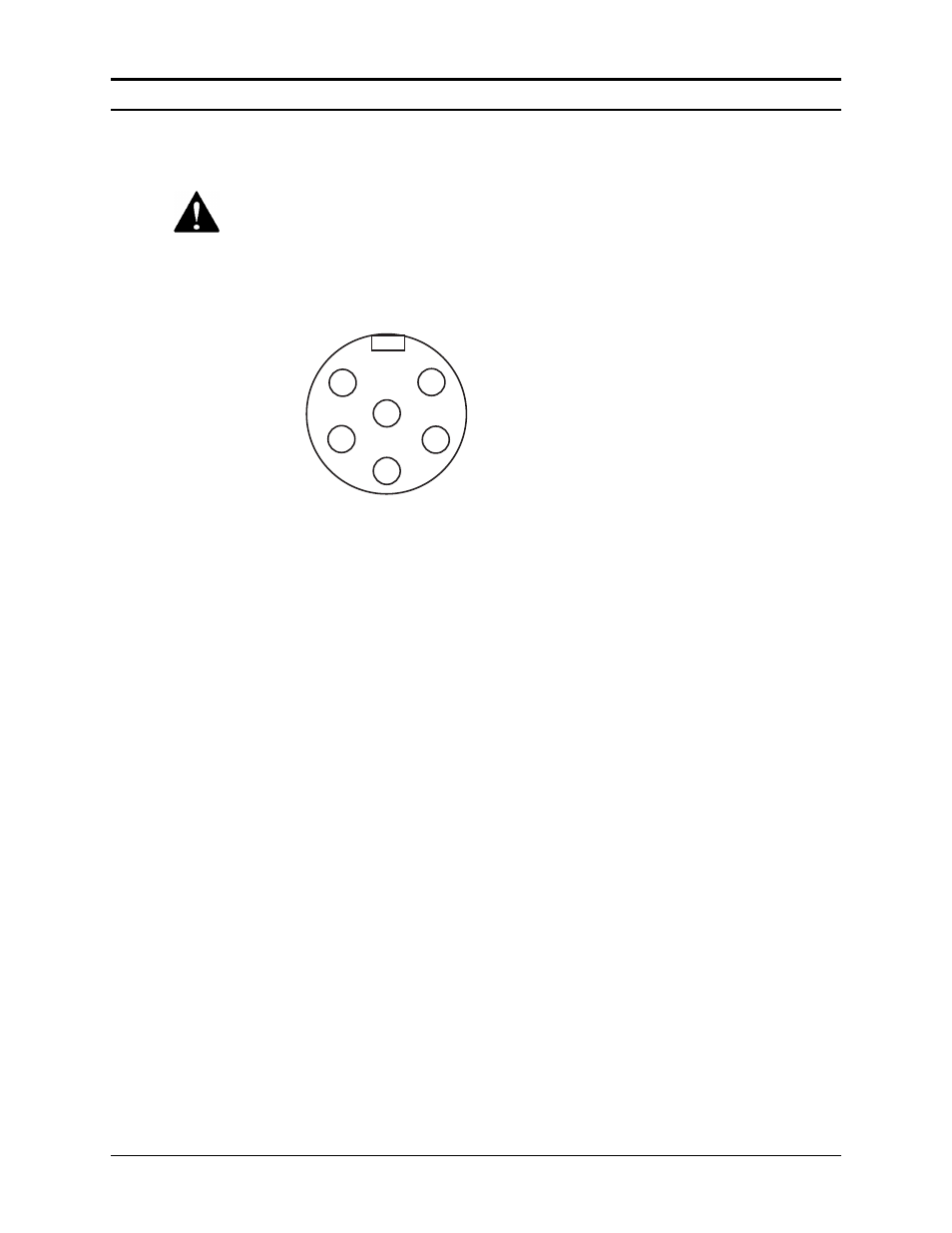

Figure 3. NEMA 2 CE Enclosure Wiring Connections
Warning!
All wiring procedures
must be performed
with the power Off.
•Female Cable Socket Mating Connector (Female Solder Side View)
6
1
2
3
4
5
1 Positive power lead (Red)
2 Output signal (Wht)
3 Signal common (Blk)
4 Bridge voltage (Org Not Required)
5 Power return (Grn)
6 Shield (Not Required)
