SVAT ClearVu and “now you can see”

are trademarks of SVAT Electronics.

©2006 SVAT Electronics.

All Rights Reserved.

SVAT Electronics

4080 Montrose Road

Niagara Falls, ON L2H 1J9

Toll Free: 1.866.946.7828

now you can see

Model #:

CV1010DVR

www.svat.com

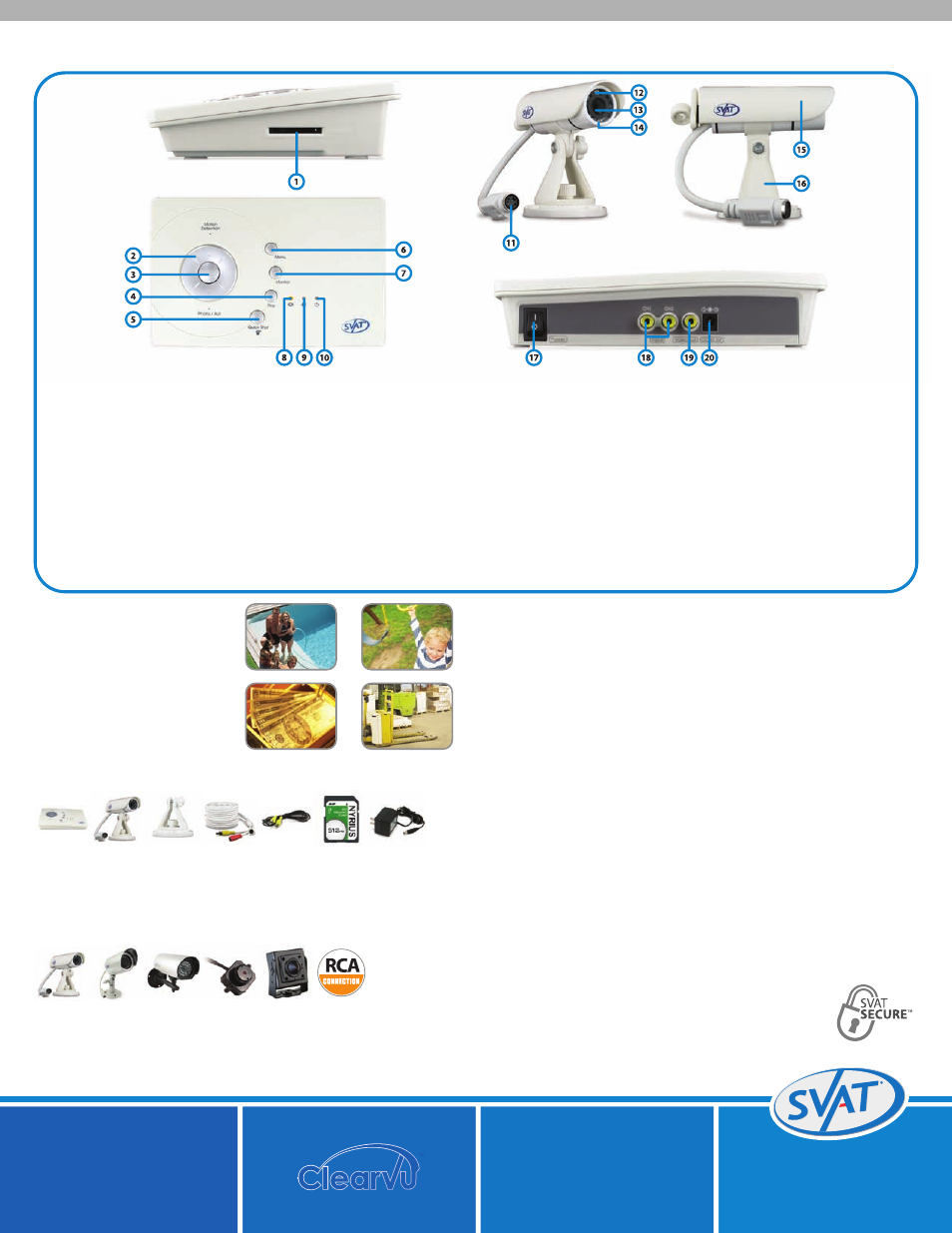

1. SD Card Slot

Supports up to a 2GB SD Card.

2. Navigation Buttons

Up Button:

toggles motion detect recording on

or off while in Live Mode. Moves the

cursor up when navigating menus.

Right Button: moves the cursor right when navigating menus.

Down Button: toggles between still image capture

and movie capture while in Live Mode.

Moves the cursor down when navigating menus.

Left Button:

moves the cursor left when navigating menus.

3. OK Button

Confirms your selection on menu screens.

4. Play

Enters playback mode and toggles between full

screen view, thumbnail view, and file view.

5. Quickshot

Takes a still image snapshot or 10 second video

clip. Allows you to delete files when in playback mode.

6. Menu Button

Enters and exits the menu screen.

7. Monitor Button

Switches between monitoring modes

(full screen; picture-in-picture).

8. Motion Detection LED

Lights up when motion detection mode is active.

9. Video Mode LED

Lights up when Video Mode is active.

10. Power LED

Lights up when DVR is active.

11. Connection to Extension Wire

Extension Wire converts to camera RCA.

12. CDS Sensor

Automatically turns on the IR LEDs when it gets dark.

13. Camera Lens

Color camera lens.

14. Infrared (IR) LEDs

Allows the camera to see in the dark.

15. Sun Shield

Helps prevent glare from bright lights.

16. Mounting Bracket

Allows you to mount camera on walls and ceilings.

17. Power Switch

Turns the DVR ON and OFF.

18. RCA Inputs

Connects your camera(s) to the DVR.

19. Video Out

Sends video to your display.

20. DC In

Connects the power supply to the DVR.

SD DVR

With Outdoor Night Vision Camera

WHAT IS COMPATIBLE WITH THIS SYSTEM?

The CV1010DVR is compatible with TVs, VCRs, computers, all SVAT cameras

with RCA outputs and other SVAT systems including:

SPECIFICATIONS

INDOOR DVR

Functionality..............................................Simplex

Video Compression ................................JPEG

Resolution..................................................Still Picture: 640 x 480

Video: 320 x 240

Recording Frame Rate............................5 FPS

Recording Time ........................................Up to 2.25 Hours w/ Included 512MB Card

Up to 9 Hours w/ 2GB SD Card

Recording Modes ....................................Self-Learning Motion Detection / Manual

Recording Method ..................................Each, Picture-in-Picture

Recording Media ....................................512MB SD Card (included)

Video Format............................................NTSC

Video Inputs..............................................2CH RCA

Video Display Output ..............................1CH RCA

Live Viewing..............................................Single Screen, Picture-in-Picture

Live Frame Rate ......................................5 FPS

Play Search Mode ..................................By Time and Date

OSD and System Menu Display ............Yes
OUTDOOR CAMERA

Camera Type............................................Bullet

Image Sensor............................................1/3" CMOS Color

Resolution..................................................330 TV Lines

Outdoor Use..............................................Yes

IP Rating ....................................................IP44

Focal Length ............................................6mm

Focus Type ................................................Fixed

Night Vision ..............................................Yes

Number of IR LEDs and Range ..............11, up to 15ft

IR LED Control ..........................................Automatic, CDS Sensor

Min. Illumination ......................................0 lux

Microphone ..............................................Yes, Built-in

Viewing Angle ..........................................53 Degrees

Electronic Shutter ....................................1/60~1/15000 sec

DIMENSIONS
DVR: 8.25" x 5.25" x 1.75" ~ 0.5lbs

Camera: 4.25" x 1.125" x 1.25" ~ 0.15lbs

WHAT IS INCLUDED WITH THIS SYSTEM?

1 SD DVR

1 Color

Camera

Camera

Mount

60ft Extension

Wire

RCA to RCA

(male) Wire

512MB SD

Card

2 Power

Adapters

CV1011C

CV65

CV31/CV32

CMOSCO

CCDCO

Extension

Wires

WHERE DO I USE THIS?

At home to watch your:

• Children

• Backyard

• Front Door

• Driveway

At work to watch your:

• Entrance Ways • Employees

• Parking Lot

• Office

UPC #

CV1010DVR ~ 871363006363
