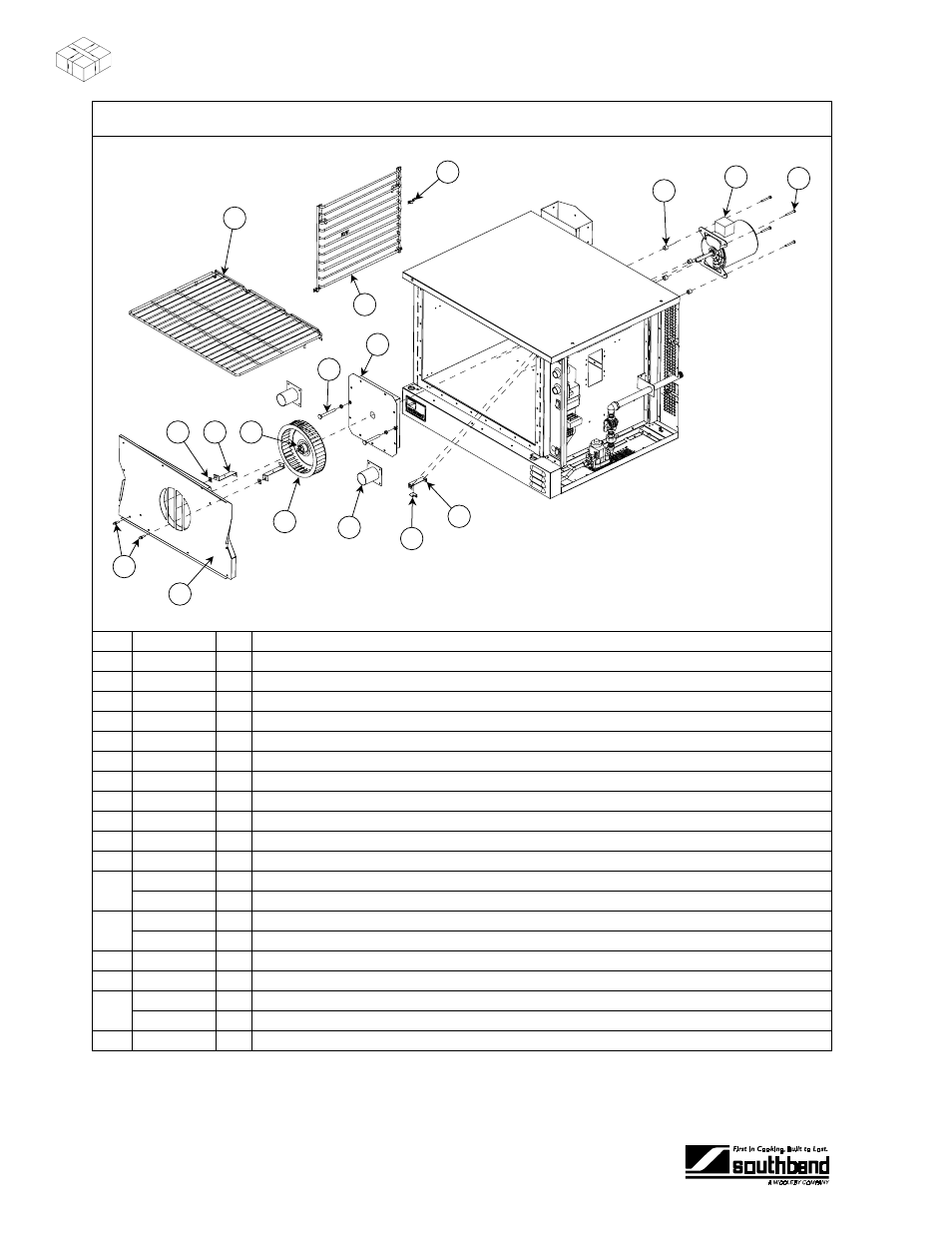

Oven Interior and Fan Motor Parts
2
3 4
6
7
8
9
10
11
12
13
14
15
16 17
1
5
Key Part Number Qty Description
1 1160289 2 Thumb screw 1/4-20 x 3/4
2 1179225 1 Baffle, air. s/a, enamel
3 1166819 2 Nut, 1/4 x 20, speed
4 1175572 2 Bracket, baffle, ctg, G-series
5 1179100 1 Puller disk
6 1179104 1 Blower wheel single
7 1179199 2 Tube asm. outer combustion
8 1175146 2 Bolt, carriage, 3/8 x 3.5", ss
9 1175695 1 Pocket weld asm. blower motor
10 1171710 1 Probe bracket clamp (units built after September 30, 2000, do NOT have this part)
11 1170328 1 Probe bracket (units built after September 30, 2000, do NOT have this part)
12 1175440 5 Rack, oven, shallow, mg
1175441 5 Rack, oven, bakery. mg
13 1181813 2 Rack guide, 11 pos, shallow
1181827 2 Rack guide, 11 pos, bakery
14 6660 8 Clip, side rack support
15 1179710 4 Spacer, blower motor
16 1175567 1 Motor, 2sp, 120V, 50/60 cycle
1175568 1 Motor, 2sp, 240V, 50/60 cycle
17 1146264 4 Screw, 1/4-20 x 2
