M ARATHONER G OLD & S ILVER S TAR G AS C ONVECTION O VENS
P
ARTS
O PERATOR ’ S M ANUAL 1181887 REV 1 P AGE 55
PA
RT
S

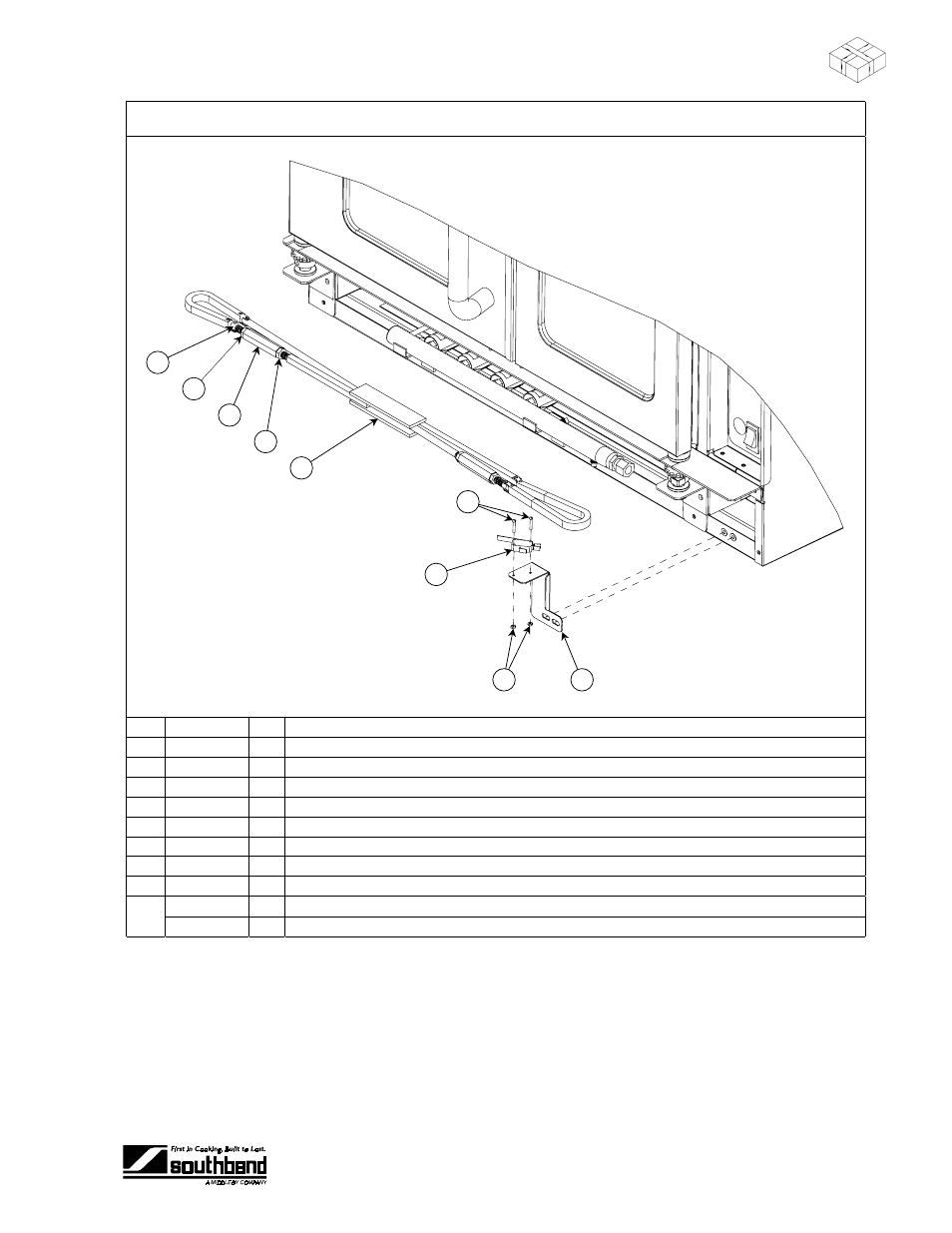

Door Chain Mechanism Parts
1
2
3
4
5
7
9
6
8
Key Part Number Qty Description
1 1164523 4 Pivot rod
2 1164551 2 Nut, 3/8-16, hex head, right hand threaded
3 1164522 2 Turnbuckle, 2 3/4" long, brass
4 1164552 2 Nut, 3/8-16, jam, left hand threaded
5 1175214 1 Door mechanism, weld asm
6 1172326 2 Screw, #4-40 x 3/4, zinc plated
7 1177567 1 Switch, door, spdt, 15 amp
8 1172327 2 Nut #4-40, zinc plated, hex
9 1181956 1 Bracket, door switch (for units built before February 15, 2001)
1183358 1 Bracket, door switch (for units built after February 14, 2001)
