ENFORCER DNR / DWDR / IR NVD Bullet Camera with 4-Axis Mounting Arm
2 SECO-LARM U.S.A., Inc.
Parts List:
1 x Camera with bracket
1 x Mounting plate
1 x Sunshield
4 x Mounting screws
4 x Hex screws
1 x Hex wrench
1 x Rubber grommet
1 x DC plug with terminal block
1 x Service monitor port
connector
EV-1726-NKGQ (NTSC)
EV-1726-PKGQ (PAL)
EV-1726-NWGQ (NTSC)
EV-1726-PWGQ (PAL)
Type IR LED Bullet Camera
Pickup Element 1 /
3
” Sony Super HAD II CCD
Resolution 600 TV lines
Lens (DC Auto Iris) 2.8~12mm 6~50mm
# of Infrared LEDs 56 (850nm)
Effective Pixels
NTSC 768x494 pixels
PAL 752x582 pixels
Video Output 1Vp-p composite video, 75Ω
Minimum Illumination 0.00006 Lux (LEDs on) 0.05 Lux (LEDs off)
S/N Ratio >52dB (AGC OFF)
On Screen Display (OSD) Built-in and controlled by internal joystick
Motion Detection 4 zones
Backlight Compensation HLC/BLC/Off
White Balance ATW / AWC / MANUAL (1800°~10,500° K)
Digital Slow Shutter (DSS) 256x
Electronic Shutter Auto/Manual (adjustable range: 1/60~1/120,000 sec)
Auto Gain Selectable: Low, Middle, High, Off
3-DNR (DNR with 3D filtering) On/Off (adjustable range: 0~100)
Day & Night (Color) Selectable: Color, Auto, B/W
Sharpness On/Off (adjustable range: 0~31)
Privacy On/Off (8 programmable zones)
IP Rating IP66
Operating Voltage 12VDC/24VAC Dual Voltage
Current Draw
LEDs OFF 12VDC: 200mA / 24VAC: 3.6W
LEDs ON 12VDC: 600mA / 24VAC: 12W
Operating Temperature 14°~122° F (-10°~50° C)
Dimensions (LxWxH) 12”x3 7 /
8
”x3 7 /
8
” (305x100x100 mm)
Weight 3-lb 12-oz (1700g)

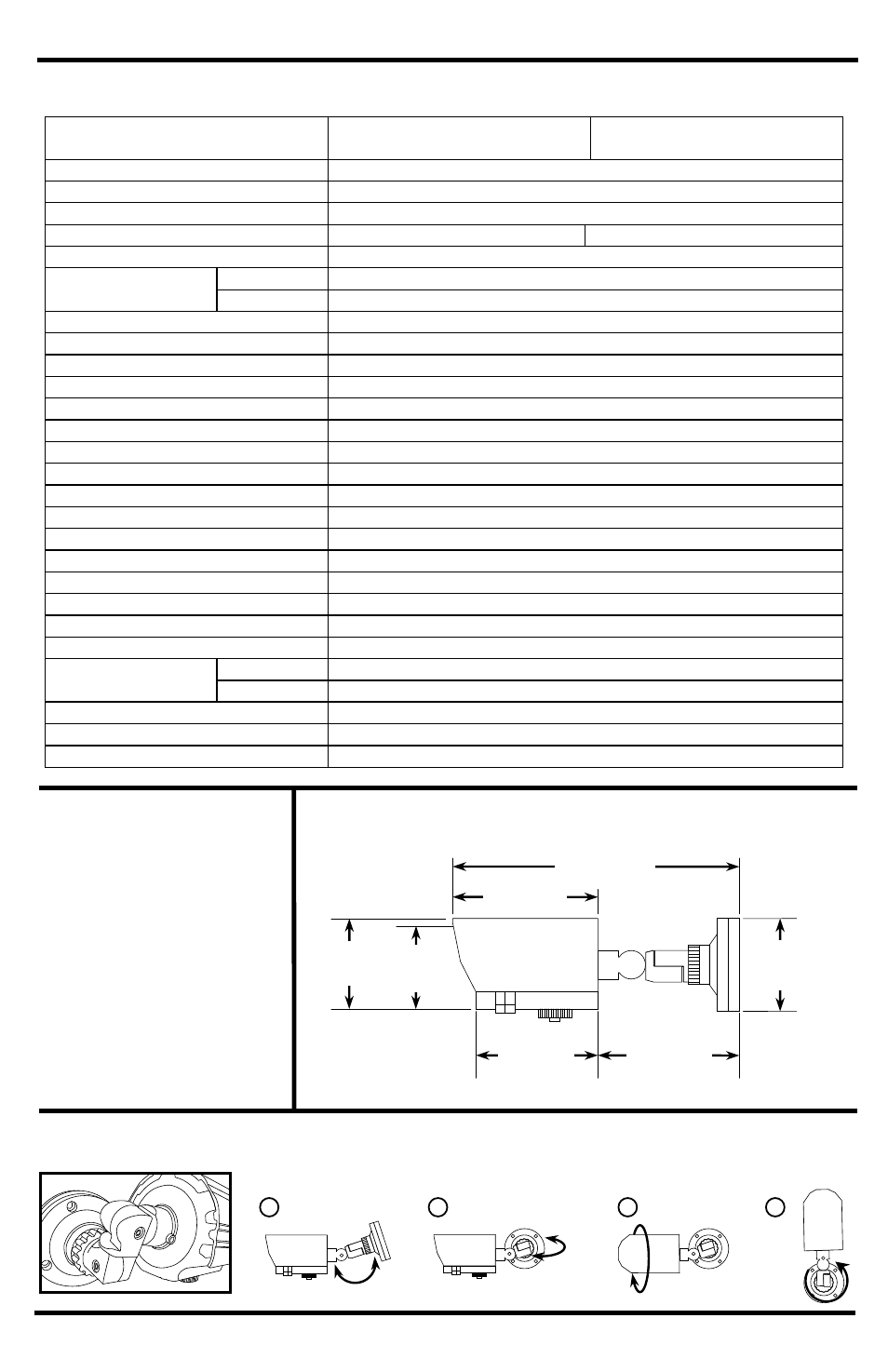

Specifications:
Dimensions:
4-Axis Mounting Arm: The mounting arm set screws can be loosened in three places to adjust the
camera angle. The adjustment ring at the base can also be adjusted.
1 2 3 4
12” (305mm)
6” (152mm)
3 7 /
8
”
(100mm)
6” (152mm)
4 15 /
16
”
(125mm)
3 7 /
8
”
(100mm)
3 1 /
2
”
(88mm)
