• High speed extract of 1,000 RPM exerts
305 G-Force to maximize moisture re-
moval from clothes.
• All drive components (pulley, trunion, tub
shaft and bearings) are manufactured with
rugged steel construction.
• Heavy-duty 3/4 HP drive motor with
reversing wash action.
• Freestanding design features four large
automotive size shocks so the washer can
be installed on most floor types or levels.
Superior Drying
Convenience
• A wide door opening of 2.06 sq. ft. is the
industry’s largest, offering residents the
convenience of easy loading and unloading.
Drying and Energy
Dynamics
• Durable galvanized steel cylinder with
extra-large 18 lb capacity. The gentle tumble
action minimizes wrinkles.
• Quiet, efficient blower system with superior
airflow of 220 cu. ft. per minute for fast drying
and lower operating costs.
• Efficient dryer heating with 22,500 Btu (gas
models) and 5,350 Watts (electric models).

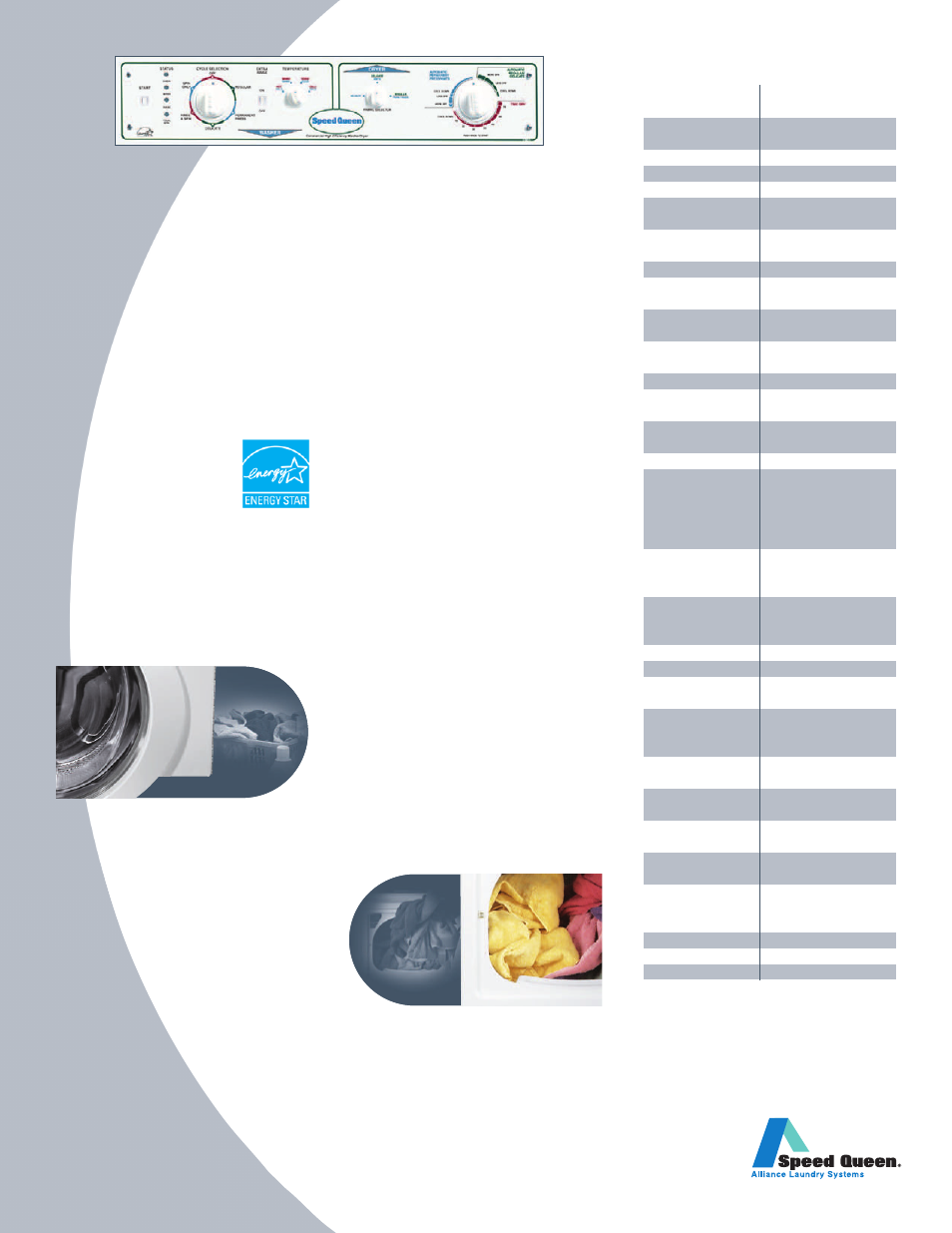

Washer/Dryer Specifications
Commercial Quality
Built tough to stay that way. The No. 1 supplier
of commercial coin-operated laundry equip-
ment, Speed Queen continues to lead in
customer satisfaction. Speed Queen homestyle
washers and dryers feature many of the same
rugged, reliable parts found in the coin-operated
machines, so they’re built to last.
Ultra, High-Efficient
Automatic Washer
• ENERGY STAR
®
qualified.
• U.S. Department of Energy
compliant to 2007 commercial
washer standards for energy savings.
Horizon Quality Features
• The “Big Load Door” opening of 188.6
square inches.
• See-through door convenience with 180°
swing for easy loading and unloading.The
hinge is a robust 10" steel piano style to
maintain door alignment.
• Frontmount supply dispenser automatically
adds detergent, bleach and softener.
• The stainless steel washtub has 4,912
perforated holes with three full length baffles
to maximize mechanical wash action for
cleaner clothes.
* Heights may vary slightly depending on leveling adjustments.
** IMPORTANT: Any product revisions or conversions must be made
by the Manufacturer’s Authorized Dealers, Distributors, or local
service personnel.
*** Measured at point of exit from dryer.
Also available in 50 Hz. Features and certifications may vary by model.
Motor: 3/4 HP reversing, permanently lubricated. Electrical
Requirements: Grounded 3-wire, 120V, 60 Hz AC, 15 amp circuit
separately fused.
Due to continuous product improvements, design and specifications
subject to change without
notice. The quality
management systems at
Alliance Laundry Systems
manufacturing facilities are
registered as ISO 9001:2000
compliant. Features and
certifications may vary by model.
©Copyright 2007 Alliance Laundry Systems LLC
Electric: LTSA7
Gas:
LTSA9
Basket/Cylinder 2.84 (80)/ 7.0 (198)
Volume - cu. ft. (liters)
Width - in (mm)
26 7/8" (683)
Depth - in (mm) 28" (711)
Height* - in (mm) 75" (1911)
Weight - lb (kg) Electric: 360 (163)
Gas: 365 (166)
Shipping Weight - Electric: 390 (177)
lb (kg) Gas: 395 (179)
Cycle Time - minutes 28-31/45
Motor HP
3/4 HP, 750 W
1/3 HP, 5.5 amps
Water Consumption - 13.9
gal. per cycle
Water Factor - 4.9
gal. per cu. ft.
Modified Energy Factor 2.04
Hot Water Usage -
1.74
gal. per cycle
Water Pressure -
Pressure fill - 20 to 120
psi (bar) (1.4/8.3)
Spin Speed - RPM 500, 650, 1000
Wash Cycles Regular
Permanent Press
Delicate
Rinse and Spin
Spin Only
Dryer Temperatures Regular/Permanent Press
Delicate
No Heat
Electrical Specifications Electric: 120/240/60/1-30 amp
120/208/60/1-30 amp
Gas: 120/60/1-15 amp
Motor - RPM 60 Hz: 1725
Btu per Hour 22,500 (5760 kcal)
Heating Element 5350 W, 240 V
4750 W, 208 V
Type of Gas Factory-equipped natural/
(Gas Models Only) mixed gas. Convertible
to LP gas. **
Utility Connections - Gas: 3/8" NPT (9.5)
in (mm)
Air Outlet Diameter - 4" (102)
in (mm)
Exhaust Airflow*** - 220 (105)
cfm (liters/sec.)
Maximum Exhaust
0.6" W.C.
Static Back Pressure
Agency Approval
Washer: UL
Electric Dryer: UL
Gas Dryer: CSA Star
Activation Push-to-Start
Colors White
Door Type Window
