1. Channel Gain - Adjusts the pre-fader volume for cleaner
sound. Reduce the channel gain if you notice the level
indicators flashing red.
2. Mic Input Gain - Adjusts microphone input level.
3. Mic EQ - The mic channel includes a two-band EQ with a
range of +10 dB to -10 dB.
4. Channel EQ - Adjusts the high, mid and low frequency
levels of the input channels for either making the treble or
bass louder or to be used as an effect.
5. Input Fader - Controls individual source levels (channels) in
the mix.
6. Crossfader Curve - The CUT setting allows the use of the
crossfader for quick cut in and out when scratching and
mixing. The FADE setting is used for longer segues,
typically when mixing between two beat-matched sources.
7. Crossfader - Used to mix the sound from both channels.
8. Mic Input - Insert your ¼” microphone plug here.
9. Headphone Input - Insert your ¼” headphone plugs here.
10. Fader Start On/Off Switch - When the unit has been
connected to a CD player using a control cable, this
becomes the On/Off switch to automatically start and stop
the CD player while using the crossfader.
11. Level Indicators - The dual LED indicators are used to
indicate the master output level of the Right and Left
channels.
12. Channel Cue / Cue Pan - Used to preview channel audio
to your headphones. Listen here before bringing up
channel faders or moving the crossfader.
13. Headphone Level - Adjusts cue volume.
14. Master Level - Controls the overall output level.
15. Input Toggle Switch - Selects which source will be active
based on what you have connected to the rear panel input
section (phono/line).
2

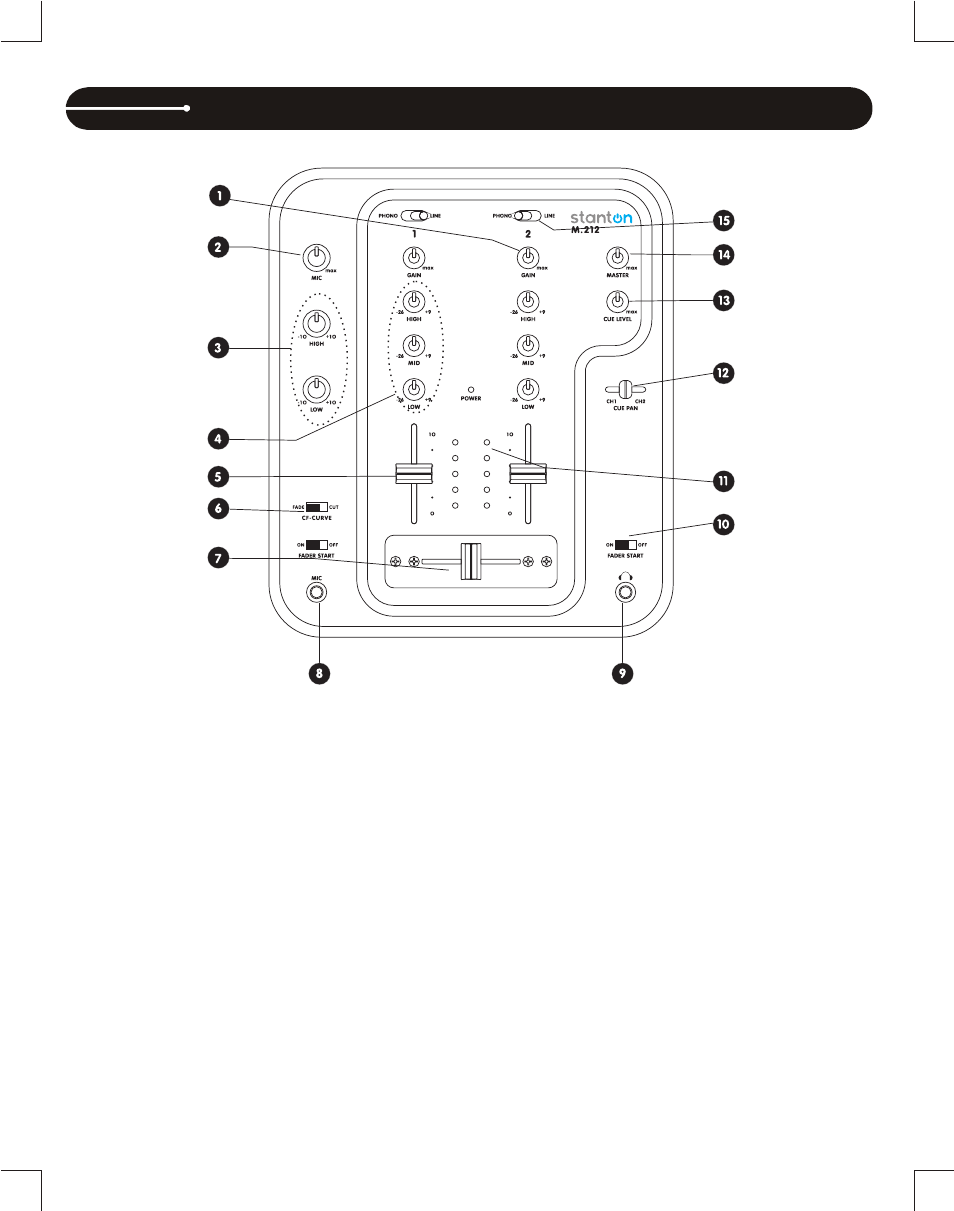

M.212 CONTROL OVERVIEW TOP PANEL
