Technical Information
Model door maximum width door maximum
height
72270106 56-5/8 ″ (1438 mm) 72 ″ (1829 mm)
Installation Notes
Install this product according to the installation guide.
Size the drain cutout to fit the drain assembly that will be
used.
Double studding is recommended for pivot shower door
installations.
Studs should be positioned roughly as shown.
Base cannot be installed without the wall surround.
10"
(254 mm)
4" (102 mm)
End Wall
35-1/4"
(895 mm)
29-1/4"
(743 mm)
10-1/4" (260 mm)
Back Wall
60-1/8" (1527 mm) Min
60-1/4" (1530 mm) Max
16"
(406 mm) 16"
(406 mm) 14"
(356 mm) 14"
(356 mm)
Ø 4-1/2"
(114 mm)
Drain Cutout
16-3/8"
(416 mm)
30"
(762 mm)
3-5/16"
(84 mm) OD
Drain Hole
8"
(203 mm)
26"
(660 mm)
54"
(1372 mm)
37-1/4"
(946 mm)
1-5/8" (41 mm)
at Midpoint
7-5/8"
(194 mm)
12"
(305 mm)
6-5/8"
(168 mm) 60"
(1524 mm)
75-3/4"
(1924 mm)
1-1/4"
(32 mm)
1-1/4"
(32 mm)
36"
(914 mm)
3-7/8"
(98 mm)
19-3/4"
(502 mm) 16-1/4"
(413 mm)
5-1/2"
(140 mm)
5-3/4"
(146 mm)
77"
(1956 mm)
37-1/4"
(946 mm)
43-1/4"
(1099 mm)

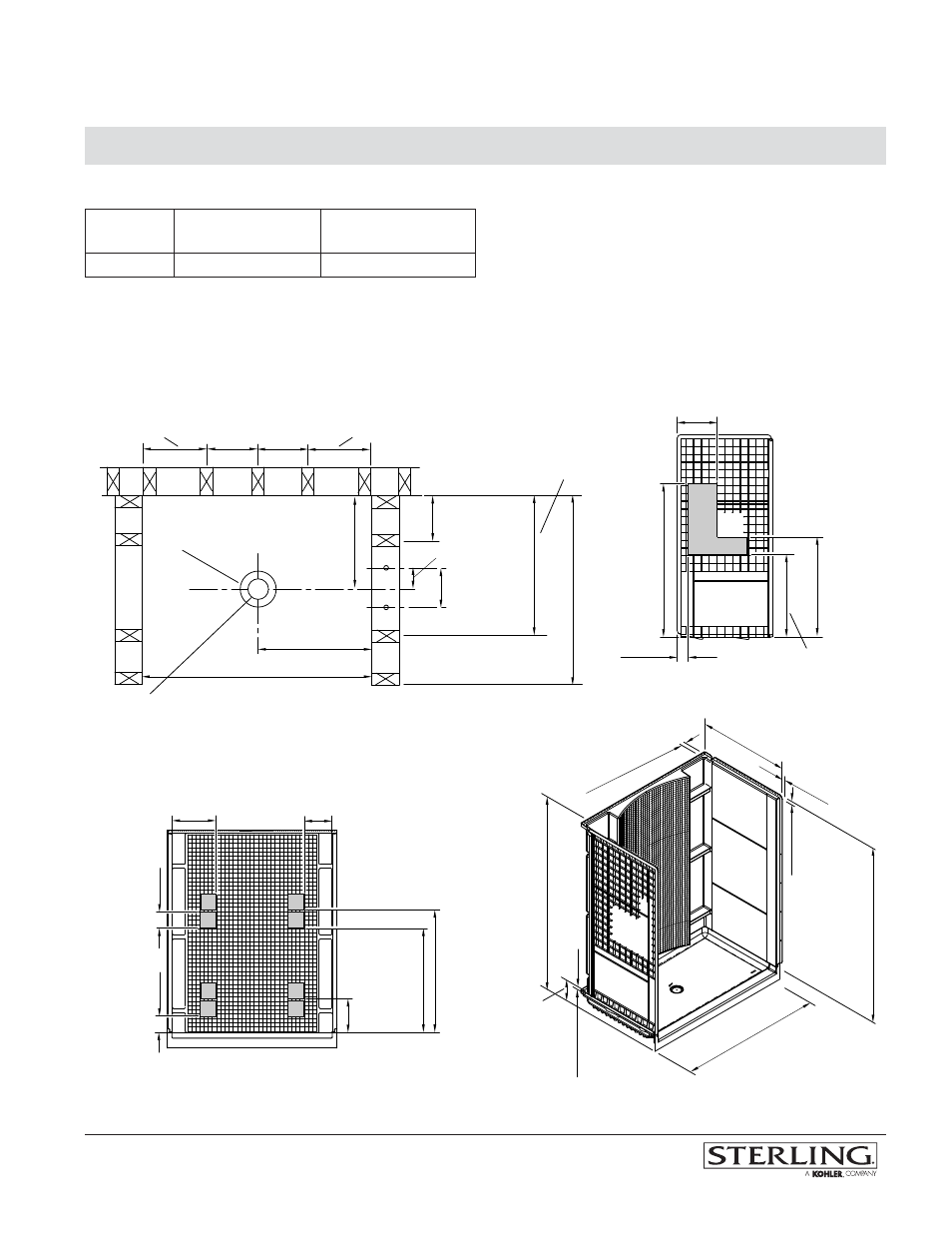

Product Diagram
ACCORD ®
ACCORD
®
60
″ (1524 mm) BASE AND SURROUND W/BACKER BOARDS
Page 2 of 2
