29
5
Copier troub
le?

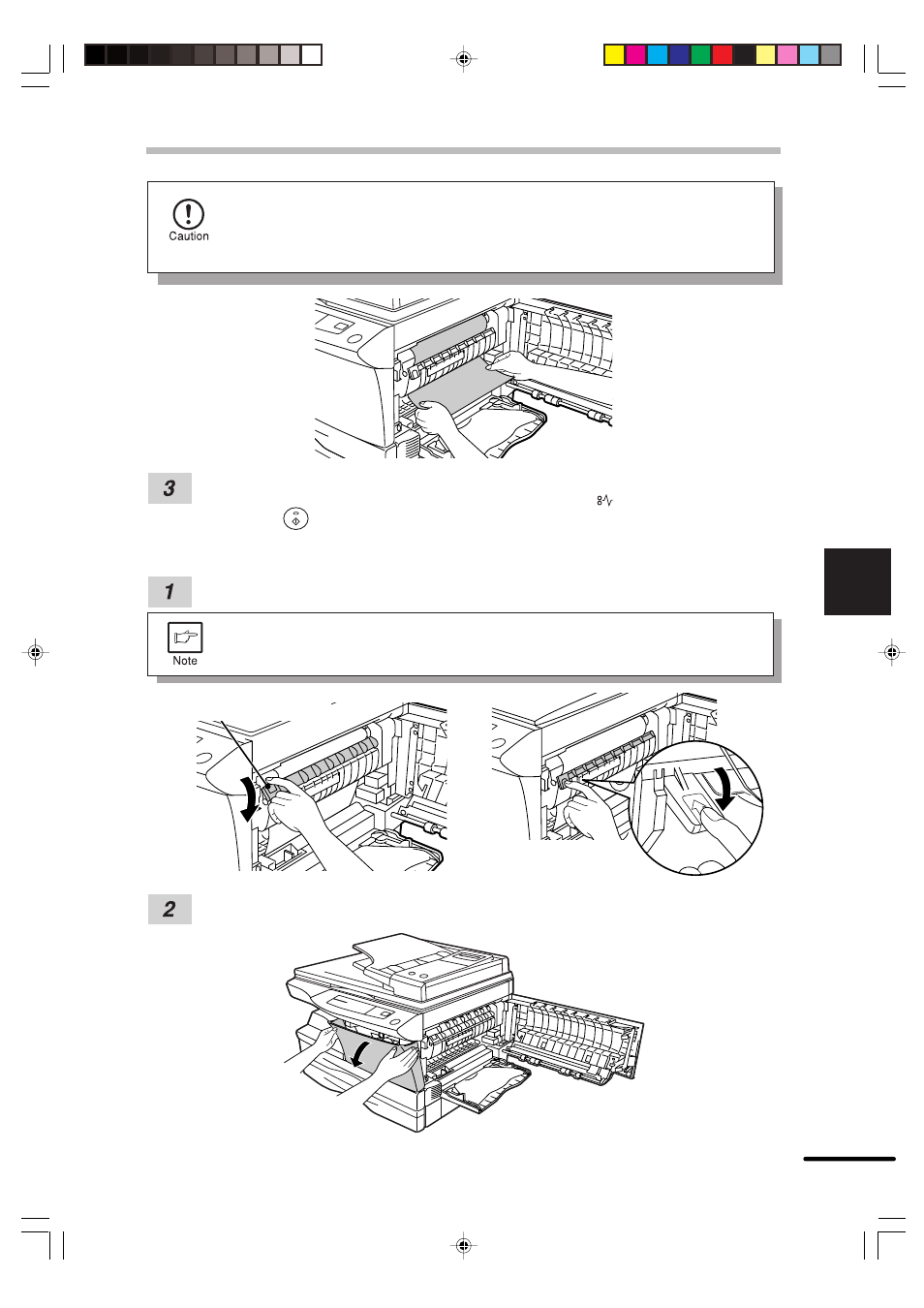

MISFEED REMOVAL
● Do not touch the photoconductive drum (green portion) when removing the
misfed paper. Doing so may damage the drum and cause smudges on copies.
● Do not remove the misfed paper from above the fusing unit. Unfixed toner on
the paper may stain the paper transport area, resulting in smudges on copies.
Raise the fusing unit release lever and then close the side cover by pressing the round
projections near the side cover open button. The misfeed (
) indicator will go out and
the ready ( ) indicator will light up.
C Misfeed in the transport area
Lower the fusing unit release lever by rotating it all the way as shown in the illustration.
While you are lowering the fusing unit release lever, it will not move smoothly at
a location on the way. However, be sure to lower the lever by rotating it all the
way to the location where it will not rotate as shown in the right illustration.
Fusing unit release lever
Push gently on both sides of the front cover to open the cover.
