Two S
Stage D
Door LLock D
Diagrams

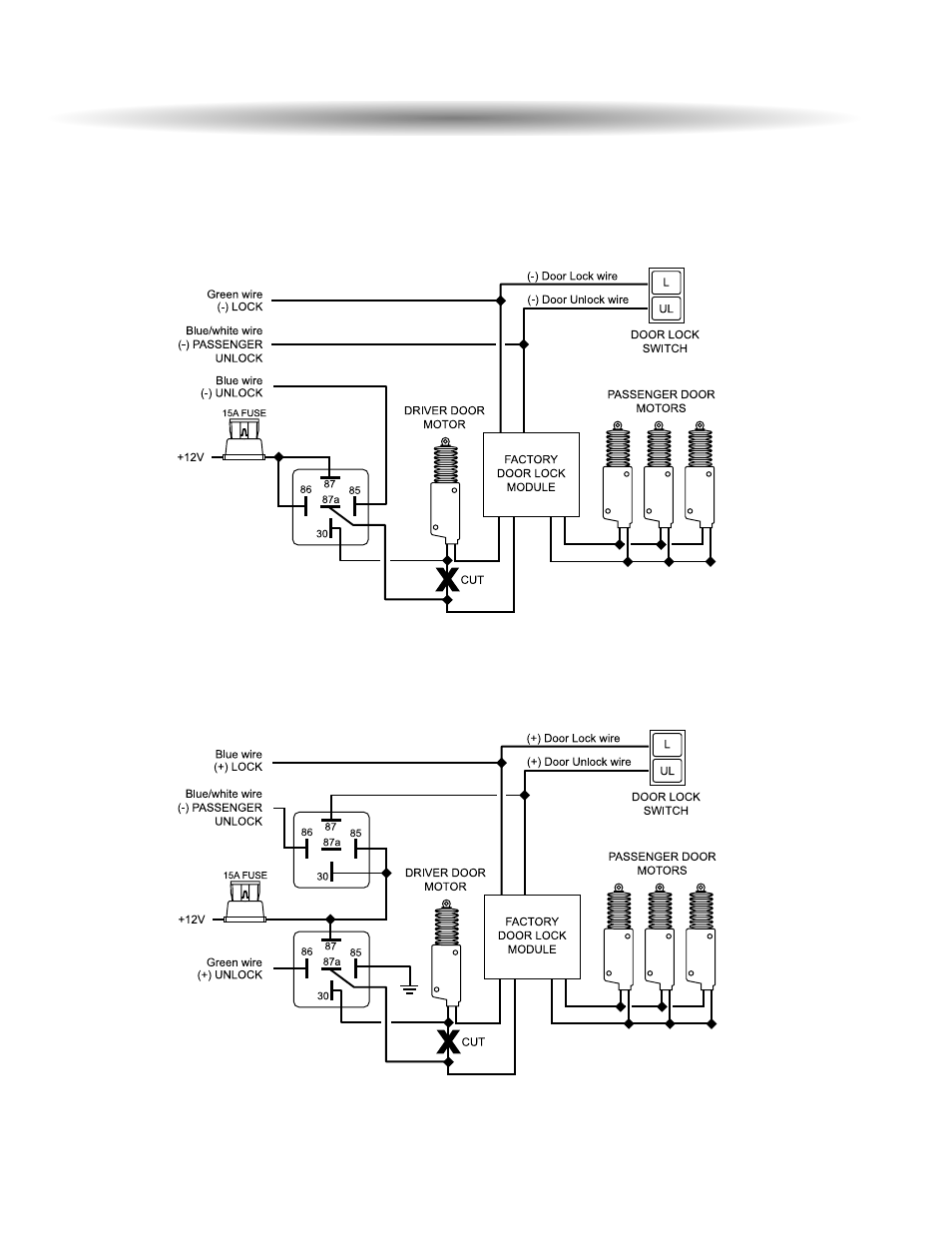

Two Stage Negative Trigger
Two Stage Positive Trigger
The Galaxy 5000RS Plus is equipped with a dedicated Passenger Unlock output allowing Two
Stage Door Lock operation. When connected as shown below, disarming the system will unlock
only the driver’s door. Pressing the disarm button again will unlock all doors.
