SPECIFICATIONS
(for more detailed specifications visit www.svat.com)
INDOOR DVR
Display ..........................................................7" Color TFT-LCD
Functionality ..............................................Triplex
Video Compression .................................MJPEG
File Format ..................................................AJP
Resolution ...................................................NTSC : 704 X 480 / PAL: 704 X 576
Recording Frame Rate ............................30FPS (Fully Adjustable)
Recording Time .........................................Max 40 Days Continuous
Recording Method ...................................Record as Each, Playback in Quad and Full Screen
Recording Qualities .................................Lowest, Low, Normal, High, Highest
Recording Modes .....................................Motion Record, Continuous Record
Recording Media ......................................HDD (Backup via USB)
Storage Capacity .......................................160GB HDD Included
Video Format .............................................NTSC/PAL
Video Inputs ...............................................4 CH Composite BNC
Video Display Output..............................2 CH Composite BNC (Monitor/Spot)
Network Protocol .....................................TCP/IP, DDNS, DHCP, PPPoE
Network LAN IP .........................................Static, Dynamic
Network Connection ...............................10/100 BaseT Ethernet (RJ-45)
Play Search Mode .....................................Percentage, Time/Date, Event list
Processor .....................................................Samsung ARM 9
Power Input ................................................12V DC 5A
Power Adapter Input ...............................100V 50/60HZ~240 50/60HZ
OUTDOOR CAMERA (CV67)
Camera Type ...............................................Bullet
Image Sensor .............................................1/4" Color CCD
Resolution ...................................................420 TV Lines
Outdoor Use ...............................................Yes
IP Rating .......................................................IP65
Focal Length ...............................................3.6mm
Night Vision ................................................Yes
Number of IR LEDs and Range .............12, up to 15ft
IR LED Control ............................................Automatic (CDS Sensor)
Min. Illumination .......................................0 lux
Video Output .............................................4 PIN DIN to RCA w/ 60ft Extension Wire
Viewing Angle ...........................................60 Degrees
Housing Material ......................................Anodized Aluminum
Camera Power Input ................................DC 12V 300mA
Power Adapter Input ...............................120V 60Hz
DIMENSIONS
DVR: 8.5" x 6.5" x 4.75" ~ 5.5lbs
Camera: 4" x 2.25" x 2.25" ~ 0.6lbs
WHERE DO I USE THIS?
At home to watch your:
• Garage • Backyard
• Property • Driveway
At work to watch your:
• Entrance Ways • Employees
• Parking Lot • Warehouse
WHAT IS COMPATIBLE WITH THIS SYSTEM?
The CLEARVU1 is compatible with TVs, computers, all SVAT cameras with RCA outputs and other
SVAT systems including:
WHAT IS INCLUDED WITH THIS SYSTEM?
UPC #
CLEARVU1 ~ 871363006509
1 DVR
(160GB HDD)
4 Outdoor Night
Vision Cameras
4 Camera
Mounts
PS/2 Mouse Remote
CV67 CV31 CCDCO CMOSCO Extension Wires
• Software CD
• 6 RCA to BNC Connectors
• 1 Power Adapter for DVR
• 4 Power Adapters for Cameras
• Mounting Hardware
• 1 Year Warranty
• Quick Start Guide
• Instruction Manual
• 4 Window Warning Stickers
• Online/Toll Free Tech Support
Web Ready DVR System
w/ Integrated 7" LCD and 4 Outdoor Night Vision CCD Cameras

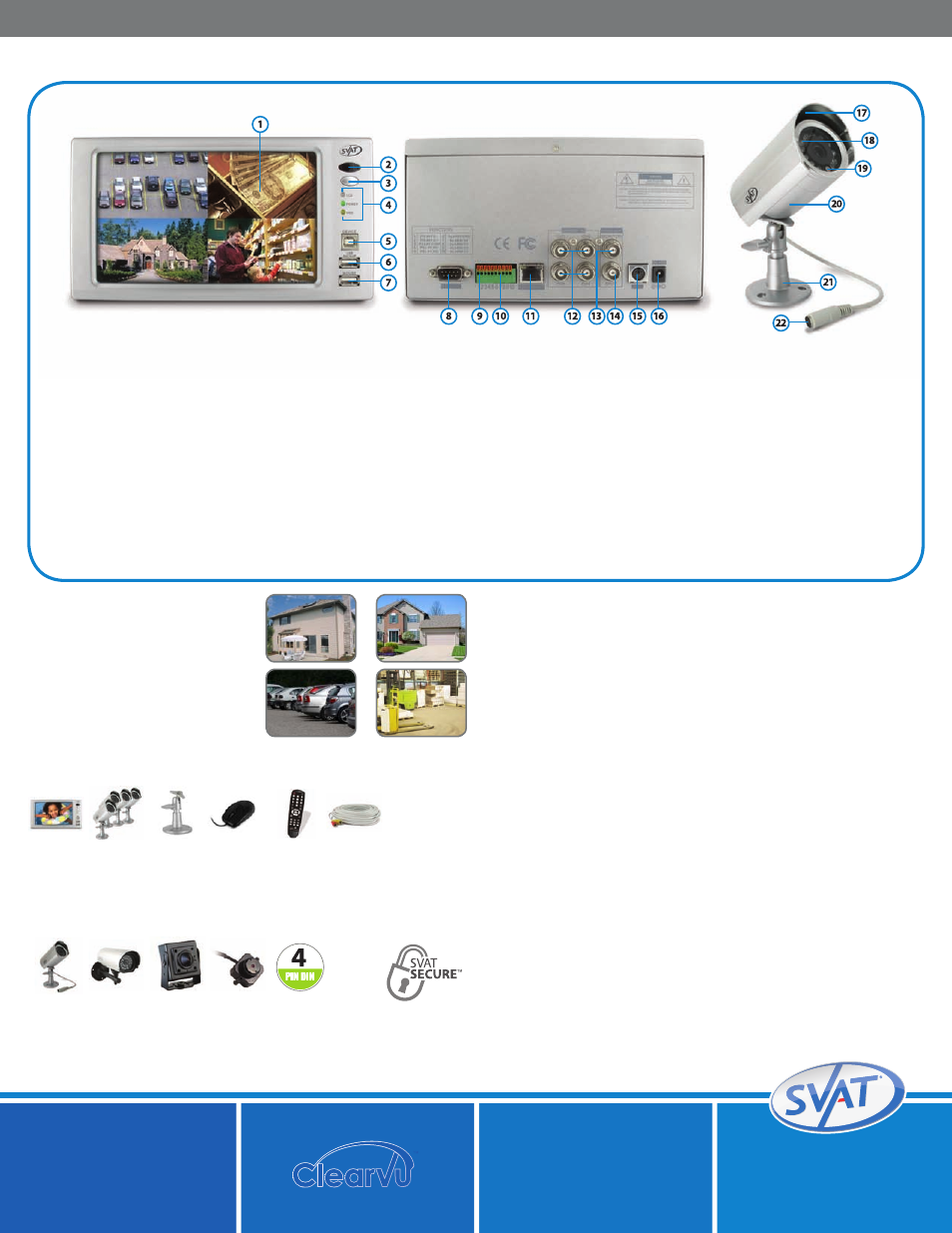

1. 7" LCD Screen
Watch your footage directly on the DVR.
2. Infrared Remote Sensor
Receives the signal from the remote control.
3. Screen On/Off Button
Turns LCD Monitor On / Off.
4. LED Indicators
LEDs light up when the LCD, Power or HDD are in use.
5. Device Port
Upgrade firmware through a PC USB connection.
(optional)
6. USB Port
Connect a USB flash drive or USB HDD for
backup purposes.
7. USB Mouse Port
Connect a USB mouse for easier control of the DVR.
8. RS-232C Port
Allows you to control the unit with a PC.
9. RS485 Port
Allows you to connect a pan/tilt/zoom (PTZ) camera
and control it with the DVR.
10. Alarm Input/Output
4 Alarm input sensors and 1 relay output.
11. Ethernet Port
For connection to your local area network and Internet.
12. BNC Video Inputs
Connects the cameras to the DVR.
13. BNC Video Output
For connection to your TV/monitor.
14. SPOT Video Output
Additional connection to your TV/monitor, only displays
video when motion recording is activated.
15. PS/2 Mouse Port
Allows you to control the unit with a PS/2 mouse.
16. Power Input
DC power input (12V).
17. Sun Shield
Helps prevent glare from bright lights.
18. Infrared (IR) LEDs
Allows the camera to see in the dark up to 15ft away.
19. CDS Sensor
Turns on the infrared LEDs when it gets dark.
20. Camera Housing
Made of anodized aluminum to prevent rust.
21. Camera Mount
Allows the camera to be desk or wall mountable.
22. Connection to Extension Wire
Converts to RCA.
4x 60ft Extension
Wires
