Technical Information
Model Door maximum
width Door maximum
height
72210106 38-5/8 ″ (98.1 cm) 70-1/2 ″ (179.1 cm)
Installation Notes
Install this product according to the installation guide.
Size the drain cutout to fit the drain assembly that will be
used.
Double studding is recommended for pivot shower door
installations.
Studs should be positioned roughly as shown.
Attach grab bars at the specified backer board locations only.
10" (25.4 cm)
4" (10.2 cm)
Note: Right and left end walls are the same, only mirrored.
16"
(40.6 cm) 13"
(33 cm) 13"
(33 cm)
4-1/2"
(11.4 cm)
D. Drain
Cutout
15-13/16"
(40.2 cm)
8"
(20.3 cm)
35-1/4"
(89.5 cm) 26"
(66 cm)
42-1/8" (107 cm) Min
42-1/4" (107.3 cm) Max
3-5/16"
(8.4 cm) OD
Drain Hole
1-5/8" (4.1 cm)
at Midpoint
34"
(86.4 cm)
1-1/4"
(3.2 cm)
72-1/2"
(184.2 cm)
77"
(195.6 cm)
5-1/2"
(14 cm)
4-1/2"
(11.4 cm)
42"
(106.7 cm)
18" (45.7 cm) Grab Bar
42" (106.7 cm) Grab Bar
22" (55.9 cm)
3" (7.6 cm)
46"
(116.8 cm)
1" (2.5 cm)
30" (76.2 cm)
Grab Bar
1"
(2.5 cm)
3-1/2"
(8.9 cm)
Backer board locations
1"
(2.5 cm)
3"
(7.6 cm)
Back Wall End Wall
21"
(53.3 cm)

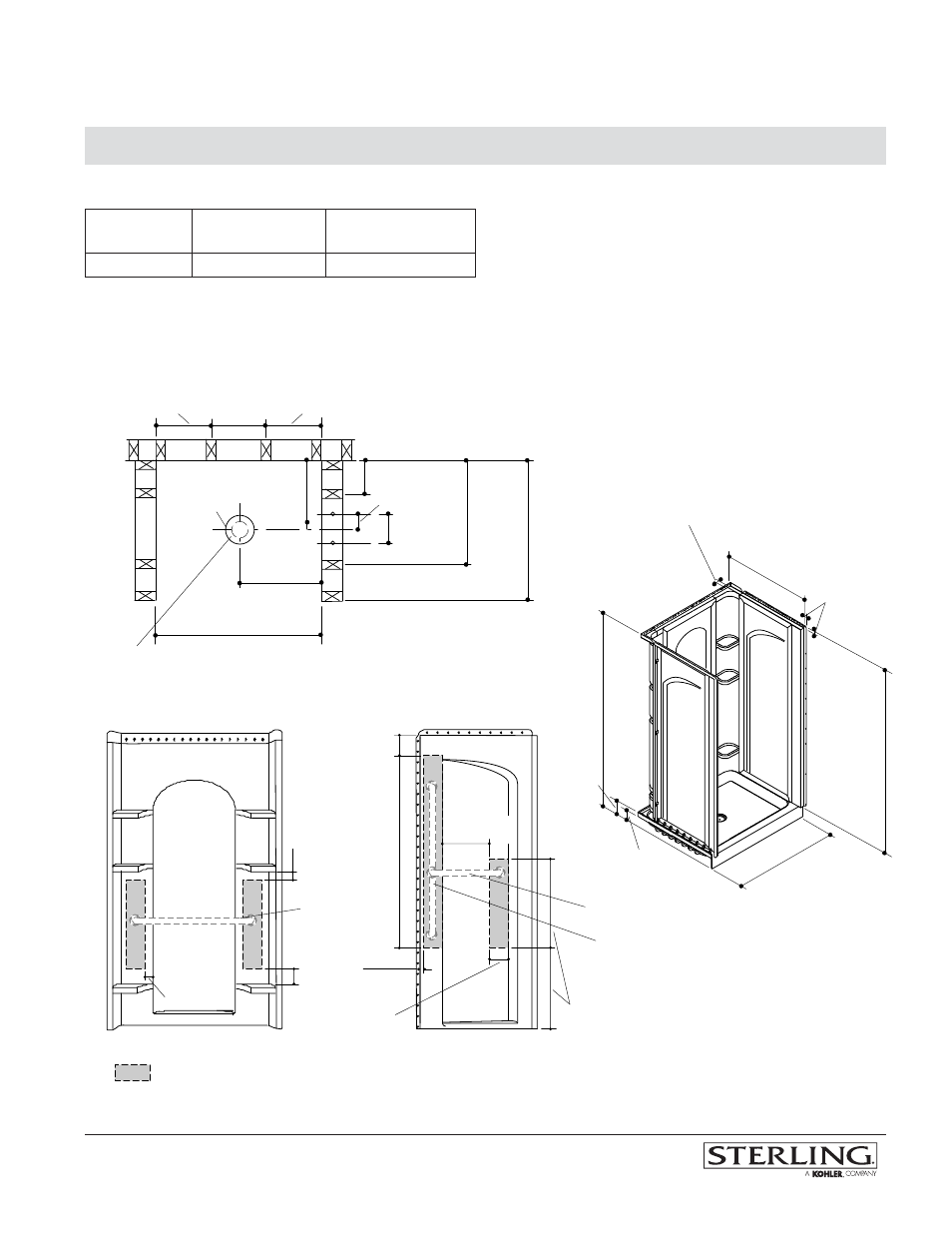

Product Diagram
ENSEMBLE
TM
ENSEMBLE
TM
42
″ (106.7 cm) SHOWER BASE AND SURROUND WITH BACKER BOARDS
Page 2 of 2
