Griplates™
1. The Griplates™ have M4, M5, M6 and M8 hole patterns to fit the hardware that the flat panel requires.
Example: If your display uses M8 x 20 Phillips head screws. Use the M8 mounting points (Figure 5).

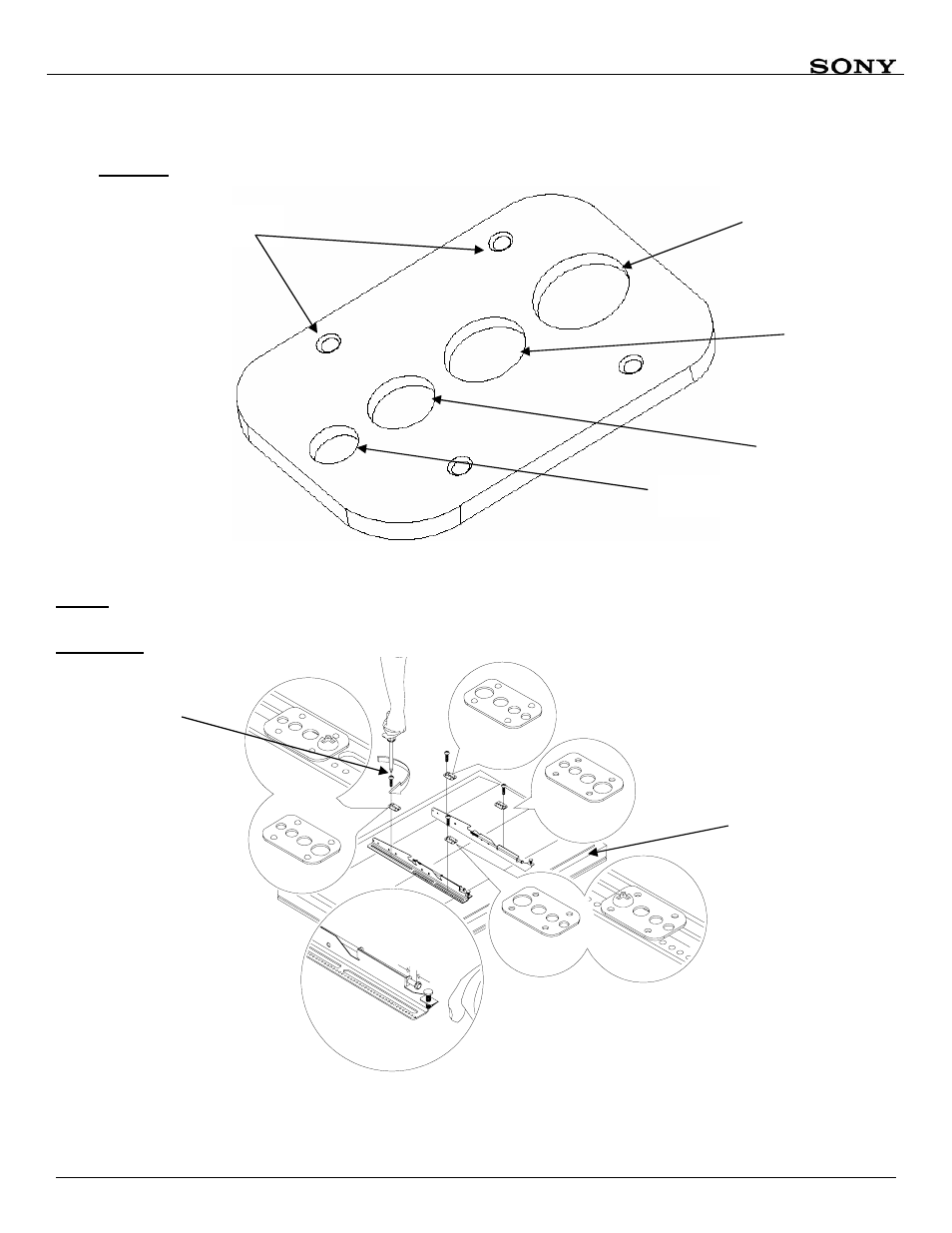

Figure 5. Griplates™ Orientation
2. Once the mounting brackets are aligned, secure the Griplate™ to the flat panel.
NOTE: The dimples of the top plates have to be facing up and the bottom dimples must be facing down. Use
(1) Griplate™ per mounting point (Figure 6).
CAUTION: Do not over tighten the mounting hardware.
DIMPLES
FACING UP
3/4"
DIMPLES
FACING UP
DIMPLES
FACING DOWN
DIMPLES
FACING DOWN
Figure 6. Griplate™ Attachment
Dimples
M8
M6
M5
M4
Phillips Screw
Driver
Bottom Flat Panel
