53

Additional Information

SLV-ED70MN (E) 3-865-382-11 (1)

STEREO
NICAM

SP

EP

LP

STOP
APC

START

CLOCK

NTSC

PAL

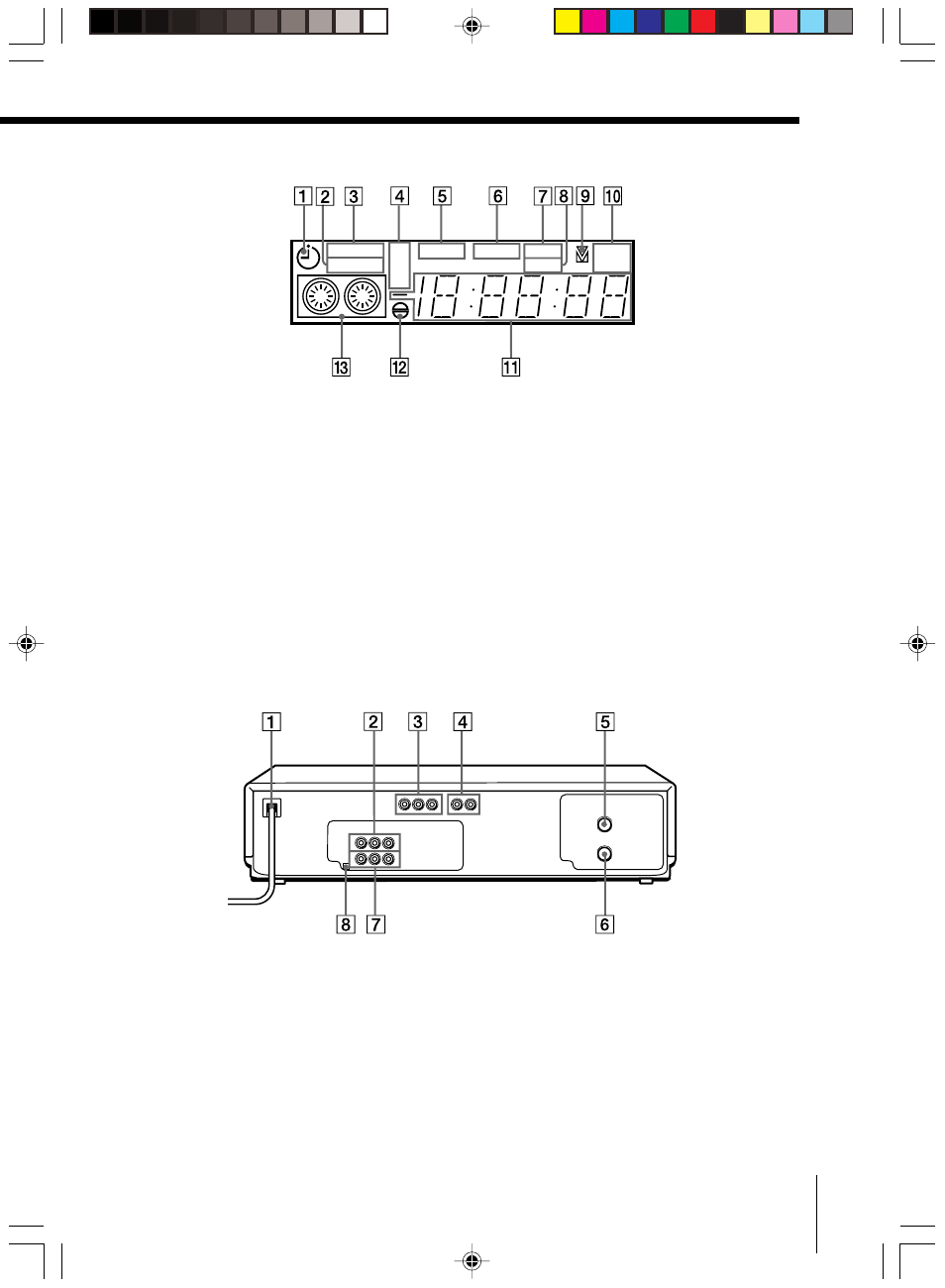

Display window

8 APC (Adaptive Picture Control)

indicator (43)

9 Tracking indicator (43)

0 Colour system indicator (20)

!¡ Time counter/clock/line/

programme/TV system indicator
(21, 23, 27, 35)

!™ Audio dubbing indicator (47)

!£ Tape/recording indicator (24)

1 Timer indicator (27)

2 NICAM indicator (40)

3 STEREO indicator (40)

4 Tape speed indicator (24)

5 CLOCK indicator (28)

6 START indicator (26)

7 STOP indicator (26)

Rear panel

1 Mains lead (6)

2 LINE-1 IN AUDIO R/L/VIDEO jacks

(40)

3 LINE-3 IN (SAT IN) AUDIO R/L/

VIDEO jacks (7)

4 LINE-2 OUT (AUDIO) AUDIO R/L

jacks (7)

5 AERIAL IN connector (6)

6 AERIAL OUT connector (6)

7 LINE-1 OUT AUDIO R/L/VIDEO

jacks (6)

8 NTSC PB (playback) switch (20)
