The following illustration shows how to
connect audio components such as Super
Audio CD player or CD player.
Note
When you play a Super Audio CD disc on a Super
Audio CD player, the sound is output only if you
make the connection to SA-CD/CD AUDIO IN
jacks (analog input jack) on the receiver. Refer to the
operating instructions supplied with the Super
Audio CD player.

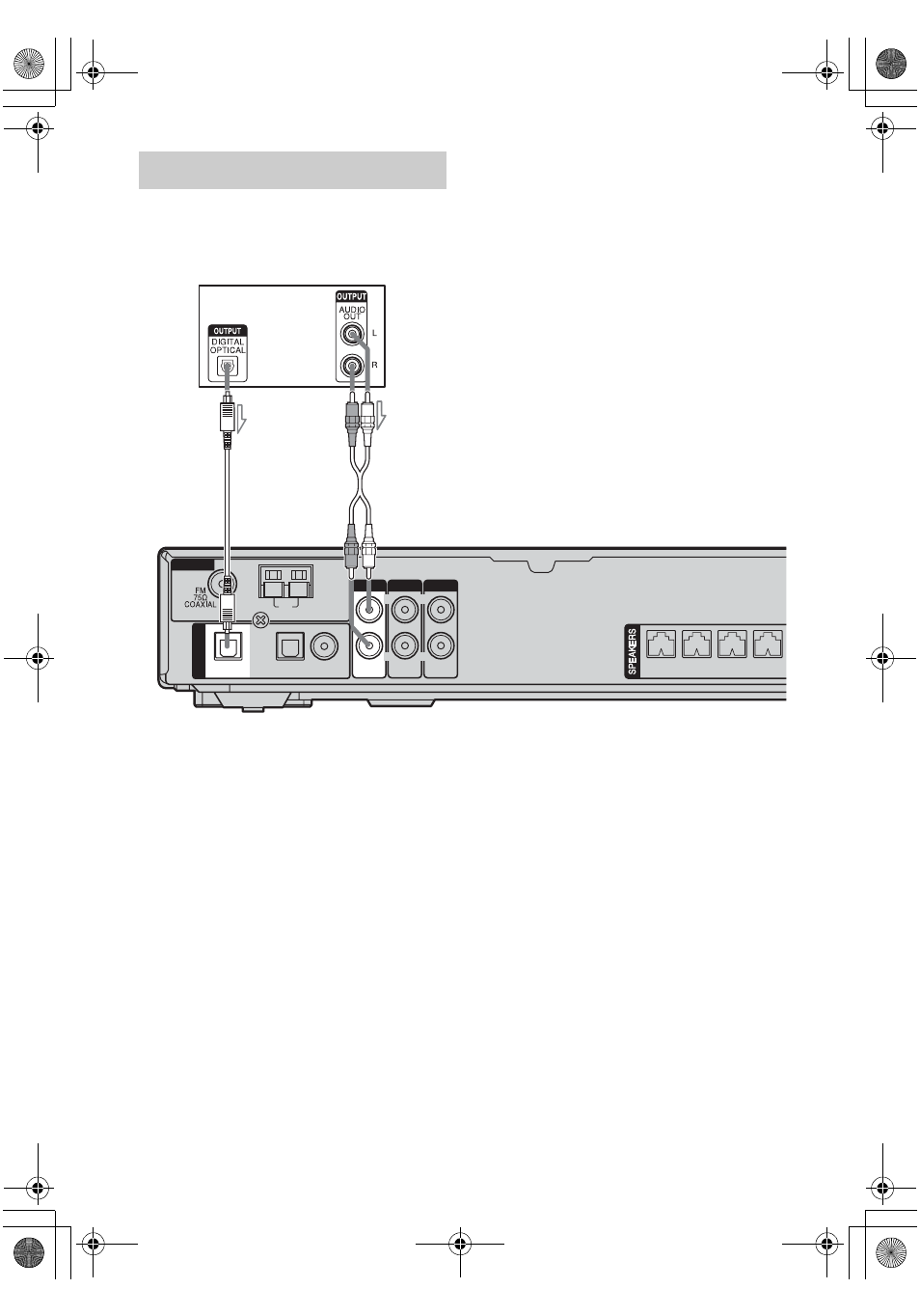

Connecting audio components
AUDIO IN
VIDEO 2
AUDIO IN
VIDEO 1
AUDIO IN
L
R
L
R
AM
ANTENNA
FRONT R
– +
FRONT L
– + – + – +
SUR R SUR L
U
DVD
COAX IN OPT IN
SA-CD/CD
OPT IN
VIDEO 2
DIGITAL
SA-CD/CD
Super Audio
CD player/
CD player
A B
A Optical digital cord (not supplied)
B Audio cord (not supplied)
