Step 4: Connecting the Subwoofer and Recorder

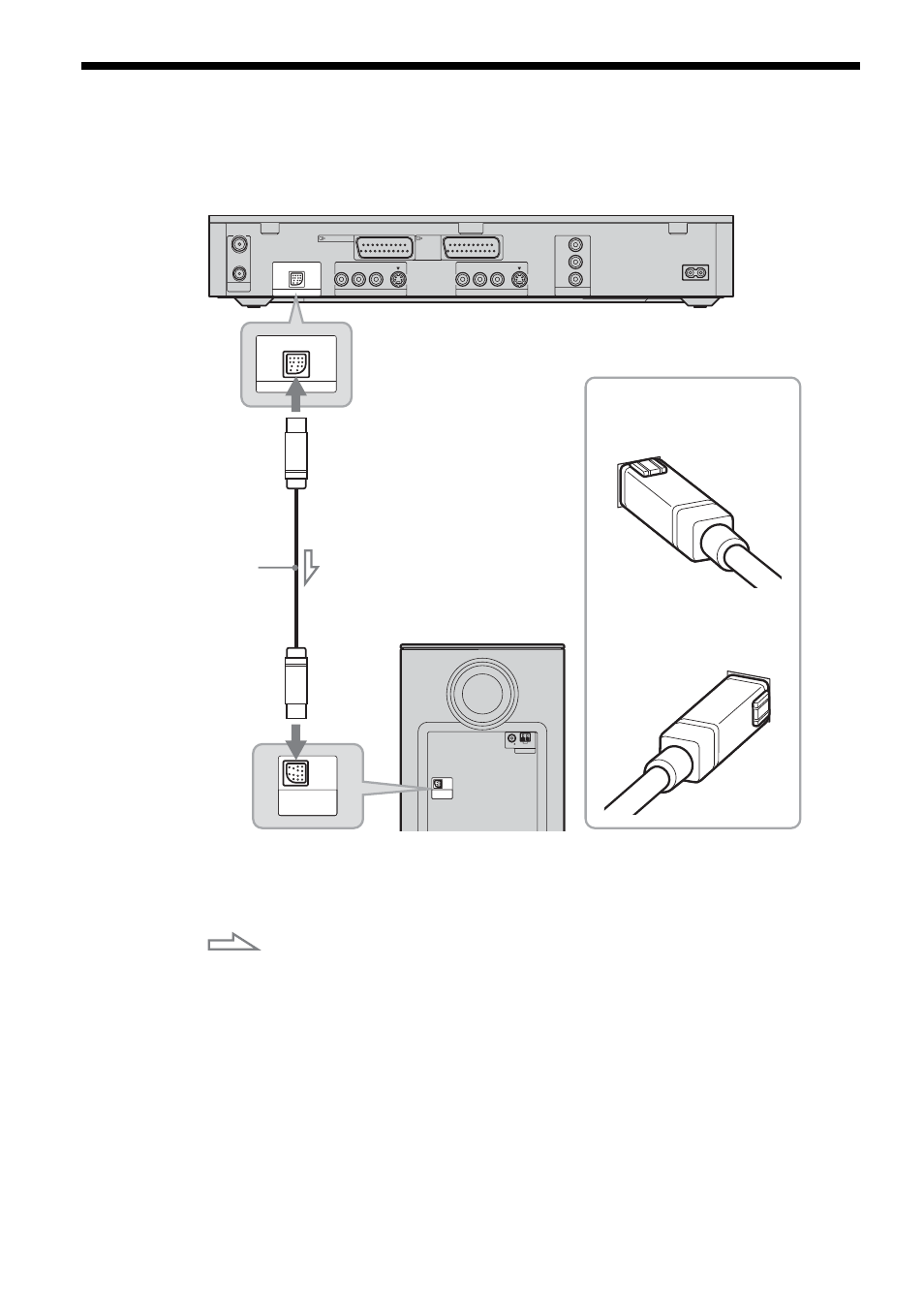

Connect the subwoofer and recorder using the supplied system cord.
AERIAL
IN
LINE 4 IN COMPONENT
VIDEO OUT
VIDEO S VIDEO R-AUDIO-L
LINE OUT
VIDEO S VIDEO R-AUDIO-L P B / C B
Y
P R / C R ~ AC IN
OUT
LINE 1 - TV LINE 3/
DECODER
SYSTEM CONNECTOR
AERIAL
AM FM75 COAXIAL
SYSTEM CONNECTOR
SYSTEM CONNECTOR
SYSTEM
CONNECTOR
DVD recorder
System cord
(supplied)
to SYSTEM CONNECTOR
Squeeze both
sides of the plug
and insert it fully
until it clicks.
Subwoofer
to SYSTEM CONNECTOR
: Signal flow
DVD recorder
Subwoofer
