Step 2: Connecting the Speaker System
For DAR-RH7000

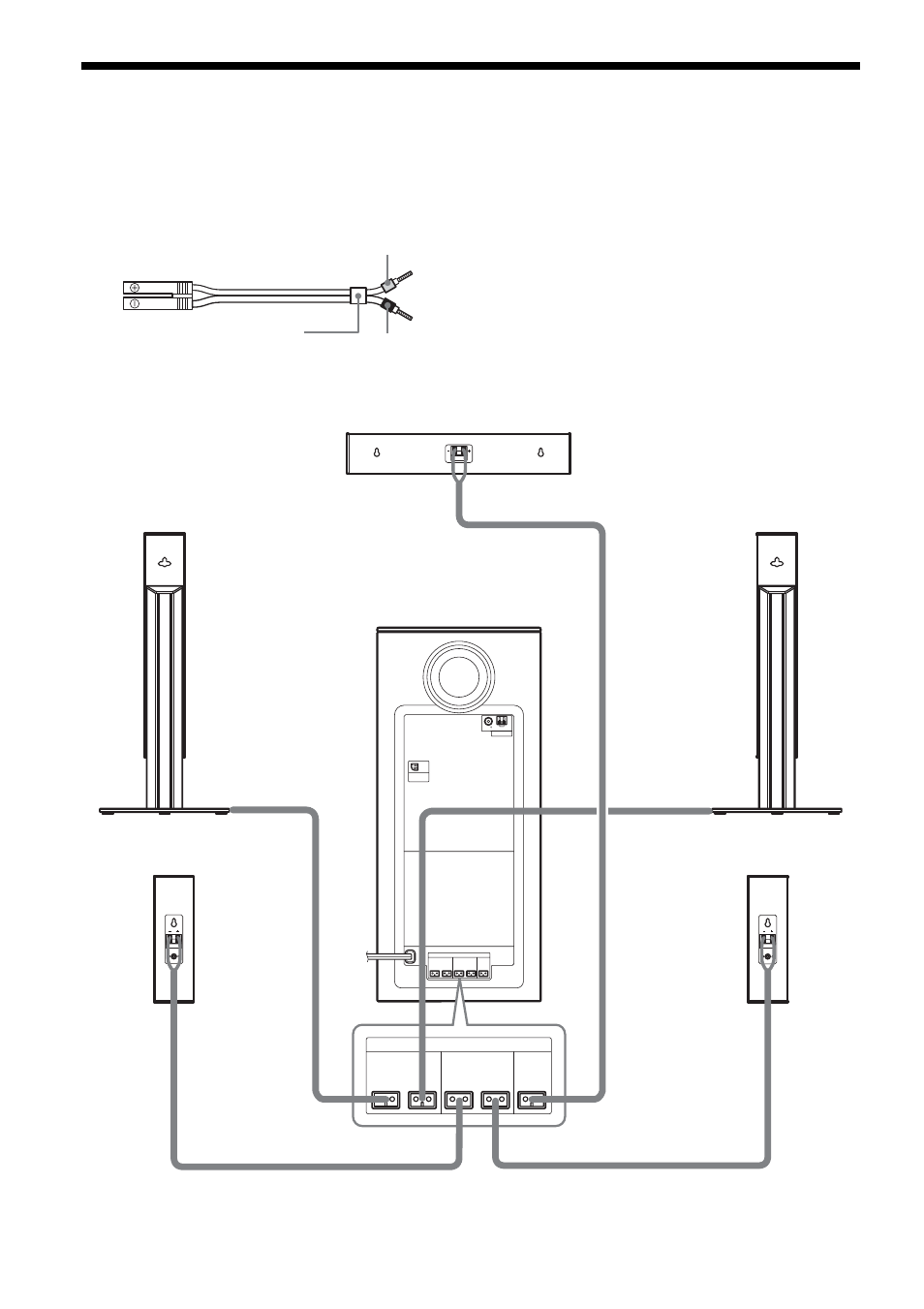

Connect the speaker system using the supplied speaker cords, matching the colours of the terminals with
the cords. For details on front speaker connection and speaker stands, see page 17.
Colour tube
Grey
Black
(–)
(+)
(–)
(+)
AERIAL
SYSTEM
CONNECTOR
AM FM75 COAXIAL
SPEAKERS
FRONT CENTER SURROUND
R L R L
SPEAKERS
FRONT CENTER SURROUND
R L R L
Front speaker (L) Front speaker (R)
Subwoofer
Centre speaker
Surround
speaker (R) Surround
speaker (L)
