Installation
]
12
b installation instructions for Vehicles with Aerial Type roof Mounted FM Antenna
For vehicles where the FM radio antenna is located on the front or rear of the
roof of the vehicle, the FM Extender Antenna should be mounted horizontally on
the front or rear glass below the FM antenna, or installed into the headliner of the
vehicle under the FM antenna

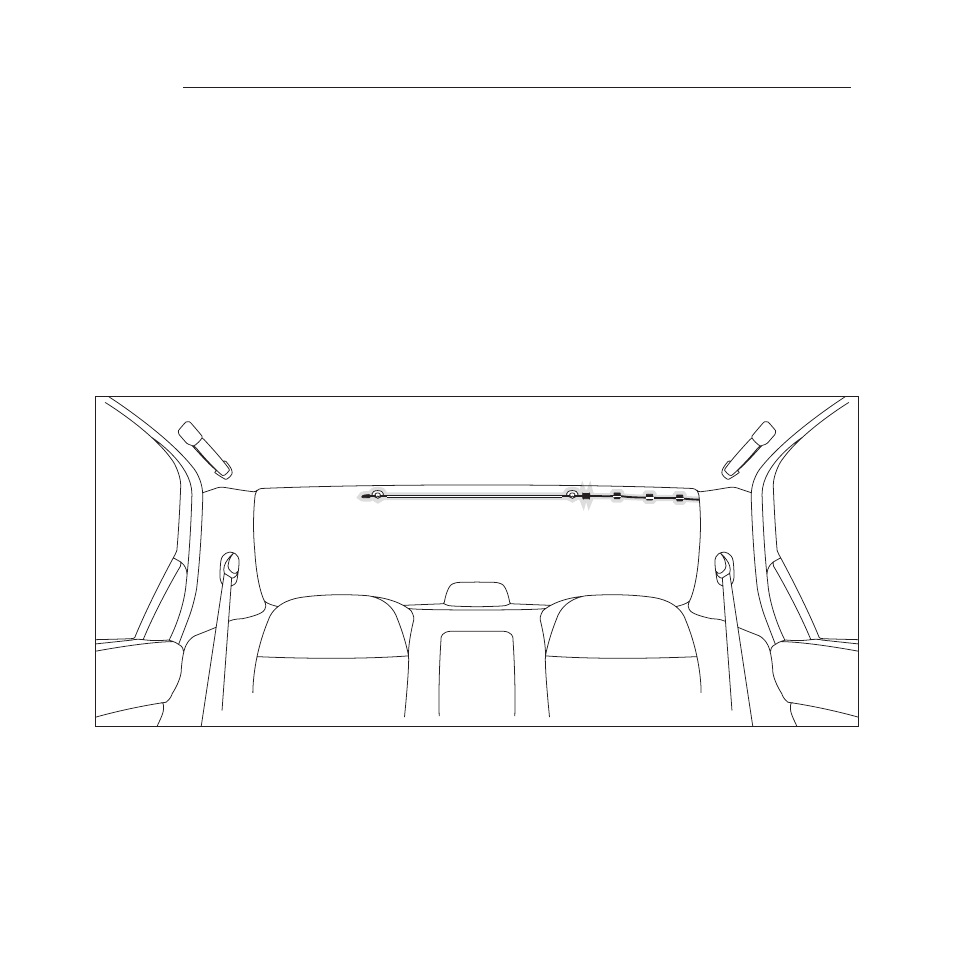

If you are installing the FM Extender Antenna on the window glass, clean the
area where the suction cups will be mounted with the supplied alcohol swab and
attach the suction cups to the glass under the FM antenna in a horizontal orienta-
tion The wire between the two suction cups should be pulled taut and as straight
as possible, and should not obstruct the driver’s view (Figure 4)
If you are installing the FM Extender Antenna into the headliner, remove the suc-
tion cups and tuck the wire into the headliner, stretched taut and straight, and
centered under the FM antenna
•
•
Figure 4
Figure 4
