XE195 / XE295 Elliptical
10

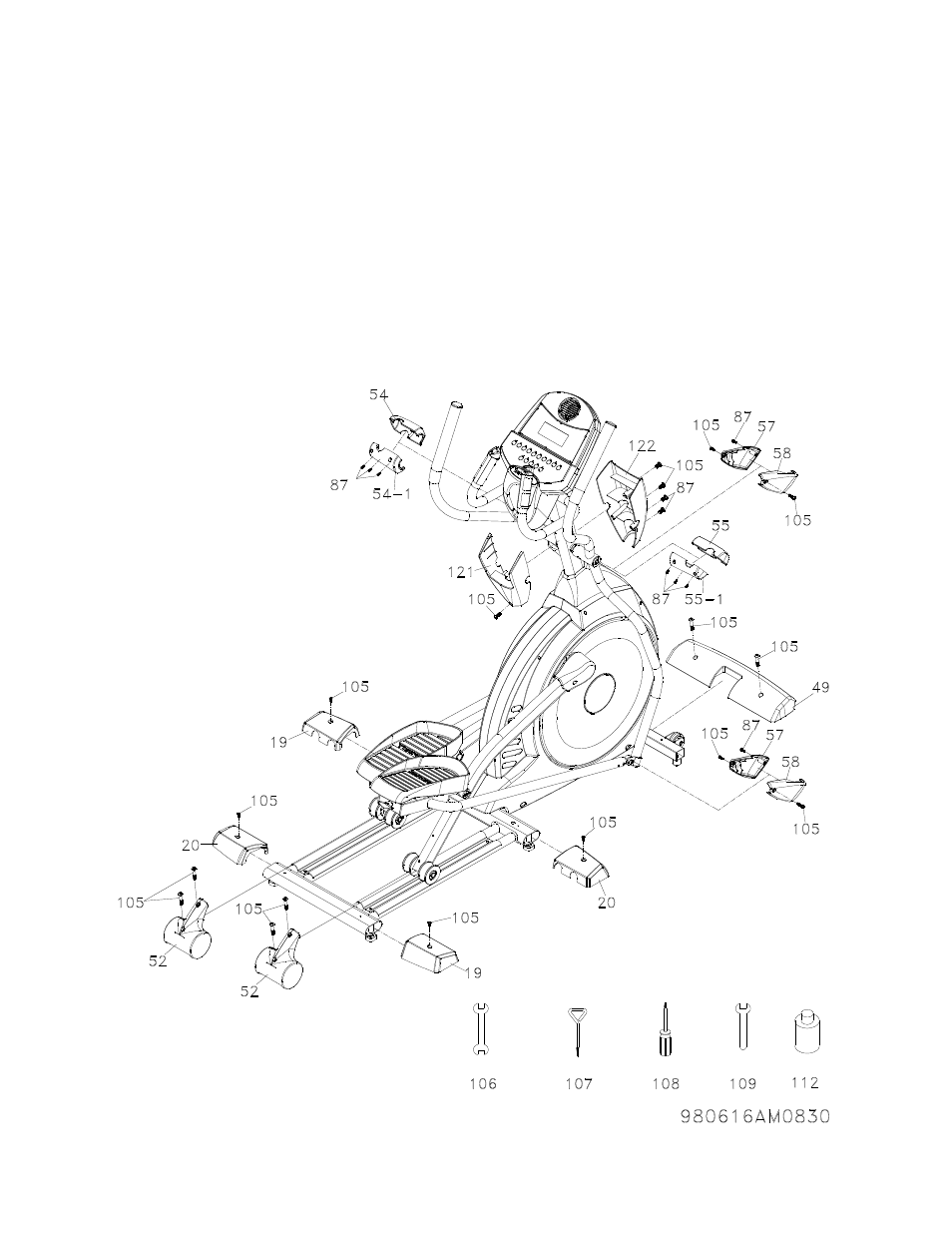

STEP 4: PLASTICS ASSEMBLY
1. Install the Connecting Arm Covers (2 each 57, 58) over the connection of the rod end and
Handle Bars with four M5 x 15m/m Screws and two 3.5x10m/m Self Tapping Screws by using
the Short Phillips Screw Driver.
2. Install the two Wheel Covers (52) using the four M5x15m/m Phillips Head Screws (105).
3. Locate the two Rear Stabilizer Covers (19,20) and two Middle Stabilizer Covers (19,20) for the
Rear Rail Assembly and install with four M5 x 15m/m Screws (105). Then install front stabilizer
cover (49) with two M5 x 15m/m Screws (105).
4. Install the Front Handle Bar Covers (54-1 left, 55-1 right) and Rear Handle Bar Cover (54 left,
55 right) over the Handle Bar axle connections with the six 3.5x10m/m Self Tapping Screws.
5. Install the front (122) and rear (121) console mast covers with three M5 x 15m/m Screws (105)
and two 3.5x12m/m Sheet Metal Screw (87).
