PARTS

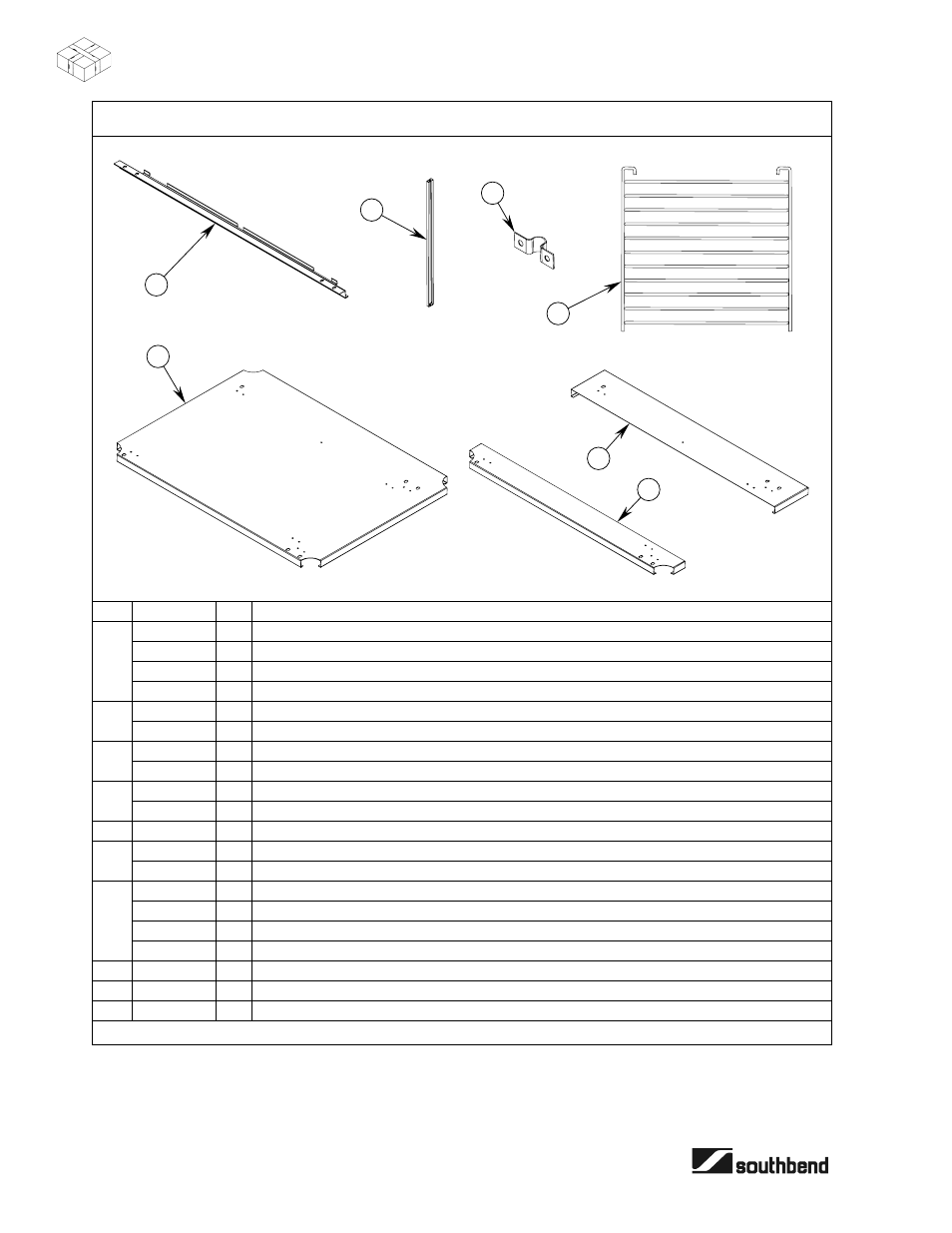

Storage Rack Parts
1
2
3
4
5
6
7
Key Part
Number Qty Description
1-5
1175506
1
Cooling rack kit, with shelf, shallow depth (for Marathoner Gold ovens built before January 1, 2002)
1184046
1
Cooling pan kit, with shelf, shallow depth (for SilverStar & Marathoner Gold ovens built after January 1, 2002)
1175507
1
Cooling rack kit, with shelf, bakery depth (for Marathoner Gold ovens built before January 1, 2002)
1184044
1
Cooling pan kit, with shelf, bakery depth (for SilverStar & Marathoner Gold ovens built after January 1, 2002)
1175508
1
Cooling rack kit, w/o shelf, shallow depth (only for Marathoner Gold ovens built before January 1, 2002)
1-4,
6, 7
1175509
1
Cooling rack kit, w/o shelf, bakery depth (only for Marathoner Gold ovens built before January 1, 2002)
1 1175296 2 Rack
hanger, G/E ser co (for Marathoner Gold ovens built before January 1, 2002)
1184022 2 Rack
hanger, G/E ser co (for SilverStar & Marathoner Gold ovens built after January 1, 2002)
2
1175514
1
Stop channel (for Marathoner Gold ovens built before January 1, 2002)
1184025
1
Stop channel (for SilverStar & Marathoner Gold ovens built after January 1, 2002)
3
6660
8
Clip, side rack support
4
1175438
2
Rack guide, 11 pos. shallow
1175439
2
Rack guide, 11 pos. bakery
5
1175294
1
Shelf, open rack, shallow (for Marathoner Gold ovens built before January 1, 2002)
1184019
1
Shelf, open rack, shallow (for SilverStar & Marathoner Gold ovens built after January 1, 2002)
1175295
1
Shelf, open rack, bakery (for Marathoner Gold ovens built before January 1, 2002)
1184023
1
Shelf, open rack, bakery (for SilverStar & Marathoner Gold ovens built after January 1, 2002)
6
1175504
1
Front channel frame (only for Marathoner Gold ovens built before January 1, 2002)
7
1175505
1
Rear channel frame (only for Marathoner Gold ovens built before January 1, 2002)
*
1146304
18
10 x 1/2 Phillips screw
* not shown on drawing.
