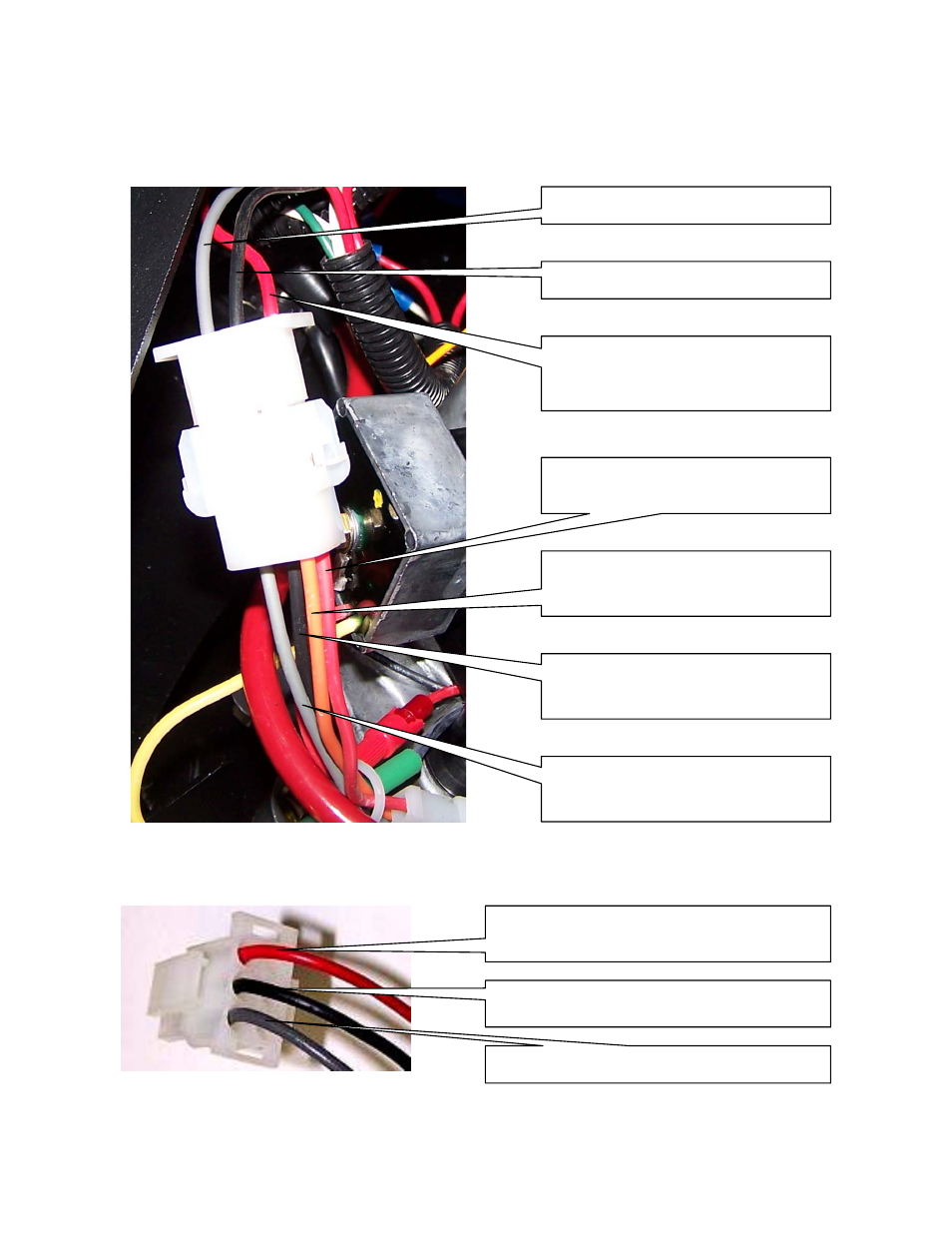

WIRE IDENTIFICATION ON ZT18542
Gray wire goes to ignition switch
Black wire goes to ignition switch
Red wire goes to terminal on
solenoid with the positive battery
cable
Red wire goes to engine charging
system
Orange wire is not used on this
application
Black wire goes to engine ignition
module
Gray wire goes to carburetor fuel
solenoid
WIRING HARNESS TO ENGINE PLUG CONNECTION
WIRING HARNESS PLUG TO ENGINE
Red wire goes to terminal on solenoid
with the positive battery cable
Black wire goes to the ignition switch
Gray wire to the ignition switch
