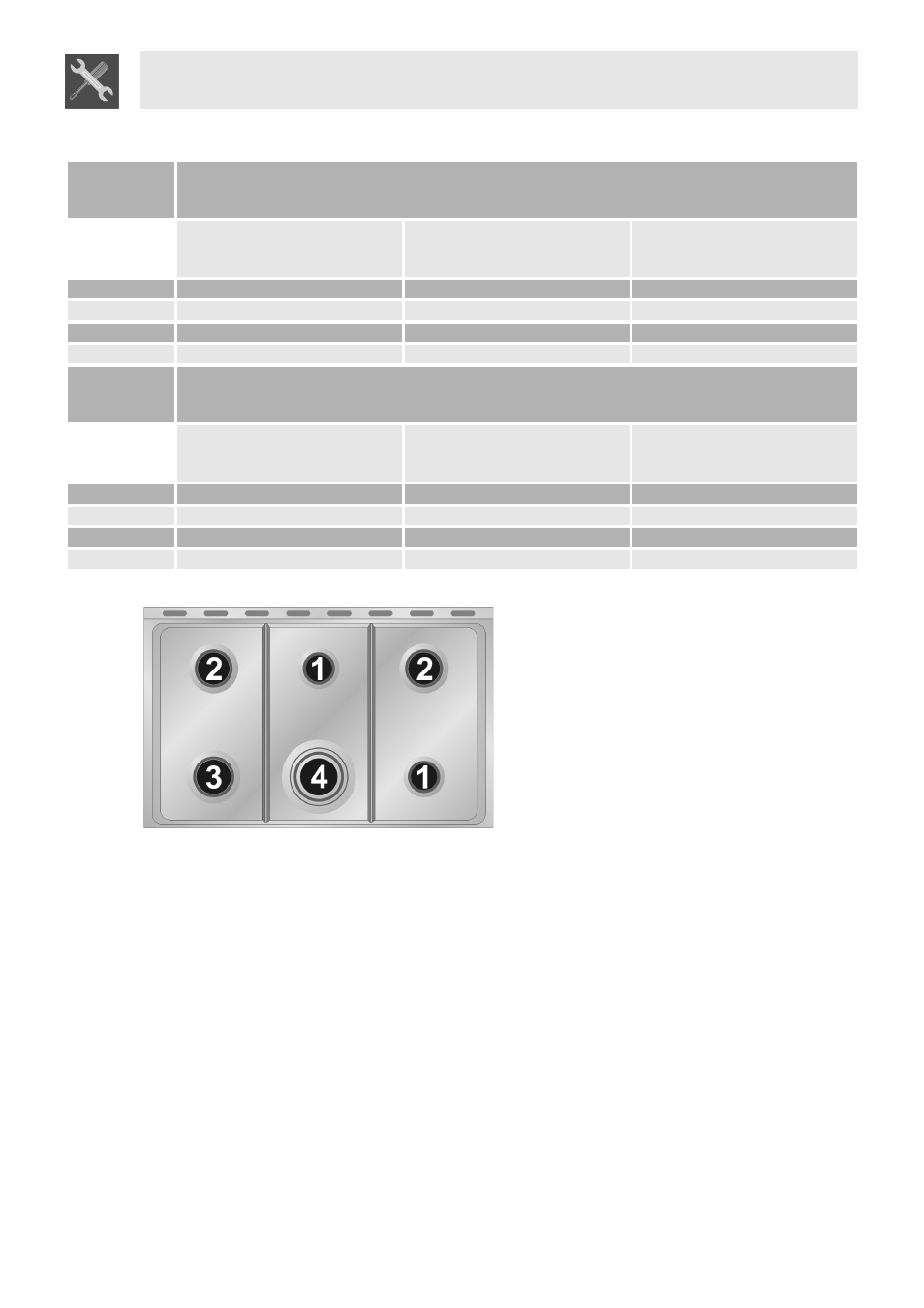

16.2 Burner and nozzle characteristics table
Burner
LPG (PROPANE)–2.75 KPA
NOMINAL GAS
CONSUMPTION
(MJ/H)
TURN-DOWN GAS
CONSUMPTION
(MJ/H)
INJECTOR
(MM)
Auxiliary
3.9
1.5
0.54
Semi rapid
6.3
1.5
0.68
Rapid
10.0
2.7
0.88
WOK
12.8
5.4
1.00
Burner
NG –1.0 KPA
NOMINAL GAS
CONSUMPTION
(MJ/H)
TURN-DOWN GAS
CONSUMPTION
(MJ/H)
INJECTOR
(MM)
Auxiliary
4.0
1.5
0.90
Semi rapid
7.0
1.5
1.20
Rapid
12.0
2.7
1.55
WOK
15.0
5.4
1.75
16.3 Arrangement of the burners on the hob
BURNERS
1 Auxiliary
2 Semi rapid
3 Rapid
4 WOK
ø min e max (in cm.)
12 - 14
16 - 24
18 - 26
18 - 26
