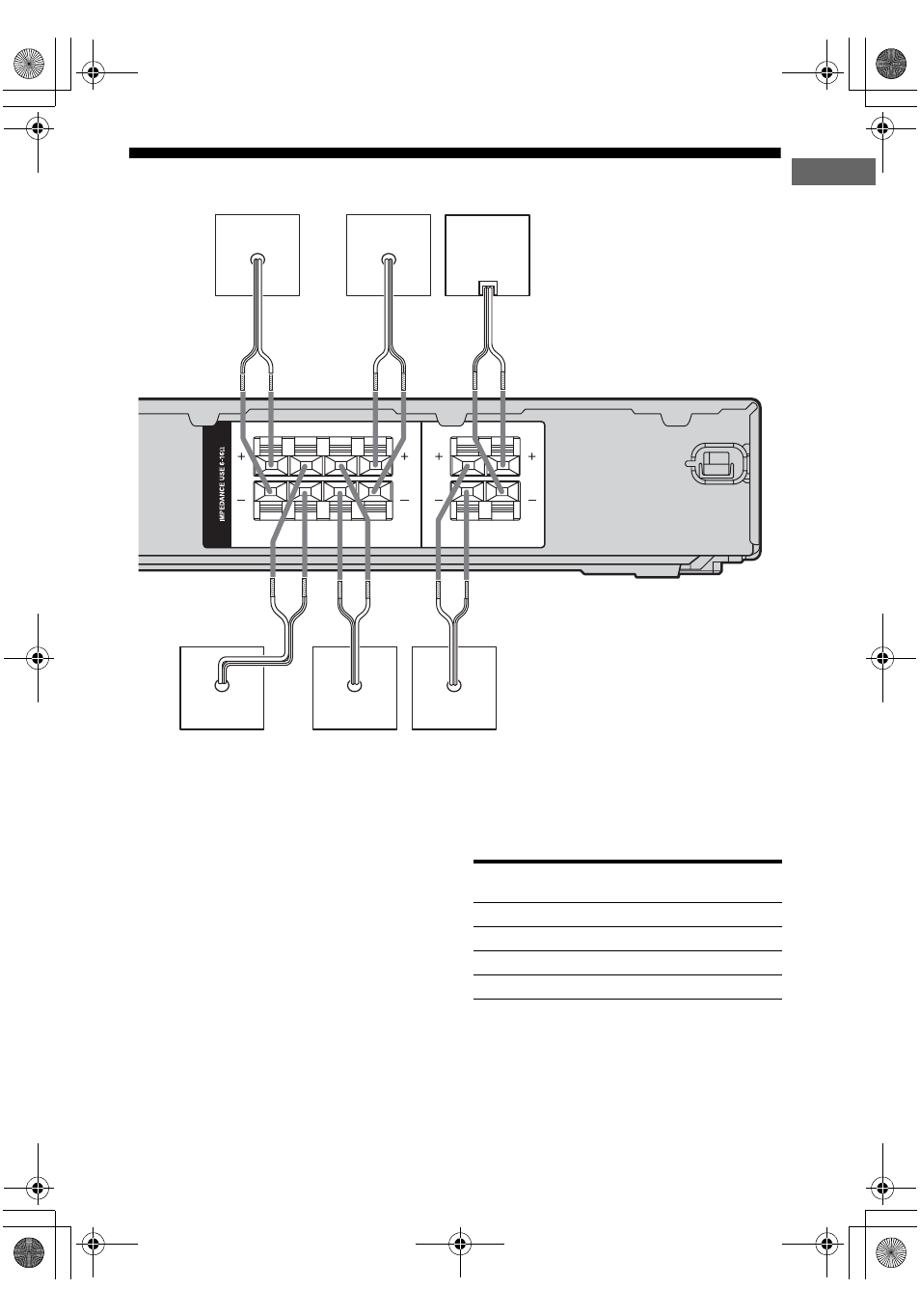

2: Connecting speakers
AFront speaker (Left)
BFront speaker (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
FSub woofer To connect the speakers
correctly
Check the speaker type by referring to the
speaker label* on the rear panel or at the
bottom of the speakers.
* The center speaker and sub woofer do not have any
character on the speaker label. For details on the
speaker type, see page 2.
Tip
Use the supplied speakers to optimize the system’s
performance.
L L R
R L
SPEAKERS
R
L R
FRONT SURROUND CENTER
SUB
WOOFER
B
C
F
A E
D
Character on
speaker label Speaker type
L Front left
R Front right
SL Surround left
SR Surround right
