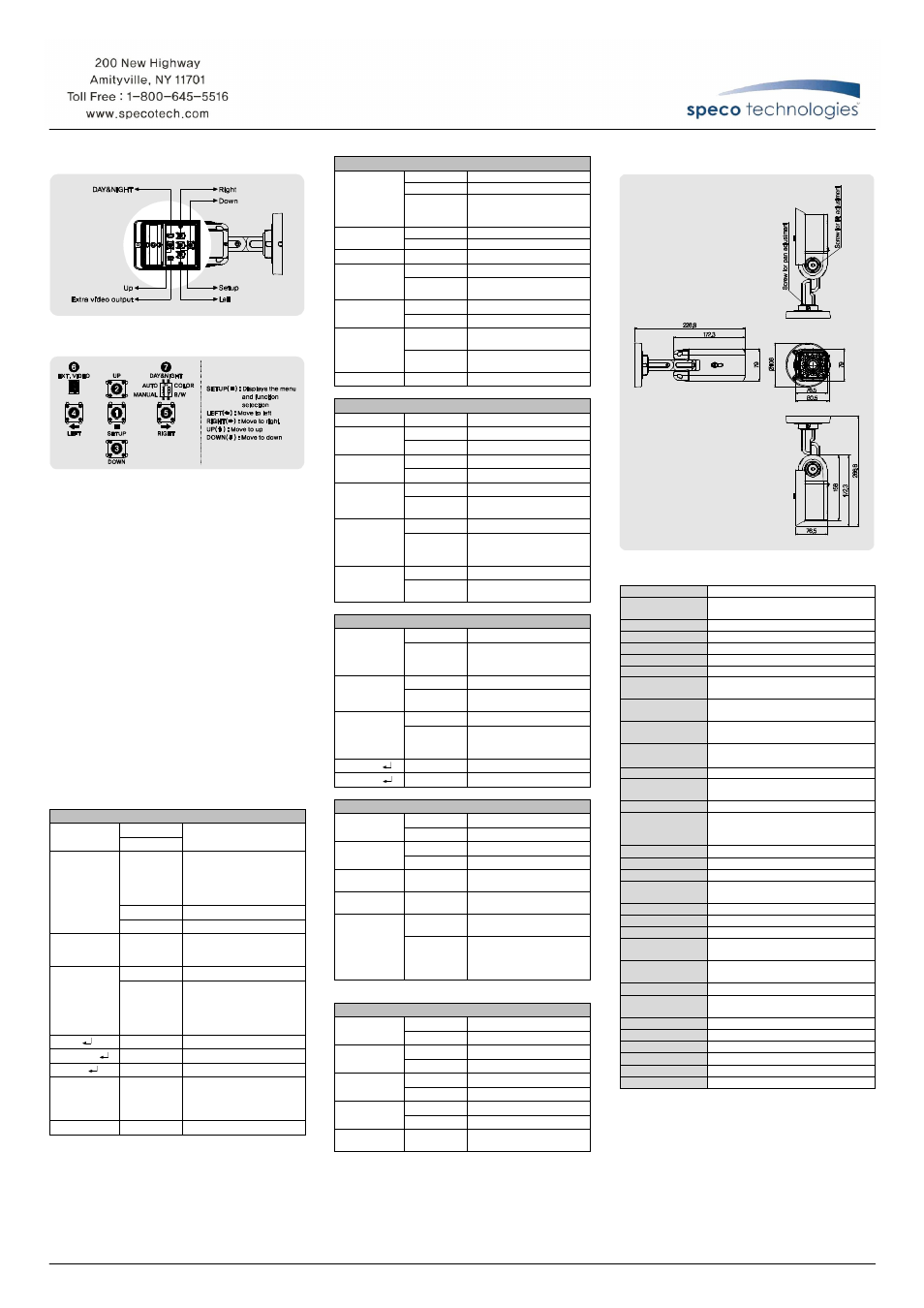

FUNCTIONS
1. Setup for camera functions
ㆍ
Function setting combination
ㆍ
OSD MENU
①
SETUP :
To access the main menu.
Push this button for 1 second.
②
TELE / UP :
To zoom in on a far object.(ZOOM-IN) /
Moves the arrow indicator to up.
③
WIDE / DOWN :
To widen the view (ZOOM-OUT) /
Moves the arrow indicator to down.
④
NEAR / LEFT :
To focus on a near object clearly. /
Moves the arrow indicator to the left.
⑤
FAR / RIGHT :
To focus on a far object clearly. /
Moves the arrow indicator to the right.
⑥
EXT. VIDEO :
Plug your test monitor in here.
⑦
DAY & NIGHT :
- AUTO : DAY & NIGHT auto
- MANUAL : DAY & NIGHT passive
Color : Color fixed regardless illumination.
B/W : B/W fixed regardless illumination.(IR ON)
2. Camera function setting
MAIN SETUP
CAMERA TITLE
OFF
Set Camera Title String and OSD
Display Position.
ON
WHITE BAL
ATW -Mode:
OUTDOOR
INDOOR
ATW is controlled by color tem-
perature range
*MODE
- INDOOR : 3000~10,500°K
- OUTDOOR : level
AWC→SET
ONE PUSH
MANUAL
RED / BLUE Adjustable.
BACKLIGHT
OFF / LOW /
MIDDLE /
HIGH
Backlight compensation.
MOTION
DETECTION
OFF
Motion detection off
ON
AREA(4 Programmable zone/
SIZE)
The words "MOTION DETECTED"
appear on the screen when move-
ment is detected.
FOCUS
Refer to focus setup
EXPOSURE
Refer to exposure setup
SPECIAL
Refer to special setup
RESET
Returns to the level which was
set by the manufacturer for ship-
ment.(except for communication
and Day & Night)
EXIT
Saves all settings, then exits.
FOCUS SETUP TABLE
MODE
AUTO
Focus is controlled automatically
MANUAL
Focus is controlled manually
ONE-PUSH
Focus is automatically adjusted
just once, after zoom position is
changed.
ZOOM TRK
OFF
Zoom tracking off
ON
Zoom tracking on
ZOOM SPEED
FAST/SLOW
Zoom speed Control
D-ZOOM
OFF
Digital zoom off
ON
Digital zoom limit selectable
(x2 ~ x10).
DIS ZOOM
MAG
OFF
Zoom magnification display off
ON
Zoom magnification display on.
ZOOM POS
INIT
OFF
When initialized, zoom position
is disabled.
ON
Zoom magnification set at power
on(x1 ~ x10)
LENS INIT
Execute lens initialization.
EXPOSURE SETUP TABLE
BRIGHTNESS
Brightness level adjustment.
IRIS
MANUAL
IRIS is controlled manually.
AUTO
IRIS is controlled automatically.
SHUTTER
MANUAL
Shutter is controlled manually
A. FLK
Anti-flicker
AGC
OFF
Automatic gain control off.
NORMAL /
HIGH
Automatic gain control limit set.
SSNR
OFF
Noise reduction off.
LOW /
MIDDLE /
HIGH
Noise reduction level set.
SENS-UP
OFF
Sense-up off
AUTO
Sense-up limit selectable
(x2 ~ x128)
SPECIAL SETUP TABLE
USER PRESET
OFF
Turns function off
ON
Using the position preset function,
8 sets of camera shooting condi-
tions can be stored and recalled.
PRIVACY
OFF
Privacy mask off
ON
AREA(4 Programmable zone)
/ SIZE / TONE adjustable.
SYNC
INT
Internal Sync.
LL
External Sync(can adjust desired
phase from 0° ~ 359°).
Trigger Signal: Auto Detection.
COMM ADJ
Refer to communication setup
IMAGE ADJ
Refer to communication setup
COMMUNICATION SETUP TABLE
CAM ID
OFF
ID not displayed
ON
Camera names are displayed
DISP CAM ID
OFF
Communication ID display off.
ON
Communication ID display on.
BAUD RATE
2400 ~ 57600
Baud-rate set
(factory default : 2400).
UART MODE
8-E-1 / 8-0-1 /
8-N-1
Parity bits selectable.
(factory default : 8-N-1)
RET PKT
DISABLE
Do not send a command back
to the control & device.
ENABLE
Returning the data when com-
munication.
(Caution : Activate this function
to use D&N.)
* Protocol: Pelco-D
IMAGE SETUP TABLE
FREEZE
OFF
Freeze image: OFF
ON
Freeze image: ON
H-REV
OFF
Horizontal reverse: OFF
ON
Horizontal reverse: ON
V-REV
OFF
Vertical reverse: OFF
ON
Vertical reverse: ON
SHARPNESS
OFF
Sharpness control is disabled.
ON
The Sharpness can be adjusted.
COLOR GAIN
The Color level can be adjusted
(0~100)
◈
DIMENSIONS
◈
SPECIFICATION
Model
HTB10X
Type
Weatherproof x10 optical motorized zoom
color camera
Image Sensor
1/4" SONY SUPER HAD CCD
Effective Pixel
768(H) X 494(V)
TV Type
NTSC
Scanning System
2:1 Interlace
Sync. System
Internal / Line lock
Scan. Freq.(HOR.)
INT : 15.734KHz
L/L : 15.750KHz
Scan. Freq.(VERT.)
INT : 59.94Hz
L/L : 60.00Hz
Resolution
580 lines resolution(IR ON)
560 lines resolution(IR OFF)
Video Output
1.0 Vp-p(Sync. Negative)
with 75Ω Termination
S/N Ratio
More than 50dB(weight ON)
Min. Illumination
0.05 Lux (F1.8) : LED OFF
0 Lux (40M range) : LED ON
Gamma
r = 0.45
Shutter Speed
Auto(x128 ~ 1/60 ~ 1/120,000sec)
Sense-up and Sense-up limit is selectable,
Flickerless
White Balance
ATW / AWC / Manual(1,800 ~ 10,500°K)
SSNR
LOW / MIDDLE / HIGH / OFF
Motion Detection
ON / OFF(4 programmable zone per screen)
Privacy Function
ON / OFF(32 zones, It consists of 8 group
4 programmable, zone per screen)
Flip
Vertical, Horizontal, Vertical-Horizontal, OFF
Preset
8 position
OSD
Yes
ZOOM
Optical zoom 10X,
Digital zoom 10X
FOCAL Length
f = 3.8(W) ~ 38.0(T)
F 1.8(W) ~ F 2.8(T)
Angle of View
51.2°(Wide End), 5.58°(Tele End)
Min. Working
Distance
0.1M
Communication
RS-485
Power Supply
24 Volts AC, 12 Volts DC - Dual Voltage
Current Consumption Max. 600mA
Operation Temp.
-20 °F to 140 °F
Dimension
3.1”W x 3”H x 6.8”L
Weight
3.3 Ibs.
※
The specification is subject to change without any prior
notice to improve the quality.
Rev. 1/25/10.
