8

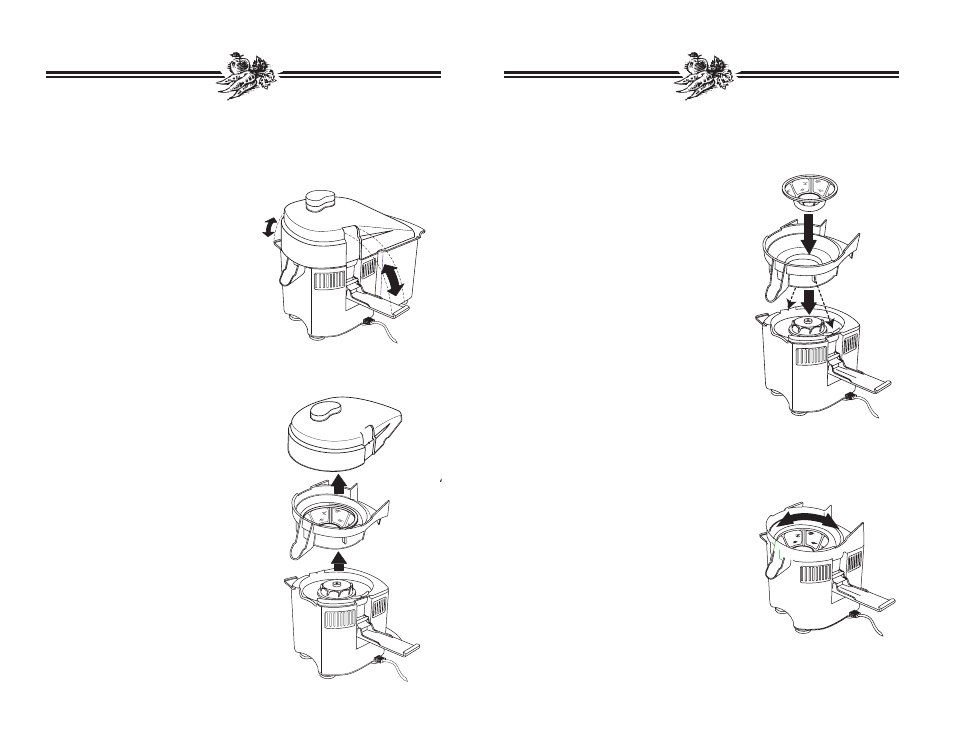

Step One

Place Juice Bowl on top of the Motor Base.
The Juice Spout fits over the front of the
Juicer. Two tabs located on the underside of
the Juice Bowl should rest in the two
complimentary slots on top of the Motor Base.
The tabs and slots are located by each Clamp.
See illustration.

Step Two

Set the Blade Basket on the Motor Hub in the
center of the Juice Bowl, and press down on the
outer rim until it feels snug.

Step Three

Gently rotate the Blade Basket to ensure that it
turns freely. If initially it failed to seat, this
should slip it into place. Double check by
pressing down and spinning it again.

ASSEMBLY INSTRUCTIONS

ALWAYS MAKE SURE JUICER IS UNPLUGGED
BEFORE STARTING ASSEMBLY.

7

DISASSEMBLY INSTRUCTIONS

ALWAYS MAKE SURE JUICER IS UNPLUGGED
BEFORE STARTING DISASSEMBLY.

Step One

Remove the Clamps by bracing each
thumb on the top or middle of each
Clamp. Use one or two fingers to pull
out the bottom of each Clamp. Let the
Clamps hang from the sides by the
lower hinges.

Step Two

Lift Juicer Cover up and off the Juicer.

Step Three

Lift off the Juice Bowl and Blade
Basket as one piece. These two pieces
will then easily come apart for easy
cleaning. Please follow the procedures
outlined in the CLEANING YOUR
JUICER section of this Instruction
Manual for specific cleaning
instructions.

CAUTION: Handle Blade Basket
with care due to sharp points.
