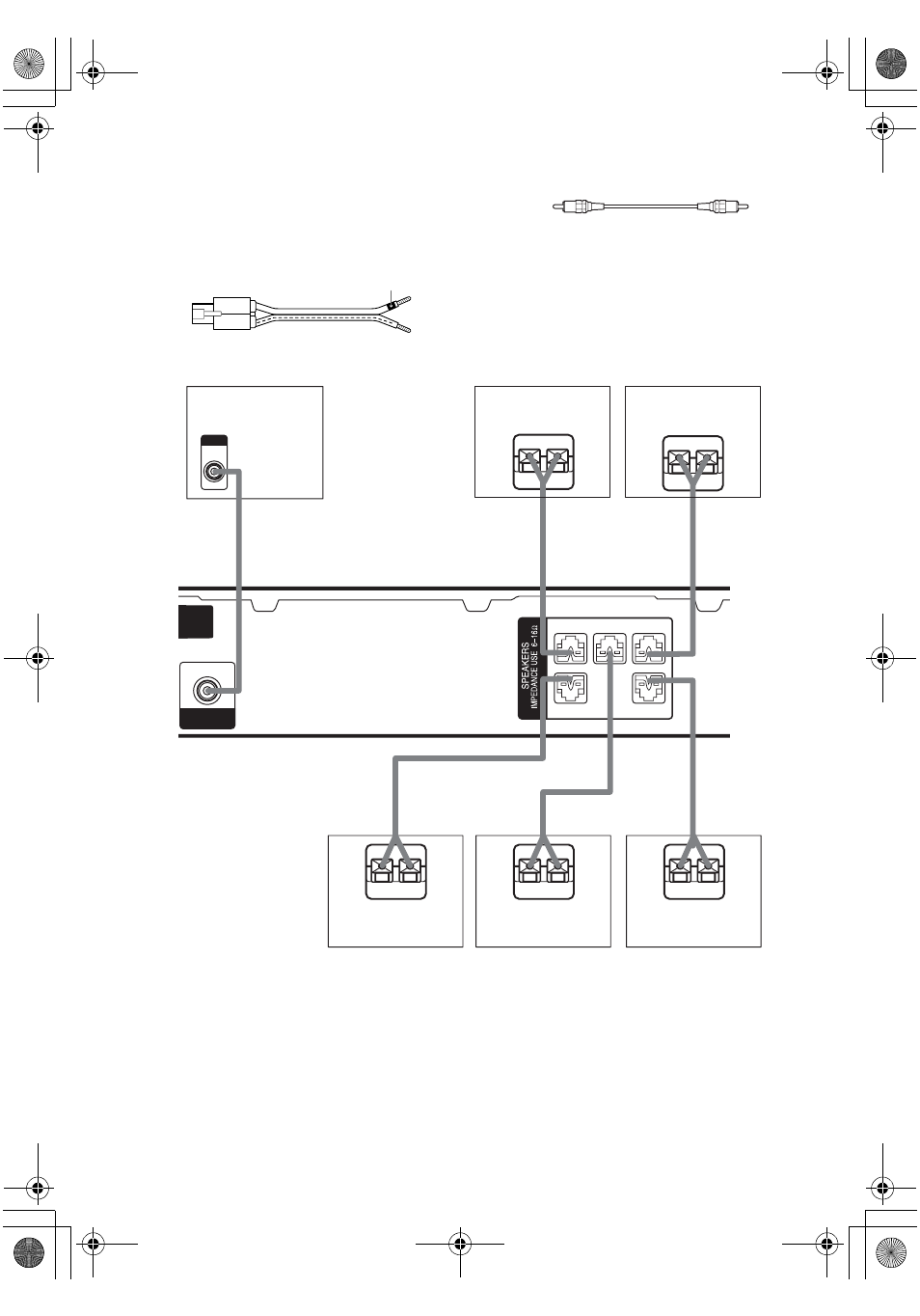

Required cords
A Speaker cords (supplied)
The connector and the colour tube of the speaker
cords are the same colour as the speaker terminal
to be connected.
B Monaural audio cord (supplied)
Black
Note
Before you connect the speakers, attach the colour labels onto the speakers so that you can identify the speakers to
be connected.
+
–
Colour tube
FRONT R
– + – +
FRONT L
+ – + –
SURR R SURR L
– +
CENTER
SUB
WOOFER
OUT
MONITOR
OUT
E e
A
INPUT
B
E e
A
E e
A
E e
A
E e
A
Front speaker
(Right)
Front speaker
(Left)
Subwoofer
Surround speaker
(Right)
Surround speaker
(Left)
Center speaker
