OPERATION (CONT.)

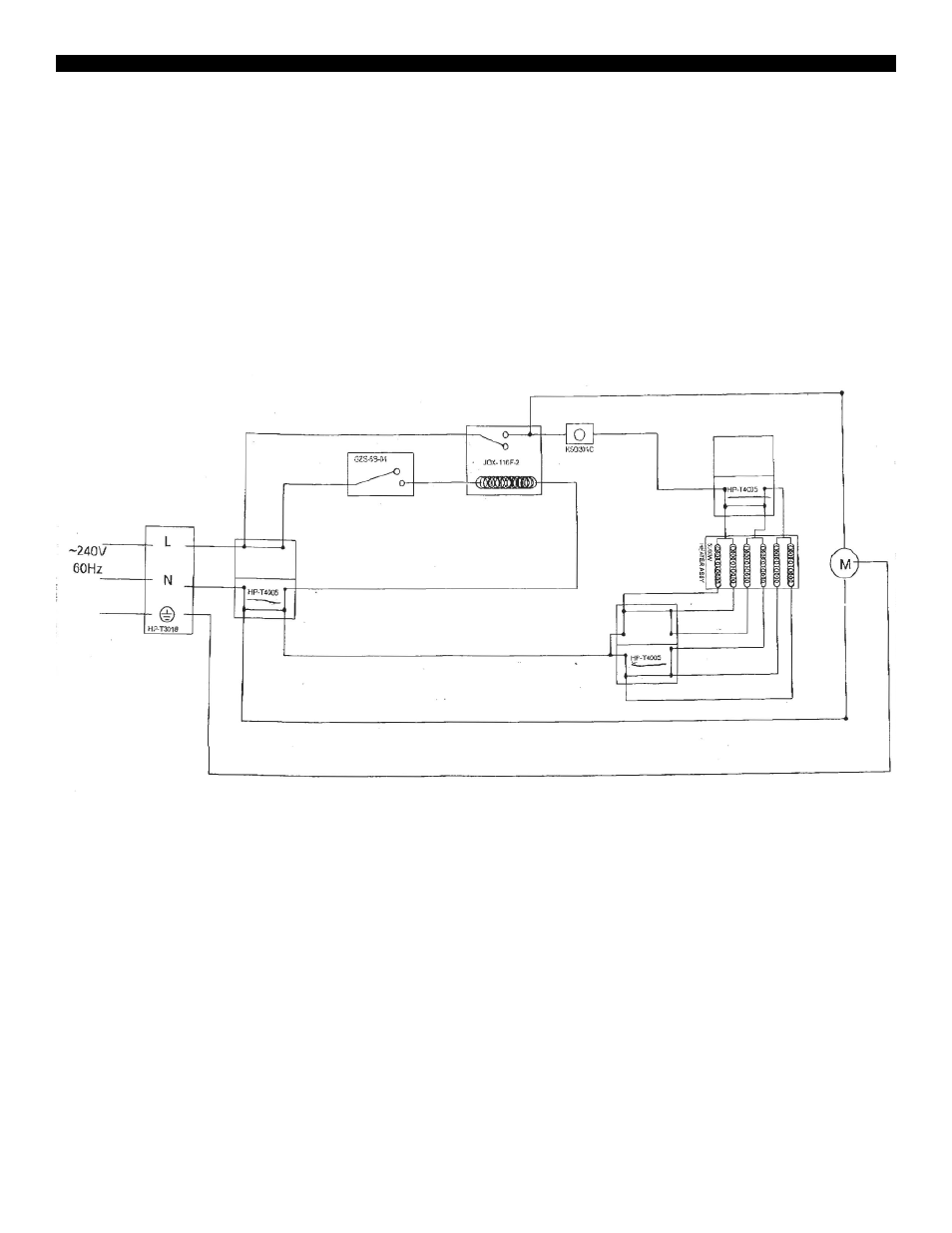

WIRING DIAGRAM
1. It is recommended that #10 AWG wire be used in all installations for possible future reconnection
at a higher wattage (Refer to the National Electric Code (NEC) for maximum run length to mini-
mize voltage drop to 3% max. Circuit runs exceed 100 ft. may require larger conductor size).
2. Wires should be routed through the indicated element jumper wire eliminating the use of a wire
tie.
10
