Soleus Air KC-30H / KC-35H - Manual (Page 10)

8

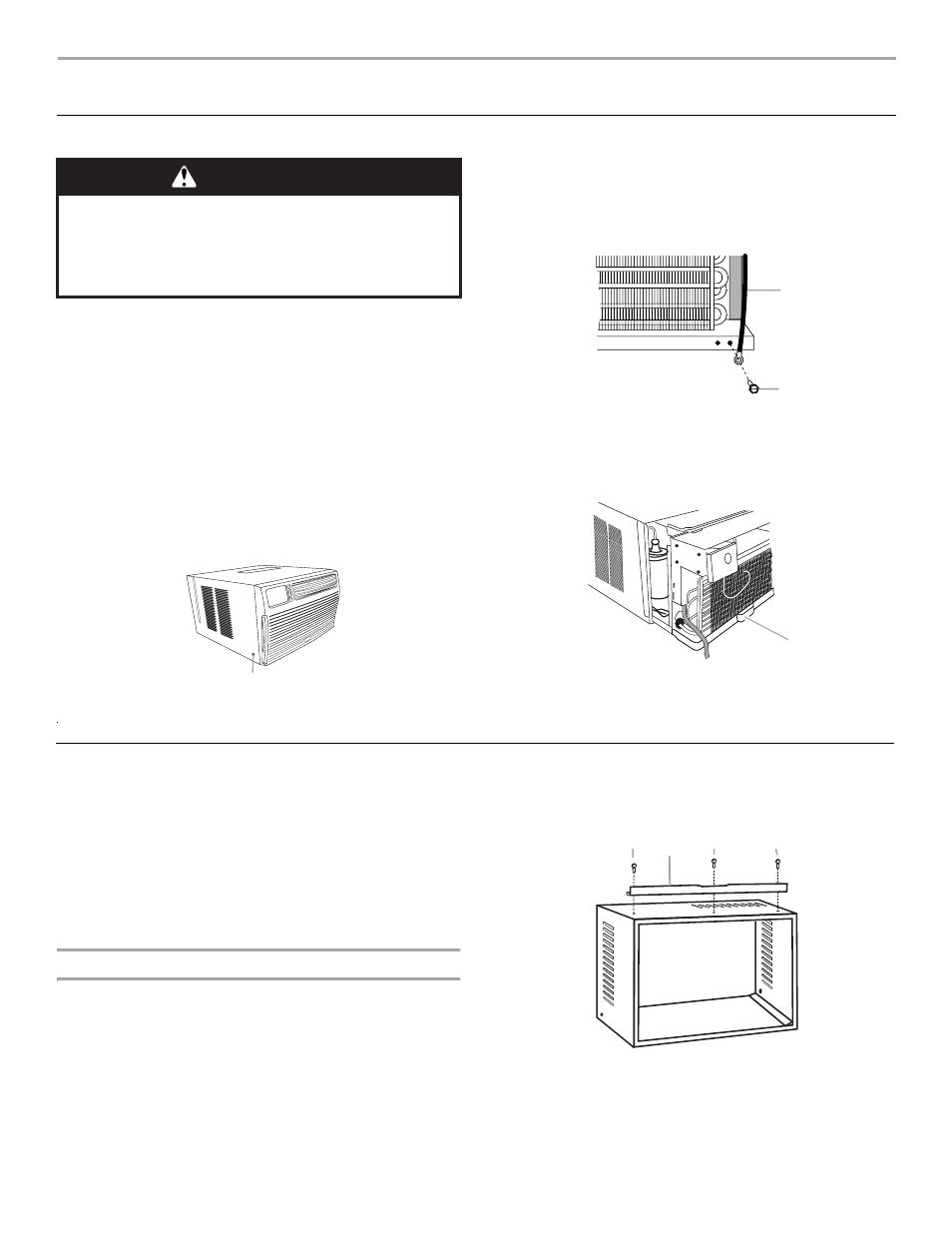

INSTALLATION INSTRUCTIONS
Unpacking
Remove packaging materials
■ Remove and dispose of/recycle all packaging materials.
Remove tape and glue residue from surfaces before turning
on the air conditioner. Rub a small amount of liquid dish soap
over the adhesive with your fingers. Wipe with warm water
and dry.
■ Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your air conditioner.
■ Handle air conditioner gently.
1. Remove air conditioner from carton and place it on
cardboard.
2. Remove shipping screws from both sides of cabinet.
3. Remove front panel by removed 2 phillips screws on both
4. Remove ground screw and ground wire from front of air
conditioner base. Save ground screw.
5. Pull on handle to slide air conditioner out of cabinet. Place air
conditioner on cardboard.
NOTE: Do not lift, push, pull or remove any expanded
polystyrene (foam) from inside the air conditioner. It is not
packing material.
Window Installation (on some models)
NOTES:
■ Handle air conditioner gently.
■ Be sure your air conditioner cabinet does not fall out of the
opening during installation or removal.
■ The location where the power cord exits the air conditioner
should be no more than 4 ft (122 cm) from a grounded
3 prong outlet.
■ Do not block the louvers on the front panel.
■ Do not block the louvers on the outside of the air conditioner.
Attach Top Channel
NOTE: Attach top channel and side curtains to air conditioner
cabinet before placing cabinet in window.
1. Locate supplied bag of screws.
2. Place top channel on top of air conditioner cabinet, lining up
the 3 holes in top channel with the 3 holes on top of air
conditioner cabinet.
3. Using 3 - #10 x ³⁄₈" pan-head Phillips screws, attach top
channel to air conditioner cabinet.
A. Shipping screw
Excessive Weight Hazard
Use two or more people to move and install
air conditioner.
Failure to do so can result in back or other injury.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
air conditioner.
Failure to do so can result in back or other injury.
A
A. Green ground wire
B. Ground screw
A. Handle
A
B
A
A. Top channel
B. #10 x
³⁄₈
" pan-head Phillips screws (3)
A B B B
bottom left right sides of front.
3A: Remove both knobs from control panel.
6. Remove any paking foam from inside of unit.
