11

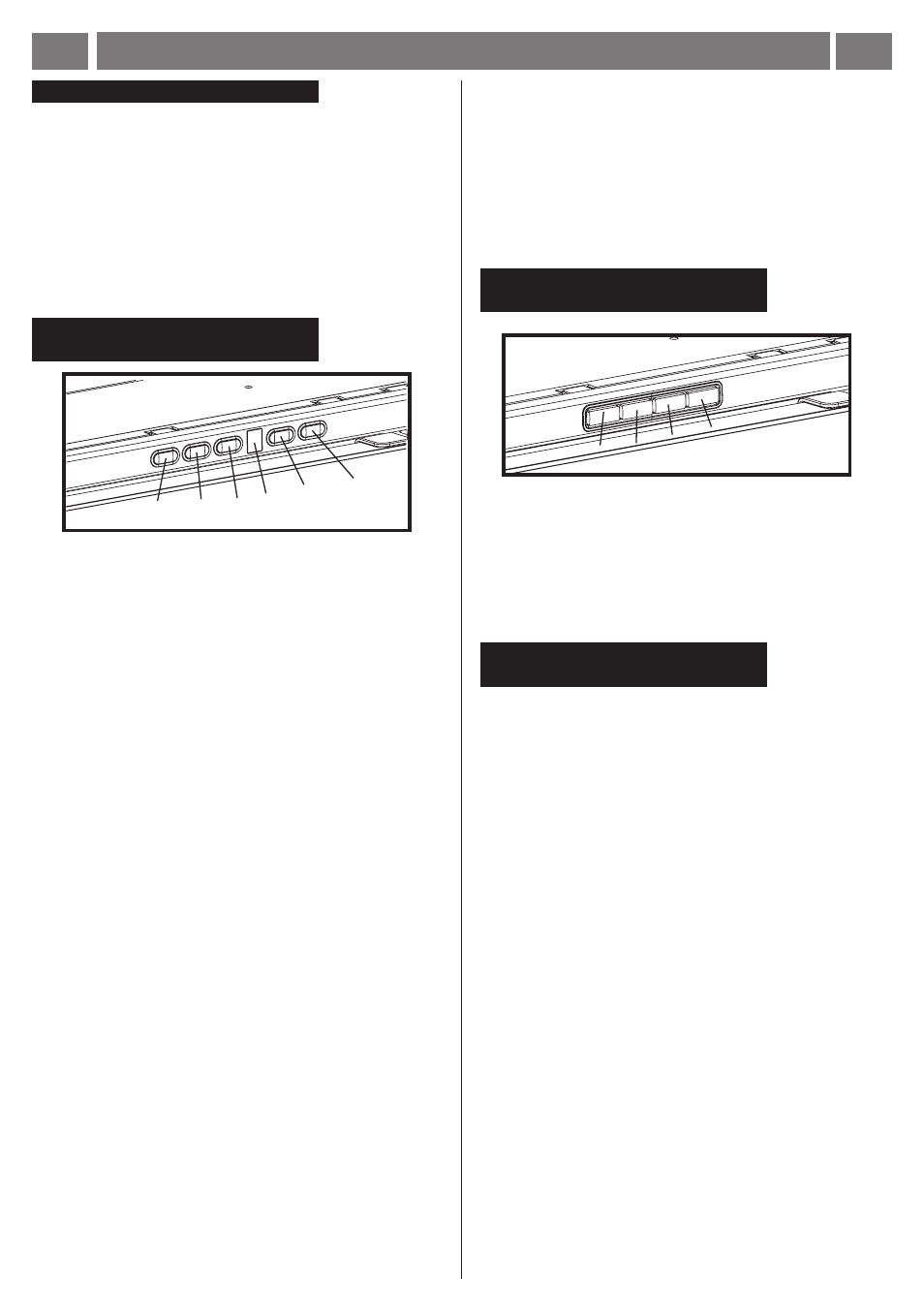

Operation –
Model with electronic controls
A - Lighting, on/off.
B - Fan off (Stand by)
C - Timer for selected speed (visualizes the speed
selected and flashing LED on the lower side of the
display).
This knob permits the operation of the cooker hood
for a established period:
20 minutes if the speed selected is 1
15 minutes if the speed selected is 2
10 minutes if the speed selected is 3
5 minutes if the intensive speed P is selected.
D - Display showing fan speed (1-3-P), change grease
filters (grease filter saturation indicator - F) and
change activated carbon filters (carbon filter saturation
indicator - C).
When the led in the lower right side is on, it indicates
that the cooker hood is ready for operation (“standby”
position), the flashing LED indicates that the timer has
been activated for selected speed.
Warning!
The active carbon filter saturation function is not activated.
In order to activate the carbon filter saturation indicator,
press buttons E and F simultaneously for 3 seconds.
Initially, only letter F will fbe displayed, then after the 3
seconds have passed, letter C will be displayed as well,
indicating that the carbon filter saturation control system is
active.
To switch off the system, re-press the same two buttons:
letter C appear on display and after 3 seconds letter it
disappear and the device will be switched off.
E - Knob to decrease the speed: from intensive speed
P to speed level 1.
F - Knob to increase (standby) speed to intensive speed
P .
Attention! Intensive speed P has a duration of 5
minutes after which the cooker hood automatically
sets the speed to level 2 (suction power).
If the hood fails to operate correctly, briefly disconnect it from
the mains power supply for almost 5 sec. by pulling out the
plug. Then plug it in again and try once more before
contacting the Technical Assistance Service.
Warning!
Always press the fan off button A before disconnecting the
hood from the mains supply.
Operation –
Model with button panel
A . on/off light switch
B . on/off aspiration switch and minimum power selection
B+C. medium power selection aspiration switch
B+D. maximum power selection aspiration switch
Operation –
All cooker hood versions
The cooker hood may be supplied with an automatic
switching on/off device.
Closing the drawer the cooker hood switches off;
opening the drawer the cooker hood switches on.
Use the high suction speed in cases of concentrated kitchen
vapours. It is recommended that the cooker hood suction
is switched on for 5 minutes prior to cooking and to leave
in operation during cooking and for another 15 minutes
approximately after terminating cooking.
INSTRUCTION ON MOUNTING AND USE
GB
A B C D
E
F
A B C
D
Electrical connection
The electrical tension must correspond to the tension noted
on the label placed inside the cooker hood. Connect the
electrical plug, where provided, to the an easily accessible
outlet in conformity with local standards in force.
Where an electrical plug is not provided (for direct connection
to electrical network) place a standards approved bipolar
switch with an aperture distance of not less than 3mm
(accessible) from the contacts.
