Instructions for the Installer
25

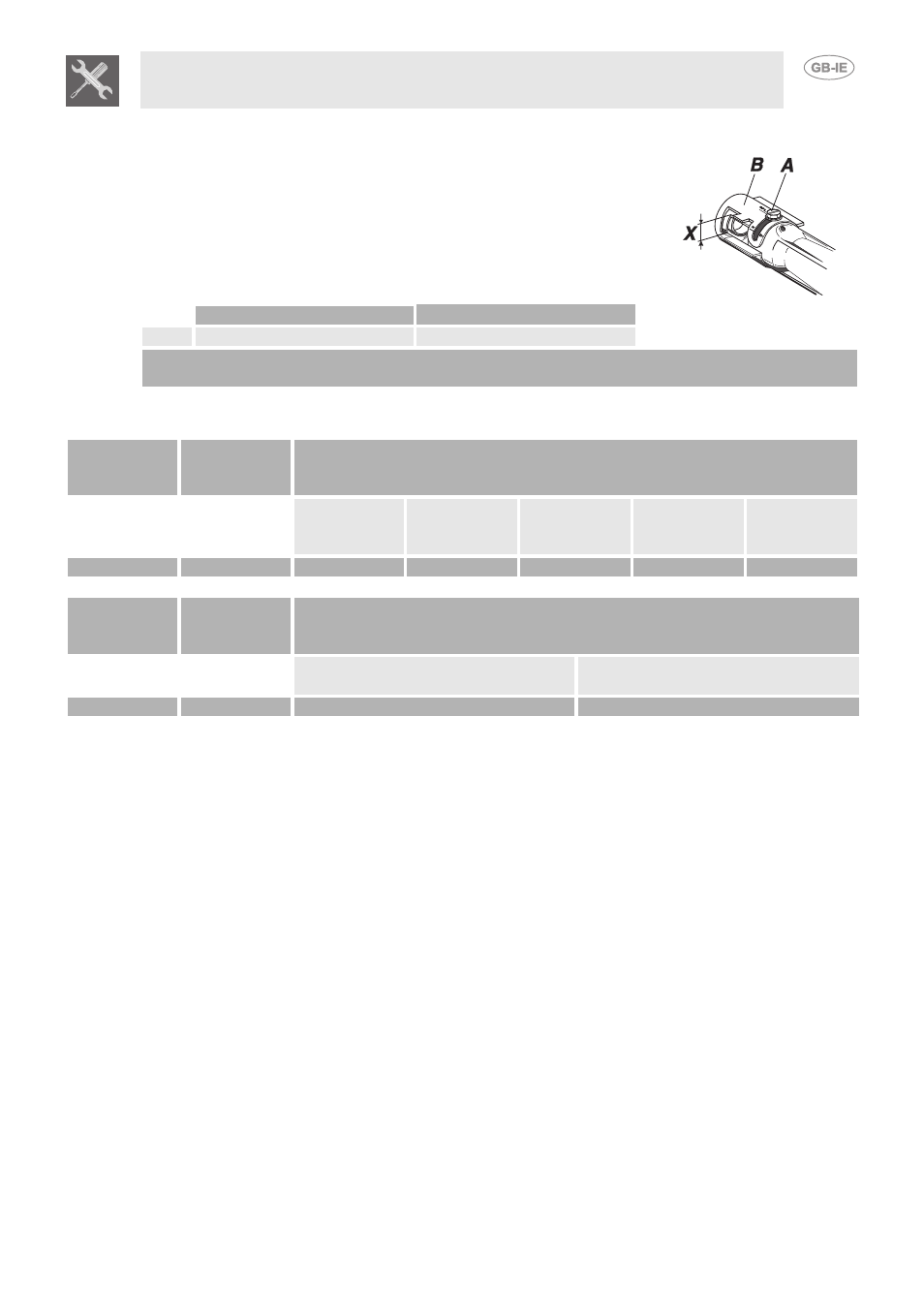

5.1.4 Adjusting the oven burner primary air flow
• Undo the adjuster screw “A” of the air regulator sleeve;
• Turn the regulator sleeve “B” into the position for the type of gas to be
used, consulting the table below;
• Tighten the adjuster screw and restore the seals;
• When the operation is complete, reassemble the burner correctly.
NATURAL GAS (N) G30/G31 (LPG)
X = 5 mm 15 mm
When the operation is complete, replace the nameplate on the back of the oven with the one
provided for the new type of gas.
5.2 Burner and Nozzle Data Tables
Burner
Rated heat
capacity
(kW)
BOTTLED GAS - G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
By-pass
1/100
mm
Reduced
heat capacity
(W)
Flow-rate
g/h G30
Flow-rate
g/h G31
Oven 2.6 77 41 700 189 186
Burner
Rated heat
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced heat capacity
(W)
Oven 2.6 118 700
