Page 6: Confidential

2-1

PCGA-DSD5/DSM5 (UC)

Confidential

CHAPTER 2.

REMOVAL

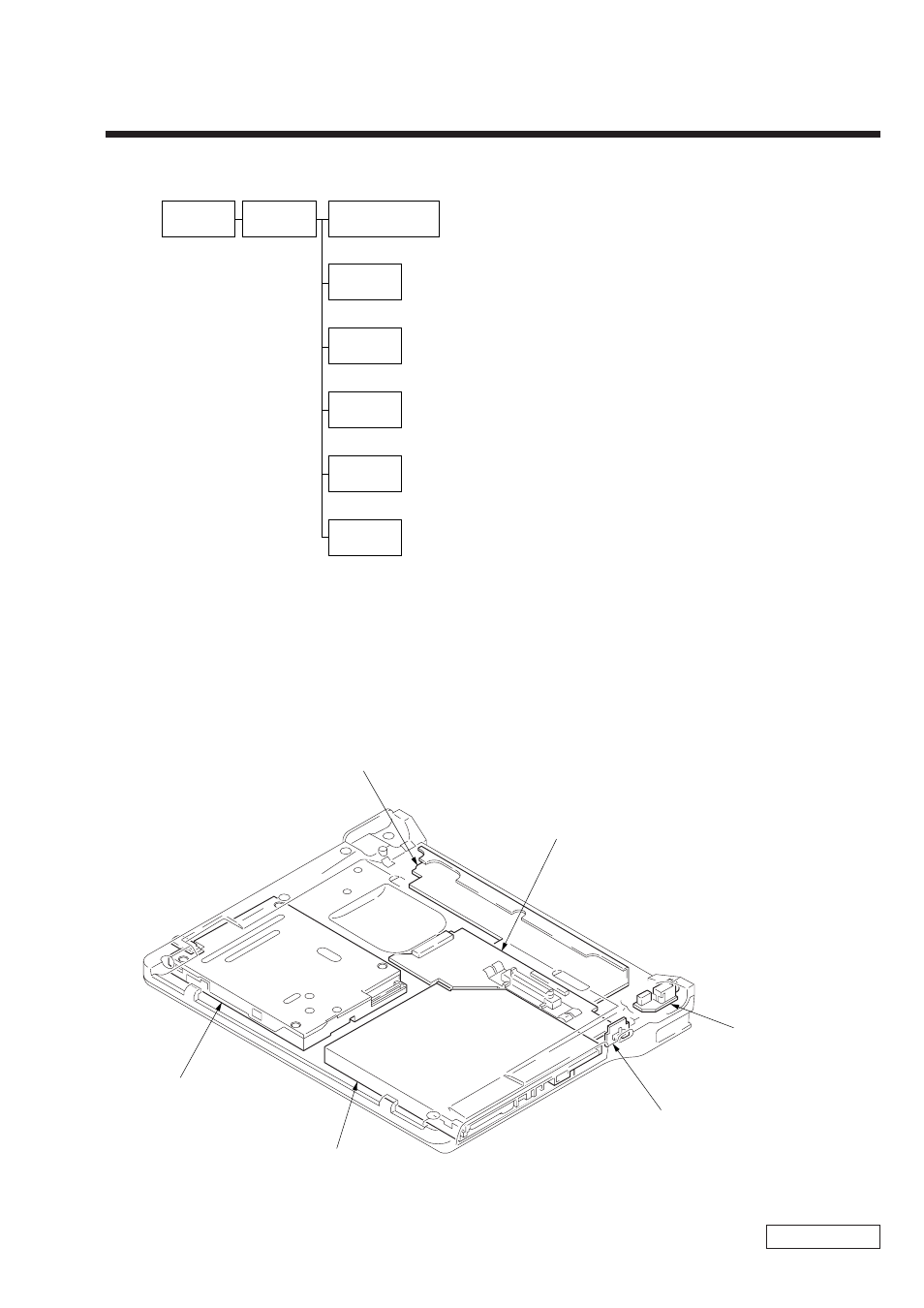

2-1. Flowchart

• P XX means pages that appears in this manual.

2-2. Main Electrical Parts Location Diagram

POWER

OFF

HOUSING

(TOP) ASSY

P 2-2

COMBO DRIVE,

DVD-ROM

P 2-2

FDD

IFX-146
BOARD

SWX-75

BOARD

P 2-3

P 2-4

CNX-132

BOARD

CNX-130

BOARD

P 2-4

P 2-5

CNX-130 Board

FDD

COMBO Drive
(PCGA-DSM5)
DVD-ROM
(PCGA-DSD5)

SWX-75 Board

CNX-132 Board

IFX-146 Board
