12
Conne
ct
ions
KD-27/32/36FS170
2-670-362-21(1)

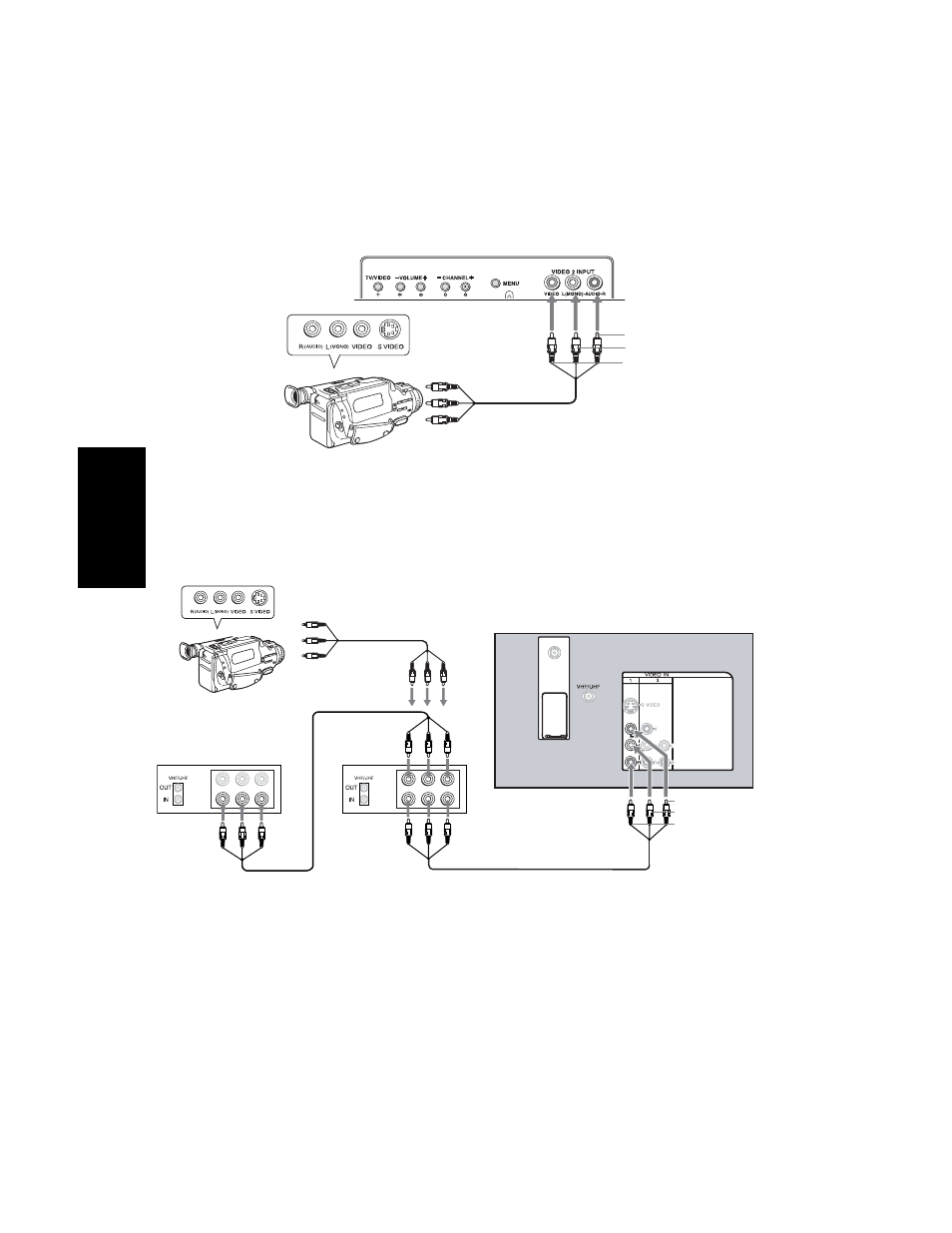

Connecting a Camcorder (for playback)
To connect your camcorder, you can use the Audio/Video inputs on either the front or rear
panel of the TV. Using the audio/video cables (not supplied), connect AUDIO/VIDEO OUT
on your camcorder to AUDIO/VIDEO IN on your TV.
Optional connection
❏ For better picture quality, use S VIDEO (located on the rear panel), instead of the yellow
video cable. S VIDEO does not provide sound, so you still must connect the audio cables.
Connecting for Video Tape Editing (VCR and Camcorder)
1 For video tape editing, connect the VCR to the following sources:
❏ If you are connecting a VCR, use audio/video cables (not supplied) to connect
AUDIO/VIDEO OUT on your first VCR to AUDIO/VIDEO IN on your second VCR
(option 1a).
❏ If you are connecting a camcorder, use audio/video cables (not supplied) to connect
AUDIO/VIDEO OUT on your camcorder to AUDIO/VIDEO IN on your VCR
(option 1b).
2
Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on the second
VCR to AUDIO/VIDEO IN on your TV.
A/V output
Audio R (red)
Audio L (white)
Video (yellow)
Front Panel
ATSC ATSC
VIDEO
LINE
IN
LINE
OUT
AUDIO L AUDIO R VIDEO
LINE
IN
LINE
OUT
AUDIO L AUDIO R
Rear of TV
Video (yellow)
Audio L (white)
Audio R (red)
2
1a
1b
A/V output
Camcorder
(for playback)
VCR (for recording)
VCR (for playback)
or
