PARTS LIST
6-38

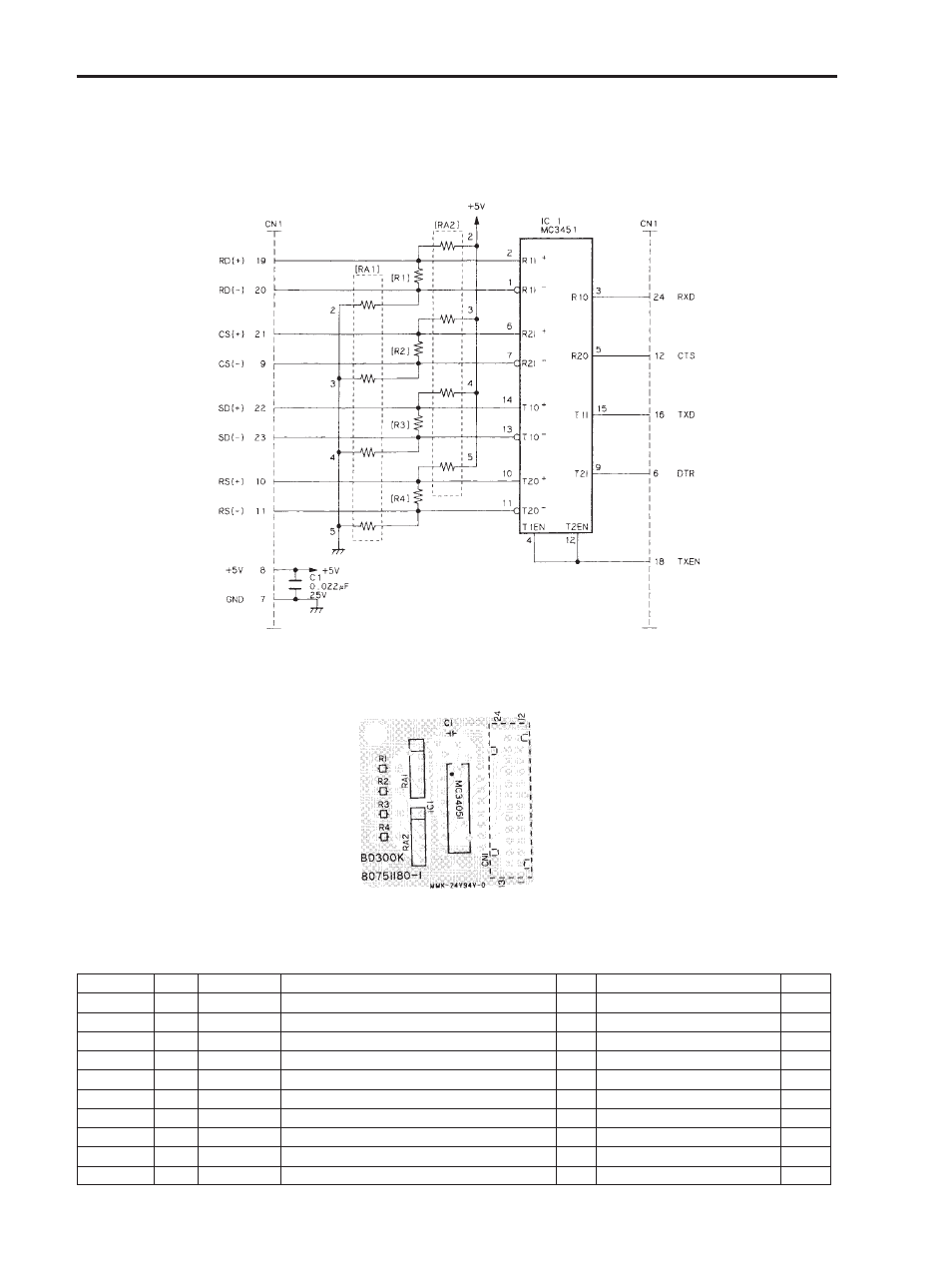

6.11 RS422 Interface Board (BD320K): option
6.11.1 Circuit Diagram
6.11.2 Component Layout
Ver. 1
DRWG.NO.
REV. PARTS NO.
PARTS NAME
Q’TY
REMARKS
RANK
IC1
08200131
IC-I/F MC34051P
1
RA1-2
NOT MOUNTED
:VER.1
R1-4
NOT MOUNTED
:VER.1
ZNR1-3
#1
NOT MOUNTED
:VER.2
ZNR4
#1
05532234
CAPACITOR 0.022UF 25V
1
:VER.2
ZNR5-11
#1
NOT MOUNTED
:VER.2
ZNR12
#1
05532234
CAPACITOR 0.022UF 25V
1
:VER.2
C1
05532234
CAPACITOR 0.022UF 25V
1
CN1
09100430
CONNECTOR IL-W24S-SD
1
HOLE
09990513
BOARD SPACER DSPLS-10
1
6.11.3 Parts List
