Swisher POL 10550 - Manual (Page 15)

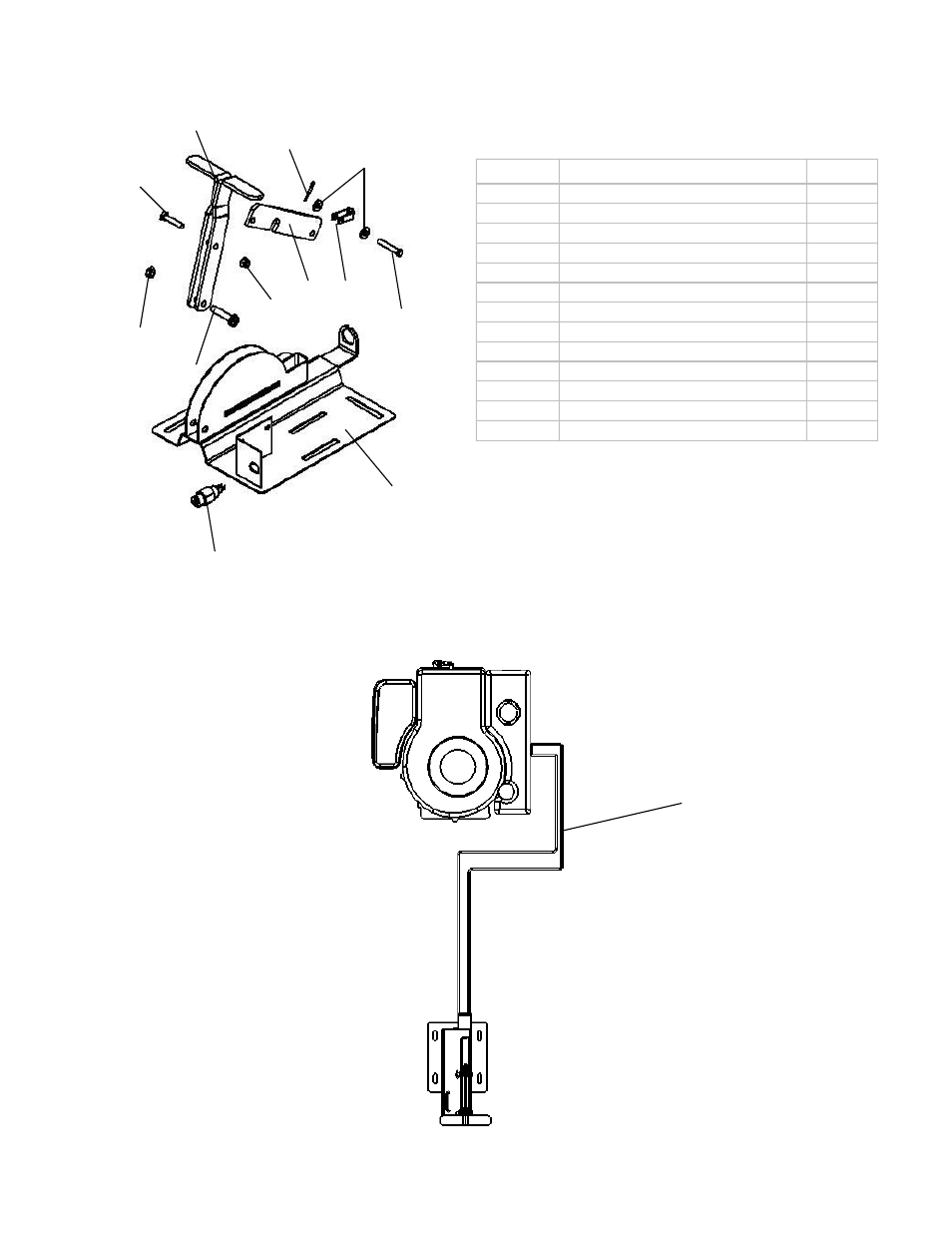

Console Assembly
Wiring Diagram
Figure 7
Figure 8
WHBP50
(Complete Wiring
Harness)
Item No. Description Part #
1 Console Weldment 5136TK
2 Clutch Cable Clevis 9023
3 T Handle 4463TK
4 Link for Console 4461TK
5 5/16-18 X 1 1/2 Torx Pan ZP NB-591
6 1/4 SAE Washer NB-274
7 1/4 X 1 1/2 Clevis Pin NB-518
8 3/32 X 3/4 Cotter Pin NB-597
9 5/16-18 Jam Nut NB-173
10 1/4-20 X 1 1/4 HCC GR5 ZP NB-560
11 1/4-20 Nylok Nut NB-180
12 Key Switch KSM
Not Shown Wiring Harness WHBP50
15
1
12
7
2
6
4
11
8
3
10
5
9
