128-7266A
6 of 12

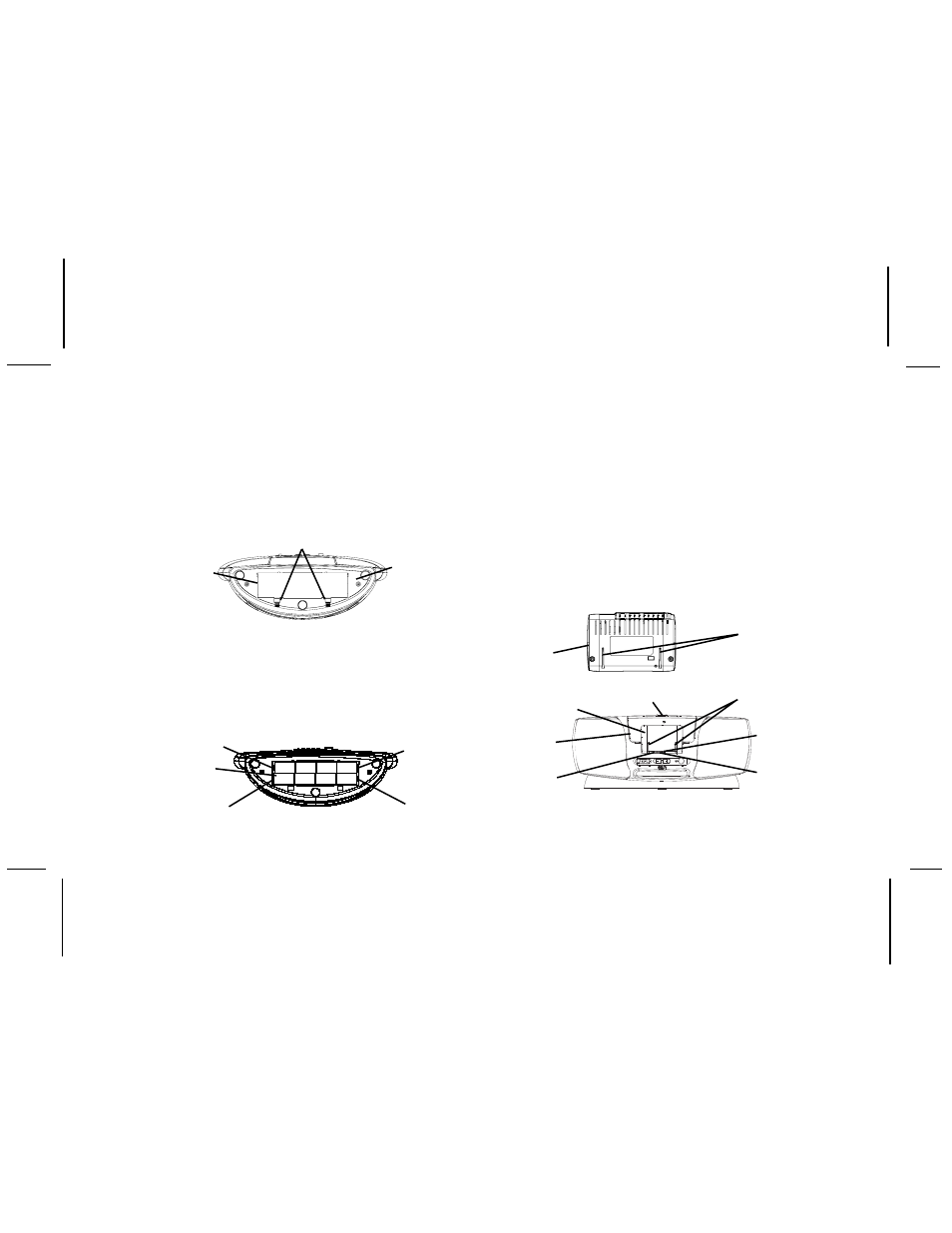

1. Turn the Boom Box upside down to access
the battery compartment.
2. Push the battery cover latches forward and flip
up the battery compartment cover to the open
position.
3. Insert eight (8) D-Cell batteries observing
battery polarity as shown; then close the cover.
3. Installing the Shuttle in the SIR-BB3
Install the shuttle as follows:
1. Press the EJECT button at the top of the SIR-BB3 to
open the spring-loaded cover. Carefully line up the
shuttle rear spine grooves with the Boom Box guide
spines; lower the shuttle into the Boom Box.
-6-
2. Cabling Interconnections
You can begin to enjoy Sirius® Satellite Radio
as soon as the Shuttle and Boom Box Kit
installation are complete. Set up your Audiovox
SIR-BB3 by following the interconnect diagram.
NOTE: The batteries are bypassed automatically
whenever the supplied AC Adapter is
plugged into the DC 12V jack on the back
panel.
BATTERY
COMPARTMENT
(COVER REMOVED)
NEGATIVE
POSITIVE NEGATIVE
POSITIVE
1. Battery Installation
Your Boom Box can operate independently of AC
power by installing 8 D-Cell batteries as follows:
BATTERY
COMPARTMENT
COVER
BOTTOM OF
BOOM BOX
COVER LATCHES
SHUTTLE
REAR VIEW
SHUTTLE REAR
SPINE
GROOVES
AUDIO OX
SIR-BB3 GUIDE
SPINES
PNP COVER
SHUTTLE
COMPARTMENT
CONNECTOR
GUIDE PIN
20-PIN
SYSTEM
CONNECTOR
EJECT BUTTON
SAT
CONNECTOR
