W
EIGHT
B
ELT
I
NSPECTION
R
EQUIREMENTS
WARNING: REPLACE WORN WEIGHT BELTS IMMEDIATELY. FAILURE TO COMPLY CAN RESULT IN HAZ-
ARDOUS CONDITIONS FOR USERS OR OTHER BYSTANDERS.

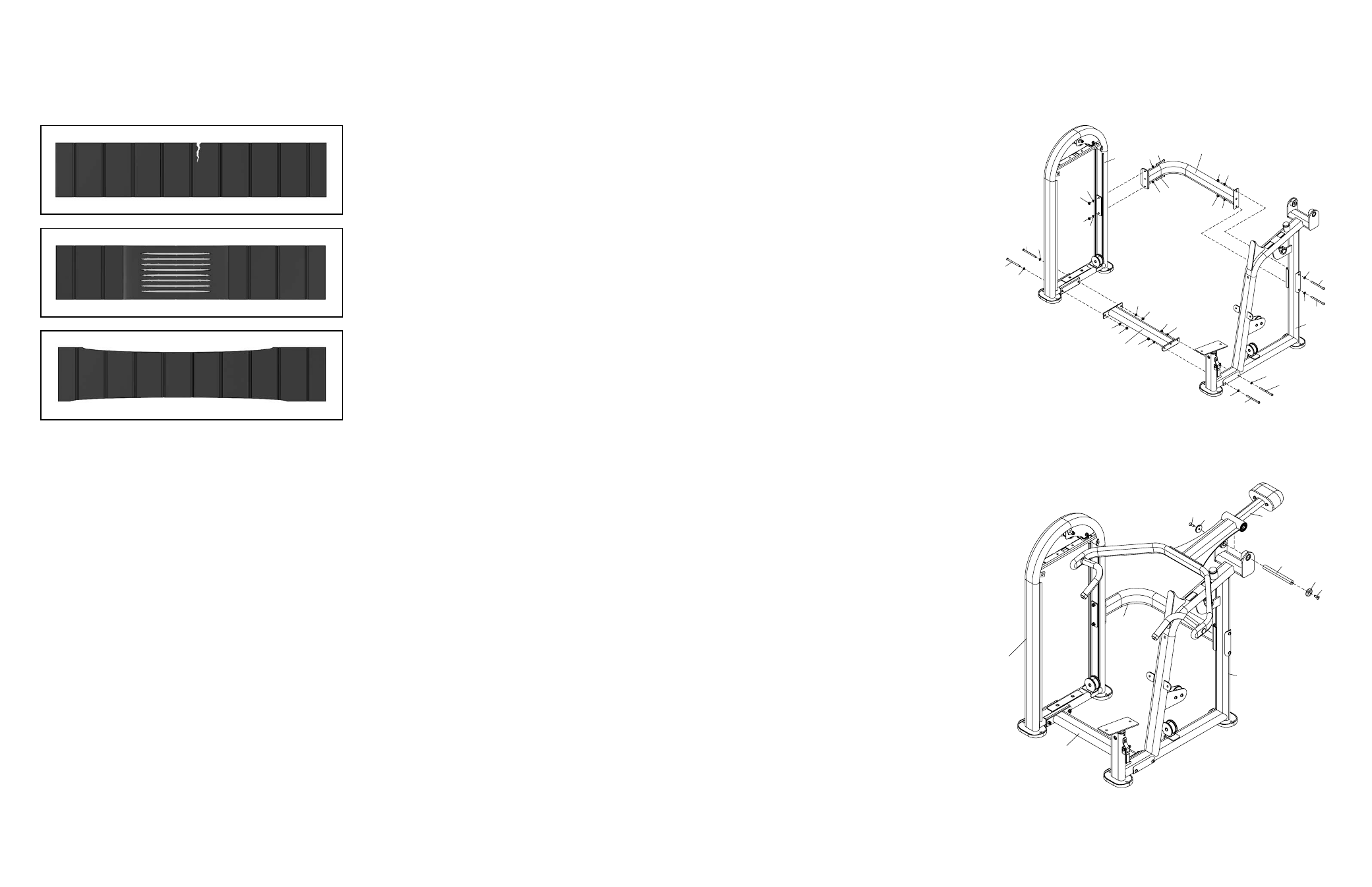

Inspect all weight belts for evidence of excessive wear or other damage. Give particular attention to the following conditions:
■ Torn or cracked belt
■ Exposed belt cords
■ Worn edges
ASSEMBLY
1. Assemble the Main Frame to the
Weight Frame
Align the two drilled holes in the lower cross-
beam (6) with the mating holes in the bottom
of the weight stack frame (1). Secure the
crossbeam to the weight frame using two
screws (35), four washers (51), and two lock
nuts (48). Tighten the nuts securely.
Align the two drilled holes in the upper cross-
beam (2) at the "short leg" with the mating
holes in the side beam of the weight stack
frame (1). Secure the crossbeam to the weight
frame using two screws (37), four washers (51),
and two lock nuts (48). Tighten the nuts
securely.
Position the main frame (3) so the two drilled
holes in the lower crossbeam (6) and the two
drilled holes in the upper crossbeam (2) are
aligned with the mating holes in the main
frame.
Secure the main frame to the lower crossbeam
using two screws (35), four washers (51), and
two lock nuts (48). Tighten the nuts securely.
Secure the main frame to the upper crossbeam
using two screws (35), four washers (51), and
two lock nuts (48). Tighten the nuts securely.
2. Install the Leverage Arm
NOTE: Two people are required to install the
leverage arm; one to hold the leverage arm in
position, and one to install the leverage arm
shaft.
Hold the leverage arm (5) in position between
the two shaft support bearings.
Insert the leverage arm shaft (13) through the
leverage arm and both support bearings.
Secure the leverage arm shaft (13) to the main
frame (3) using two screws (42) and end caps
(15).
Rotate the leverage arm down until it rests
against the stop on the main frame.
STAR TRAC INSTINCT SHOULDER PRESS O WNER ’ S M ANUAL 7 14 STAR TRAC INSTINCT SHOULDER PRESS O WNER ’ S M ANUAL
51
35
51
35
51
35
3
35
51
48
6
48
51
51
48
48 51
35
51
35 51
51
48
48
51
1
51
36
51
36
2
48 51
48 51
51
6
2
1
3
42
15
13
42 15
5
