Page 15

5
●
Menu Setup
●
Lens Setting
1. Press the Function Setup switch.
- Main setup menu is displayed on the monitor screen.
1. Preset : INDOOR / OUTDOOR / LOW LIGHT / HALLWAY / LOBBY / ELEVATOR.
- Used for a quick and easy setup for the installation environment.
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select 'LENS' by using
the Function Setup switch so that the arrow indicates 'LENS'.
2. DC : You can adjust the minimum shutter and maximum value of ESC
shutter mode.
2. Select a desired function using the Function Setup switch.
- Place the cursor over a desired item.
3. Set up a selected item by using the Function Setup switch.
4. To finish the setting, select 'RETURN' and press the Function Setup switch.
●

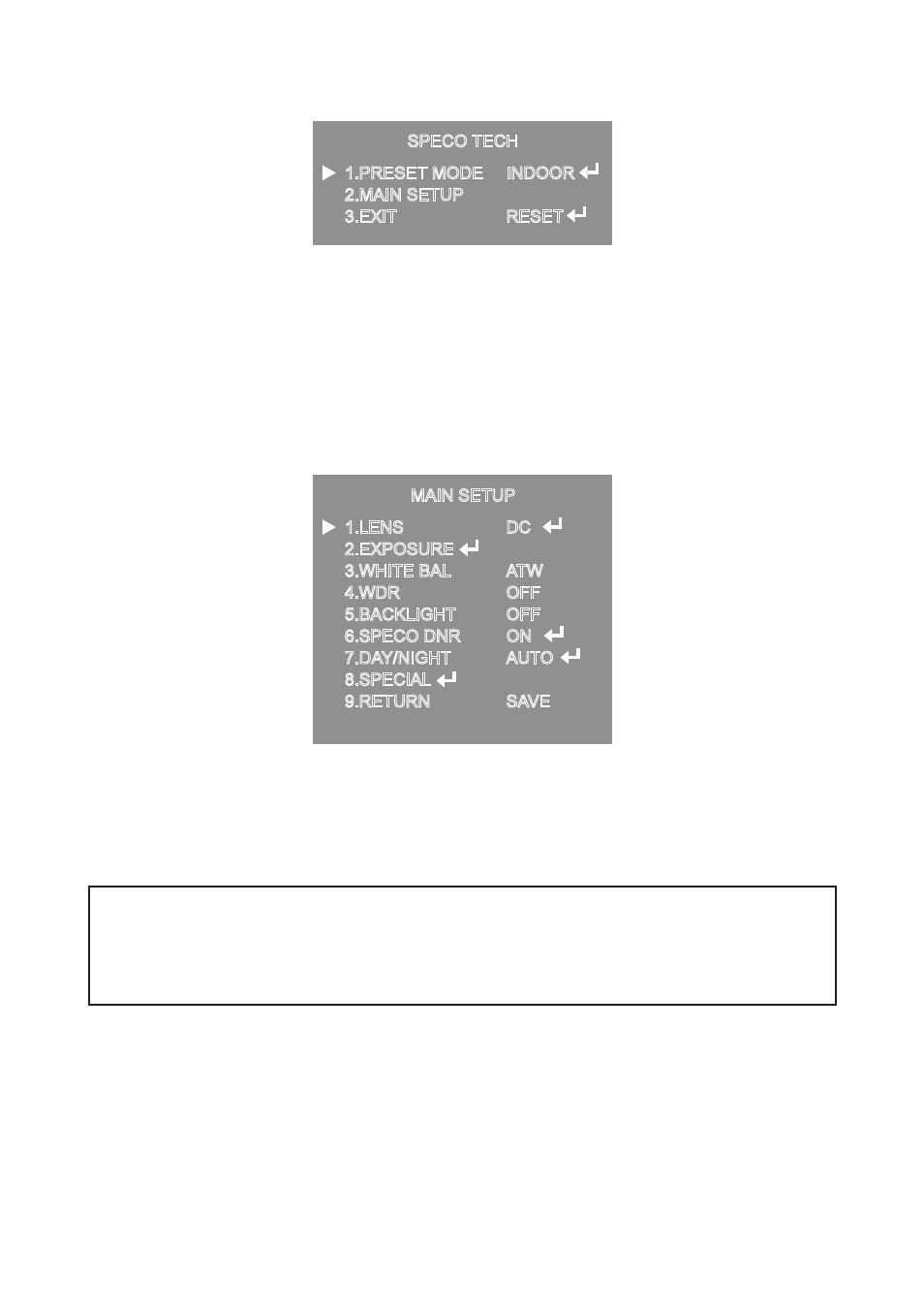

Preset Mode
SPECO TECH
1.PRESET MODE
2.MAIN SETUP
3.EXIT
INDOOR
RESET
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.WDR
5.BACKLIGHT
6.SPECO DNR
7.DAY/NIGHT
8.SPECIAL
9.RETURN
DC
ATW
OFF
OFF
ON
AUTO
SAVE
☞
NOTE
■ An item with the
◀
icon also has sub menus. To select a sub menu, select an item
with the icon and press the Function Setup switch.
■ An item with the - - - icon is unavailable due to function settings.
